UHVP804 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UHVP804

UHVP804: DescriptionRECTIFIERS; CategoryDiscrete semiconductor diode; File Size54KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UHVP804 Overview

RECTIFIERS

UHVP804 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LEAKAGE CURRENT IS TYPICAL
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	TO-220
JESD-30 code	R-PSFM-T2
JESD-609 code	e0
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
technology	AVALANCHE
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

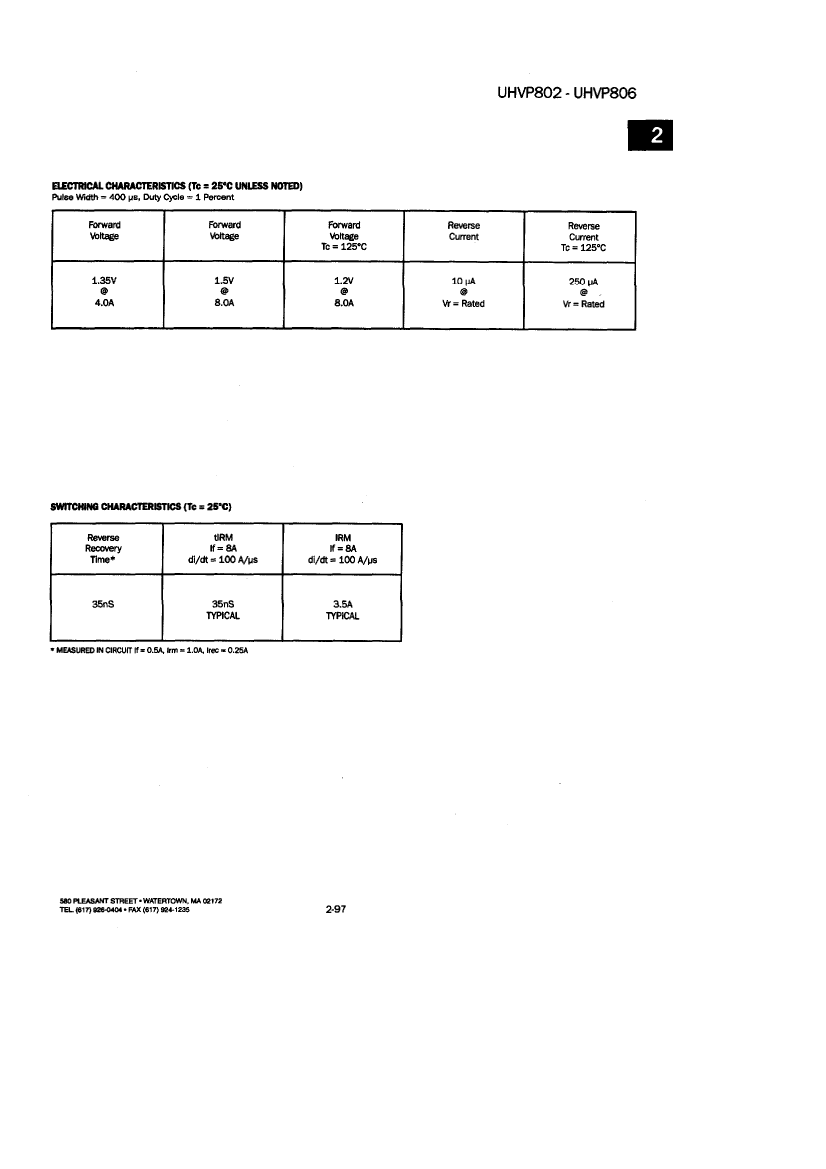

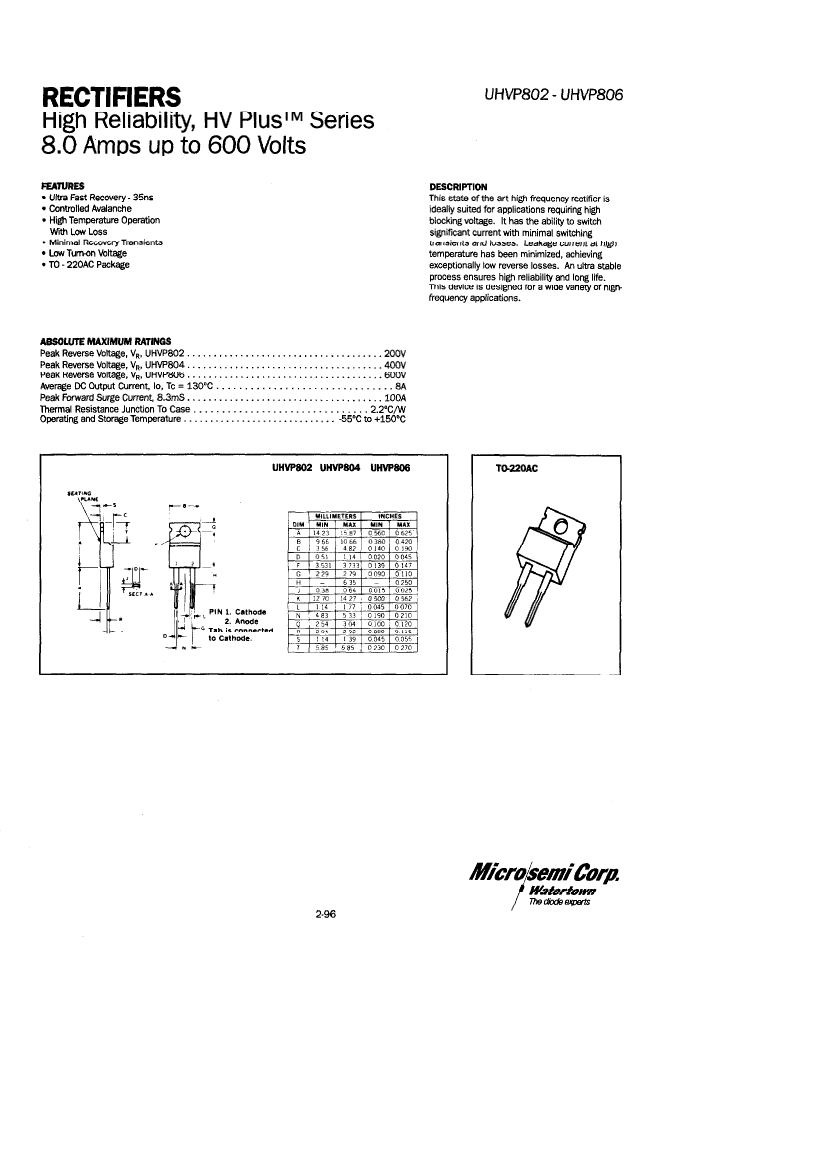

Preview

Download Datasheet

View All

UHVP804 Related Products

	UHVP804	UHVP806	UHVP802
Description	RECTIFIERS	RECTIFIERS	RECTIFIERS
Is it lead-free?	Contains lead	Contains lead	Lead free
Is it Rohs certified?	incompatible	incompatible	conform to
Maker	Microsemi	Microsemi	Microsemi
Reach Compliance Code	unknow	unknow	compli
ECCN code	EAR99	EAR99	EAR99
Other features	LEAKAGE CURRENT IS TYPICAL	LEAKAGE CURRENT IS TYPICAL	LEAKAGE CURRENT IS TYPICAL
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V	1.5 V	1.5 V
JEDEC-95 code	TO-220	TO-220	TO-220
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	100 A	100 A	100 A
Number of components	1	1	1
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
JESD-609 code	e0	e0	-
Terminal surface	TIN LEAD	TIN LEAD	-
