86092646124H55000E2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 86092646124H55000E2

86092646124H55000E2: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size144KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86092646124H55000E2 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle

86092646124H55000E2 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

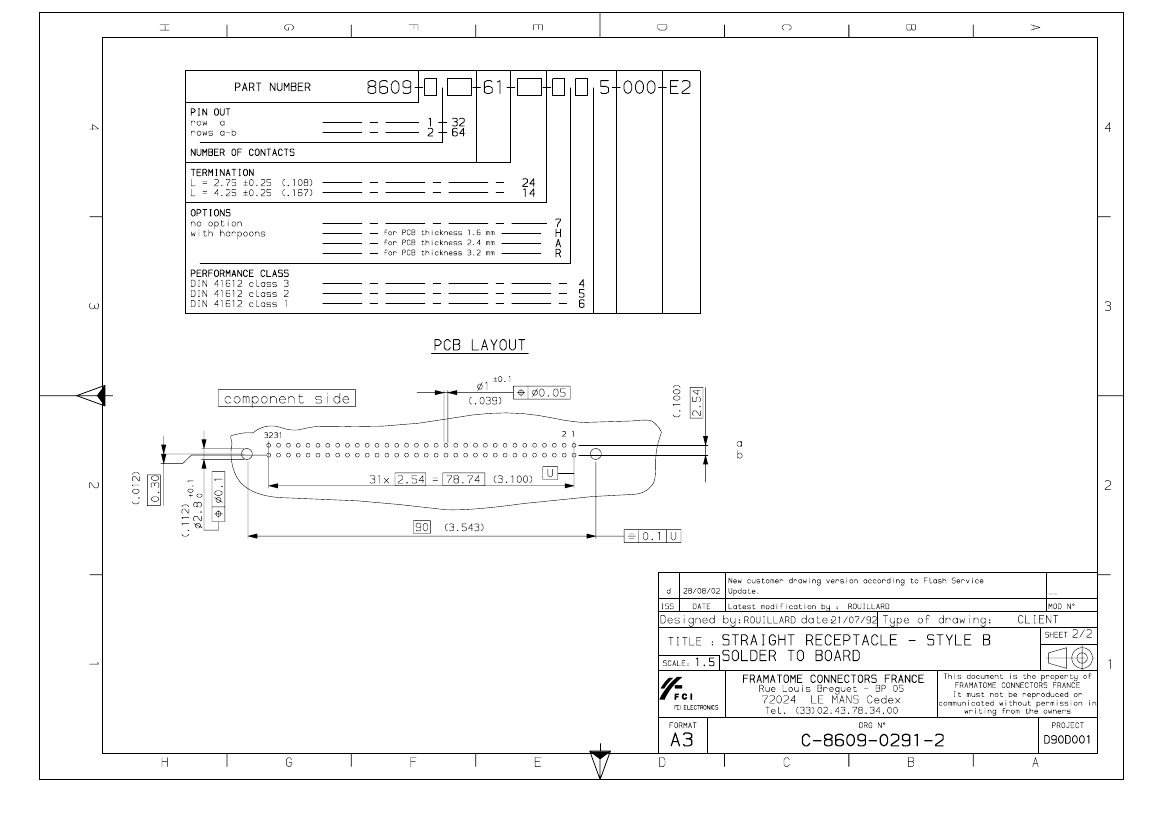

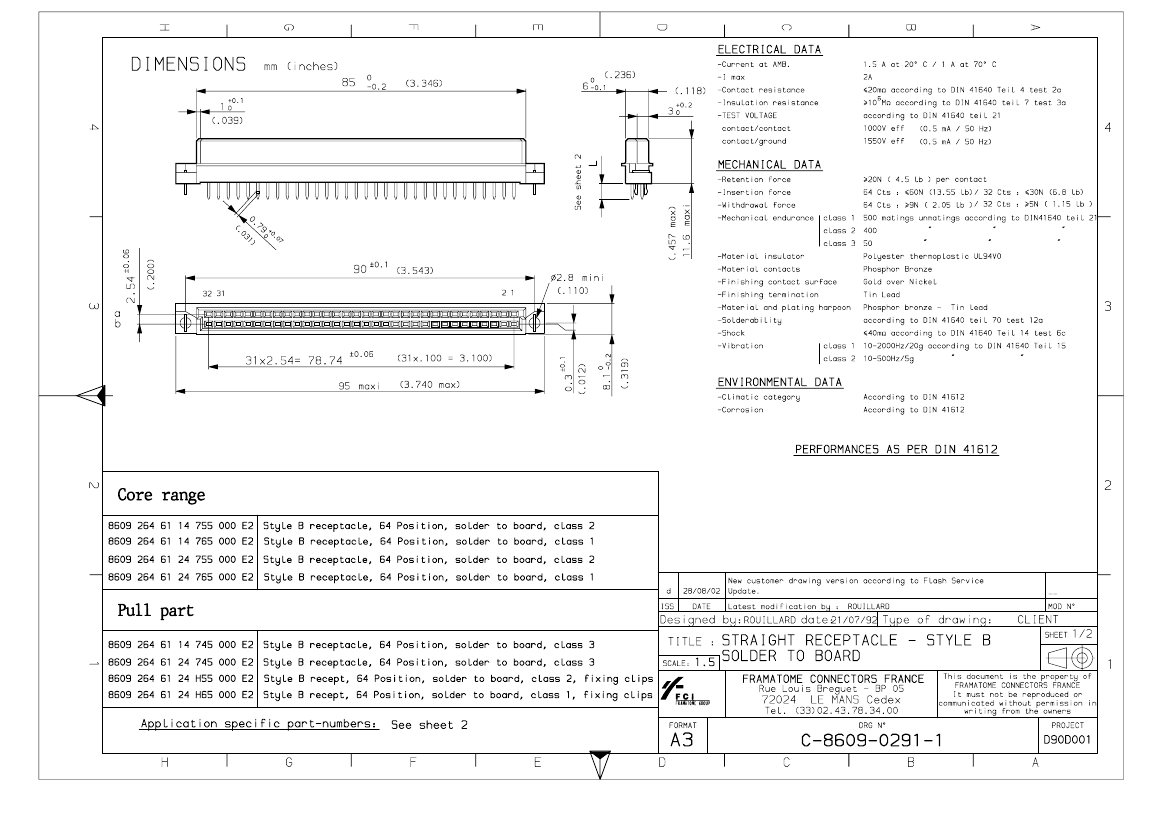

Preview

Download Datasheet

View All

PDM: Rev:D

STATUS:

Released

Printed: Sep 30, 2005

86092646124H55000E2 Related Products

	86092646124H55000E2	86092646124765000E2	86092646114745000E2	86092646114755000E2	0855115002_18	86092646124745000E2	86092646124755000E2	86092646124H65000E2
Description	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Modular Jack, Cat5e, Vertical, Top Entry, Through Hole, 8/8, Short Top, Low Profile	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	-	-	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	-	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	-	YES	YES	YES
Filter function	NO	NO	NO	NO	-	NO	NO	NO
IEC compliance	NO	NO	NO	NO	-	NO	NO	NO
MIL compliance	NO	NO	NO	NO	-	NO	NO	NO
Manufacturer's serial number	8609	8609	8609	8609	-	8609	8609	8609
Mixed contacts	NO	NO	NO	NO	-	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	-	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER
Total number of contacts	64	64	64	64	-	64	64	64
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	-	1	1	-
