ZMR45C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ZMR45C

ZMR45C: DescriptionSingle Color LED; CategoryLED optoelectronic/LED photoelectric; File Size126KB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZMR45C Overview

Single Color LED

ZMR45C Parametric

Parameter Name	Attribute value
Maker	SUNLED
Reach Compliance Code	unknown
ECCN code	EAR99
Optoelectronic device types	SINGLE COLOR LED

Preview

Download Datasheet

View All

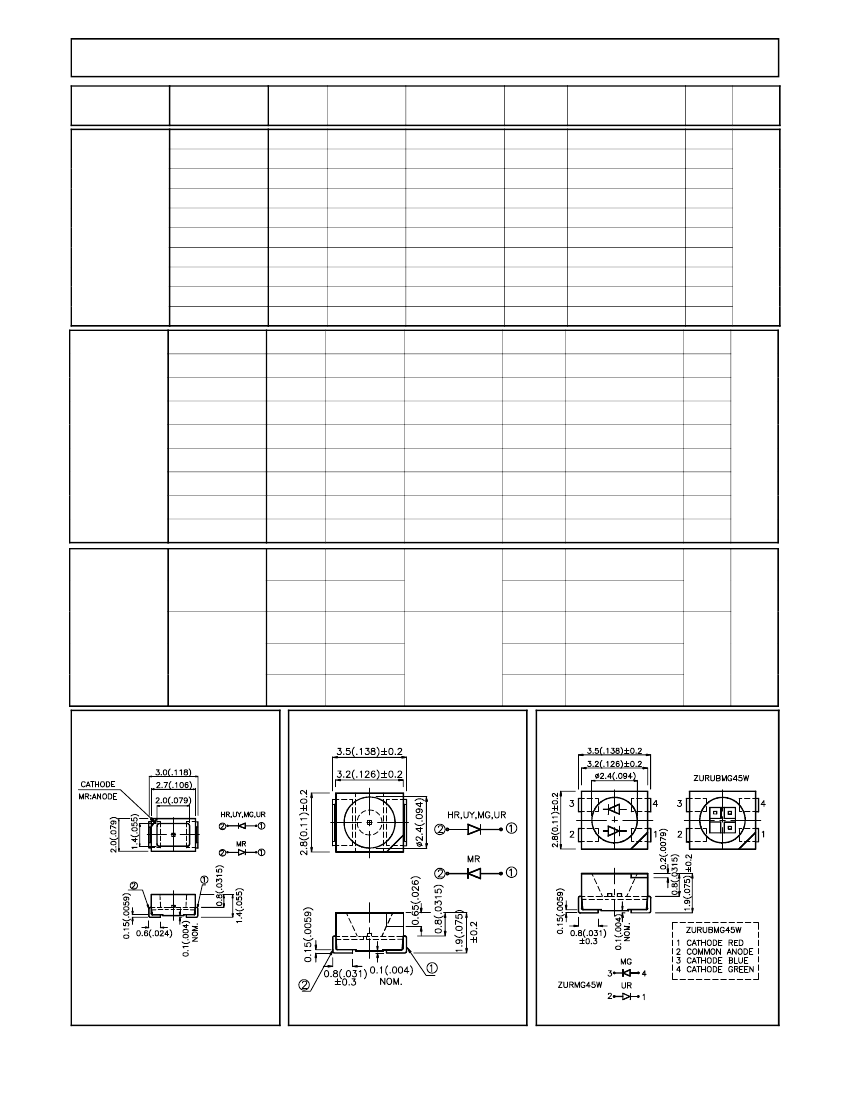

Surface Mount LEDs

Shape

3.0mmX2.0mm

Part Number

Emitting

Color

Emitting

Material

Lens-Color

Wave

Length

(nm)

Luminous Intensity

IF=20mA(mcd)

Min.

Max.

Viewing

Angle

Figure

No.

ZHR50C

ZHR50W

ZUR50C

ZUR50W

ZMR50C

ZMR50W

ZMG50C

ZMG50W

ZUY50C

ZUY50W

Red

Green

Yellow

Red

Green

Yellow

GaP

GaAsP/GaP

GaAlAs

GaP

GaAsP/GaP

GaP

GaAsP/GaP

GaAlAs

GaP

GaAsP/GaP

Red Trans.

Water Clear

Red Trans.

Water Clear

Red Trans.

Water Clear

Green Trans.

Water Clear

Yellow Trans.

Water Clear

Red Trans.

Water Clear

Red Trans.

Water Clear

Green Trans.

Water Clear

Yellow Trans.

Water Clear

700

625

660

565

590

700

625

660

565

590

1-4

8 - 60

70 - 300

8 - 40

1 - 3.2

12.5 - 40

70 - 300

8 - 20

12.5 - 40

90°

120°

3.5mmX2.8mm

ZHR45C

ZUR45C

ZUR45W

ZMR45C

ZMR45W

ZMG45C

ZMG45W

ZUY45C

ZUY45W

3.5mmx2.8mm

Red

ZURMG45W

GaAsP/GaP

Water Clear

625

12.5 - 40

120°

Green

GaP

565

12.5 - 40

Red

GaAlAs

660

12.5 - 40

120°

ZURUBMG45W

Blue

GaN

Water Clear

430

12.5 - 40

Green

GaP

565

2-8

Package Dimensions Units :mm

Tolerance : .25mm (0.01")

ZMR45C Related Products

	ZMR45C	ZUY50C	ZURMG45W	ZMR50W	ZUR50W	ZMG45W	ZUR45C
Description	Single Color LED	Single Color LED,	Dual Color LED, Red/green, Water Clear, 2.4mm, 3.50 X 2.80 MM, SMD, 2 PIN	Single Color LED, Red, Water Clear, 2mm, 3 X 2 MM, SMD, 2 PIN	Single Color LED, Red, Water Clear, 2mm, 3 X 2 MM, SMD, 2 PIN	Single Color LED, Green, Water Clear, 2.4mm, 3.50 X 2.80 MM, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED,
Maker	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	unknow	compli
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
package instruction	-	-	3.50 X 2.80 MM, SMD, 2 PIN	3 X 2 MM, SMD, 2 PIN	3 X 2 MM, SMD, 2 PIN	3.50 X 2.80 MM, ROHS COMPLIANT, SMD, 2 PIN	-
color	-	-	RED/GREEN	RED	RED	GREEN	-
Configuration	-	-	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SINGLE	-
Maximum forward current	-	-	0.03 A	0.03 A	0.03 A	0.025 A	-
Lens type	-	-	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	-
Nominal luminous intensity	-	-	29.0/23.0 mcd	115.0 mcd	19.0 mcd	24.0 mcd	-
Installation features	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Number of functions	-	-	1	1	1	1	-
Number of terminals	-	-	4	2	2	2	-
Maximum operating temperature	-	-	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-	-	-40 °C	-40 °C	-40 °C	-40 °C	-
total height	-	-	1.9 mm	1.3 mm	1.3 mm	1.9 mm	-
method of packing	-	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-
peak wavelength	-	-	627/565 nm	660 nm	627 nm	565 nm	-
shape	-	-	ROUND	RECTANGULAR	RECTANGULAR	ROUND	-
size	-	-	2.4 mm	2 mm	2 mm	2.4 mm	-
surface mount	-	-	YES	YES	YES	YES	-
Terminal pitch	-	-	2.8 mm	2.8 mm	2.8 mm	3.1 mm	-
perspective	-	-	120 deg	90 deg	90 deg	120 deg	-
