XZBG55W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XZBG55W

XZBG55W: DescriptionSingle Color LED, Green, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size86KB，3 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XZBG55W Overview

Single Color LED, Green, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN

XZBG55W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	115.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	BULK
peak wavelength	520 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	120 deg

Preview

Download Datasheet

View All

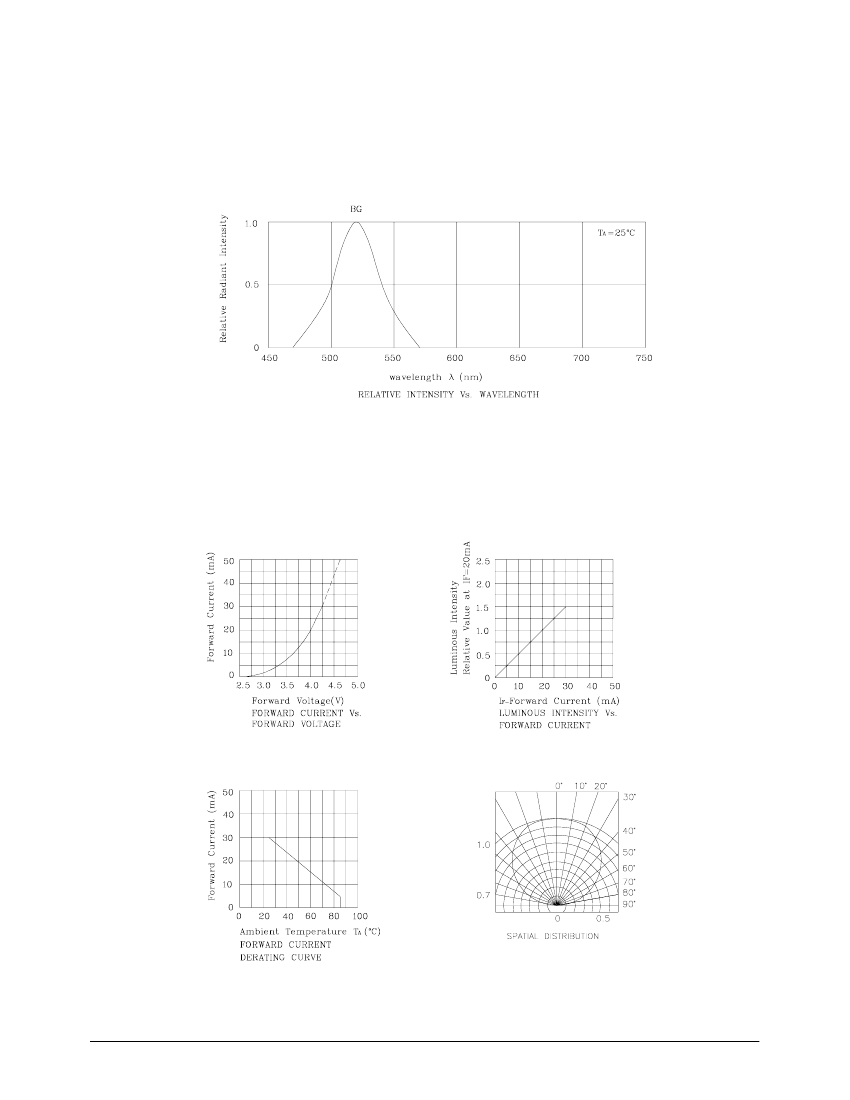

3.2x1.6mm SMD CHIP LED LAMP

XZBG55W

SUNLED

: sales@us.sunled.com

Web Site : www.sunled.com

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.2(0.0079")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

( T

=25

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operating temperature

Storage temperature

Tstg

( I n G a N)

150

105

-40 ~ +85

Un i t

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

=25

Forward voltage (typ.)

(I F=20mA)

Forward voltage (max.)

(I F=20mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=20mA)

Wavelength at Dominate

emission

(I F=20mA)

Spectral Line half-width

(I F=20mA)

Capacitance

(VF=0V, f=1MHz)

( I n G a N)

Un i t

°C

4.0

4.5

peak

520

λD

525

∆λ

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 20m A )

mc d

min .

ty p .

115

Wa v e l e n g t h

Vi e w i n g

An g l e

2θ1/2

XZBG55W

Green

I nGaN

Water Clear

520

120°

Published Date : OCT 19,2002

Drawing No: XDSA1306

Checked :B.L.LIU

3-1

Recommended Resources

Do you know about the new RF vector signal generator?

Guest arrival signal recognition circuit

Micro DC motor steady speed control circuit a

Common mode signal emitter coupling differential amplifier circuitb

Use BH-SK-1 to make non-contact infrared light switch

M50110P/AP/BP/CP (VCR, TV and audio equipment) 30-function infrared remote control transmitter circuit

Kinetis-K40FreeRTOS_V7.1.0 transplantation learning record (Part 3): 3. Define the prvSLCDDisplayTask functionstaticvoidprvSLCDDisplayTask(void*pvParameters){ portTickTypexLastWakeTime; const portTickType xFrequency = 1000; //Define the required frequencyxLastWakeTime ...; bluehacker NXP MCU

Tetris based on PROTEUS: [i=s] This post was last edited by paulhyde on 2014-9-15 09:43 [/i] Tetris based on PROTEUS [[i] This post was last edited by open82977352 on 2010-9-17 08:37 [/i]]...; xfh168168 Electronics Design Contest

The late arrival of RFID standards has made people more worried about safety risks: [font=Times New Roman]"We are solving the problem of mass production of RF-SIM cards. We believe that within this year, we will gradually carry out large-scale testing of RF-SIM cards, so that the pub...; FPGA/CPLD

About RTCC and timer functions of PIC32MX320F128L microcontroller: Hello, experts: I recently made a monitoring system and chose the PIC32MX320F128L microcontroller: The timing requirements are as follows: 1.1. After the system has been in continuous main power opera...; lei619lei Microchip MCU

TI's commonly used DSP chips can be summarized into three series:: The TMS320C2000 series, called DSP controller, integrates flash memory, high-speed A/D converter, reliable CAN module and peripheral modules for digital motor control. It is suitable for control field...; 灞波儿奔 DSP and ARM Processors

PAL format images are digitally processed and displayed on a small LCD screen: I want to convert the PAL video signal into digital after passing through the video AD, and then display it on a small 2.4-inch LCD. However, I don't know much about images, but I really want to do it...; gsy FPGA/CPLD
