Z87L1612PSC datasheet, PDF - EEWORLD Datasheet

Z87L1612PSC: DescriptionMicrocontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP18, DIP-18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size215KB，9 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

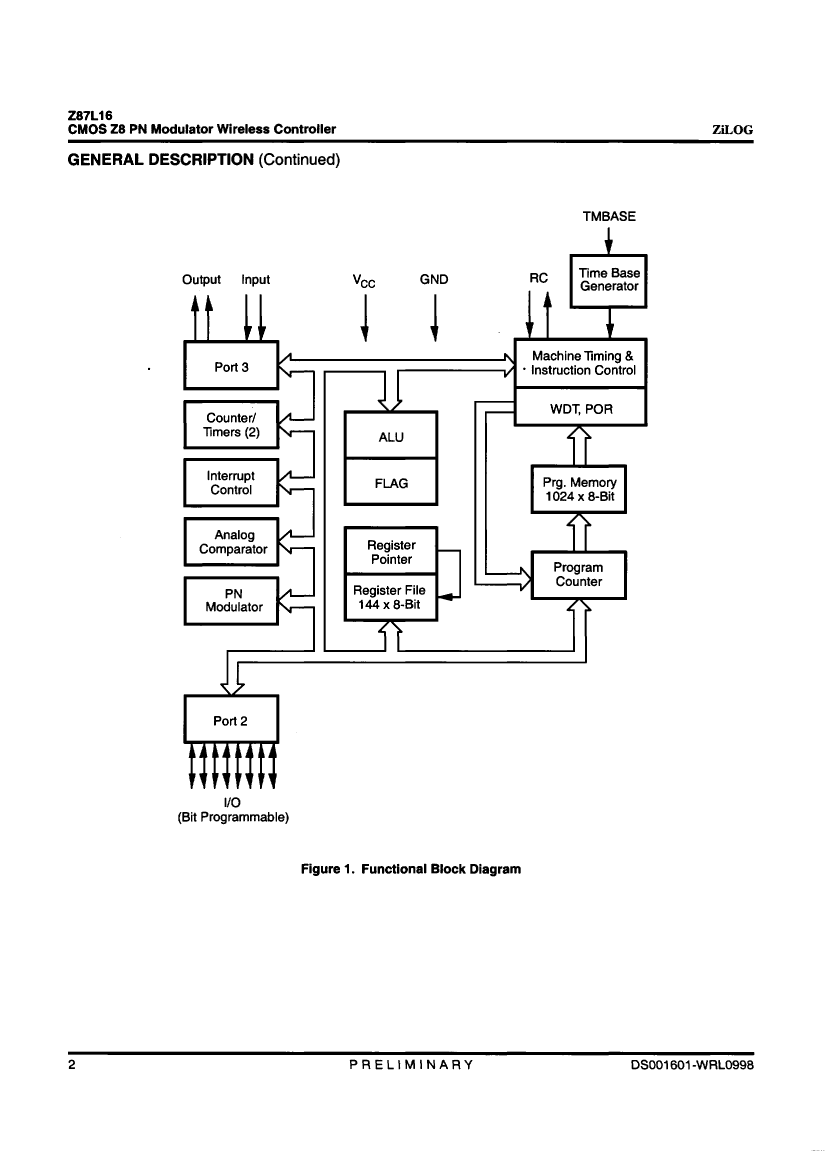

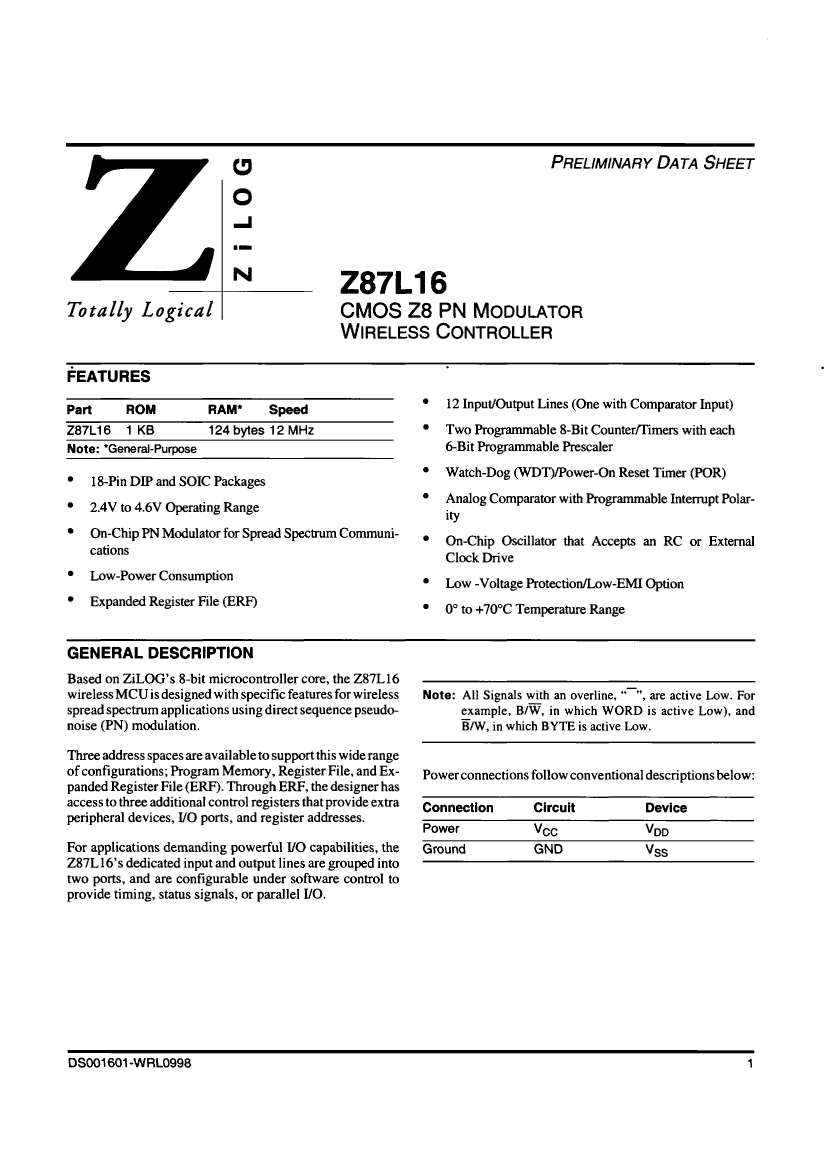

Z87L1612PSC Overview

Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP18, DIP-18

Parameter Name	Attribute value
Maker	Zilog, Inc.
Parts packaging code	DIP
package instruction	DIP,
Contacts	18
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T18
length	22.86 mm
Number of I/O lines	12

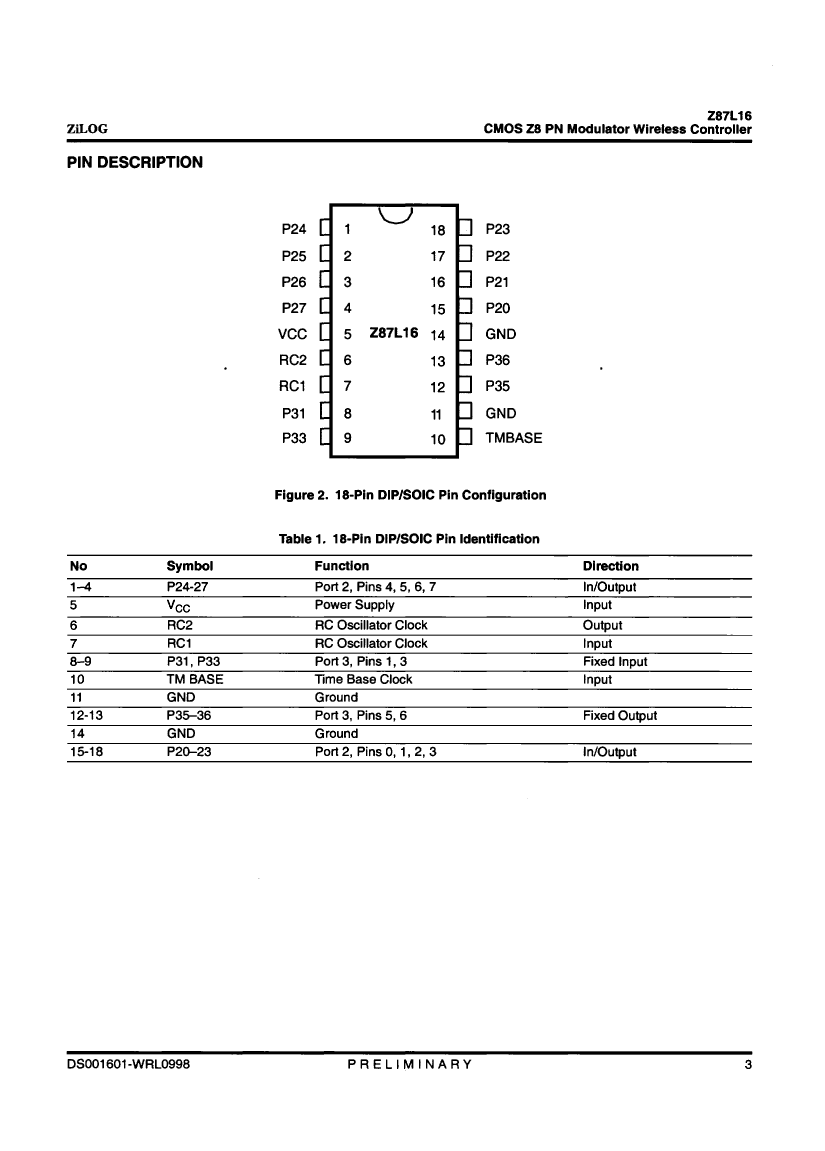

Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	4.24 mm
speed	12 MHz

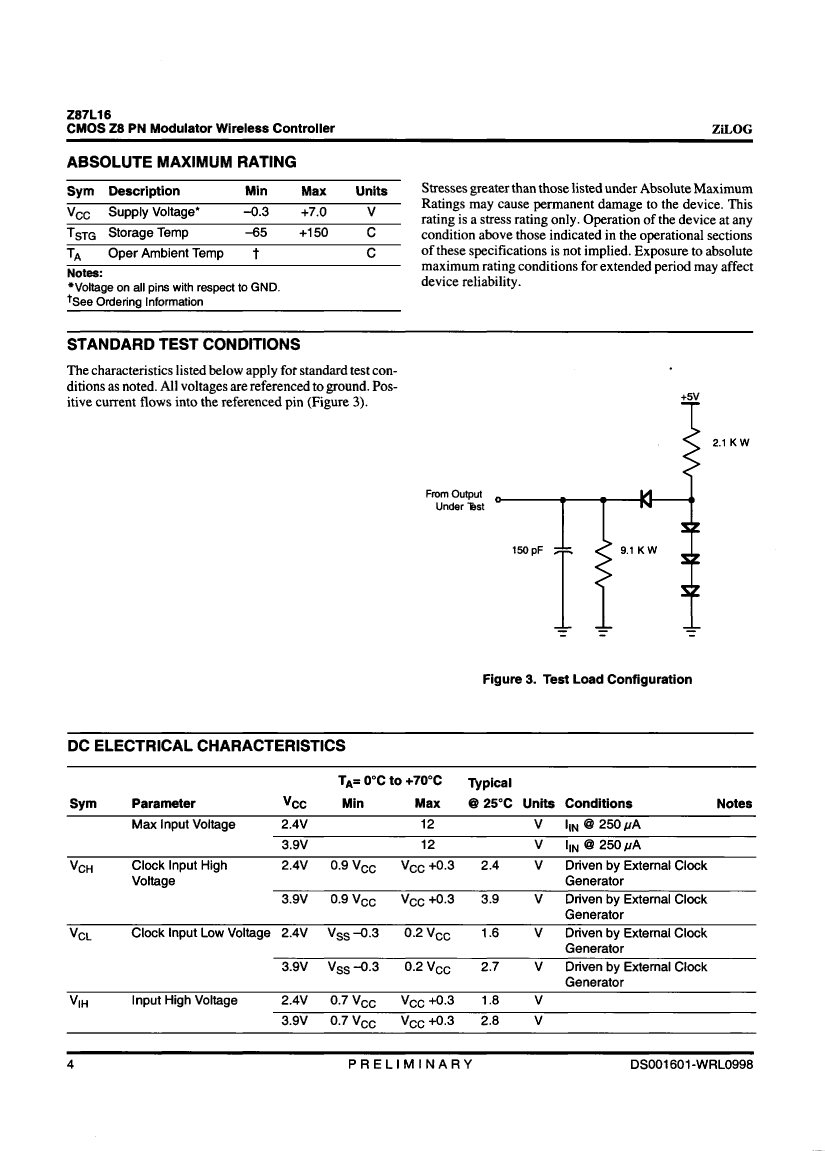

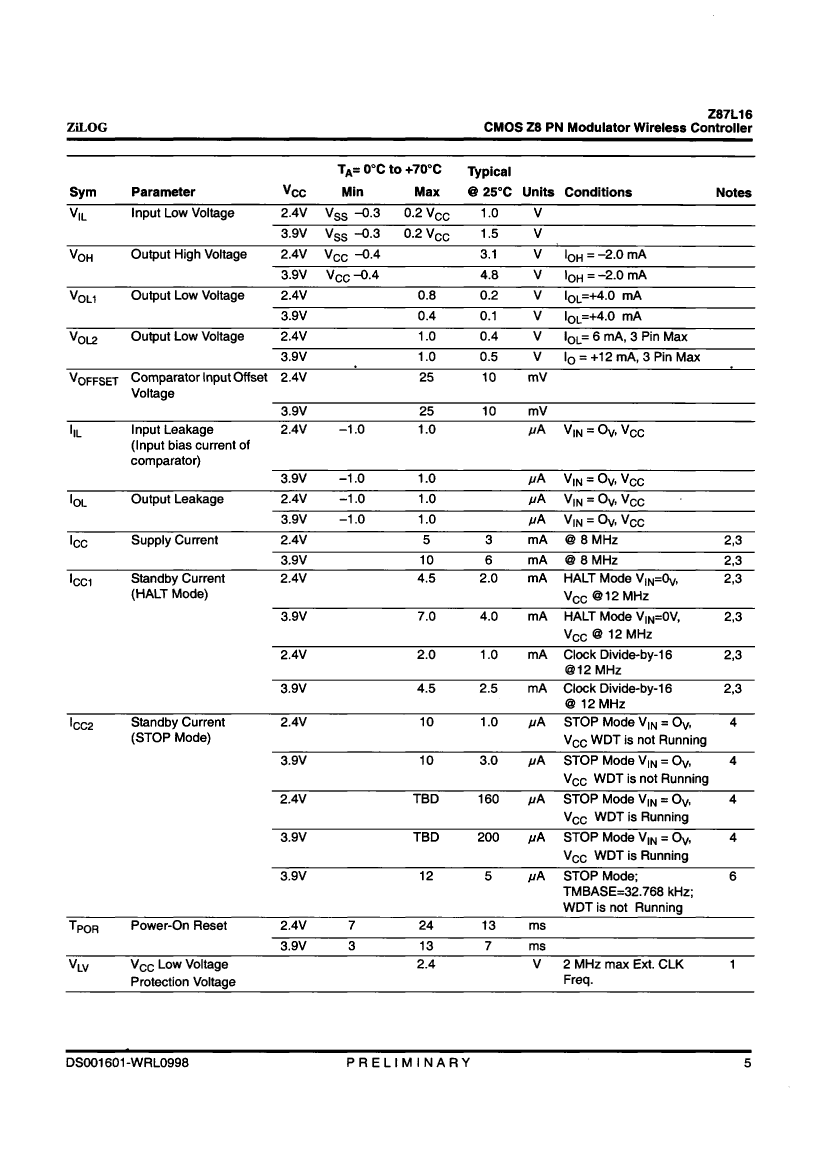

Maximum supply voltage	4.6 V
Minimum supply voltage	2.4 V
Nominal supply voltage	3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	Z87L1612PSC	Z87L1612SSC
Description	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDIP18, DIP-18	Microcontroller, 8-Bit, MROM, 12MHz, CMOS, PDSO18, SOIC-18
Maker	Zilog, Inc.	Zilog, Inc.
Parts packaging code	DIP	SOIC
package instruction	DIP,	SOP,
Contacts	18	18
Reach Compliance Code	unknown	unknown
Has ADC	NO	NO
bit size	8	8
maximum clock frequency	12 MHz	12 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDIP-T18	R-PDSO-G18
length	22.86 mm	11.55 mm
Number of I/O lines	12	12
Number of terminals	18	18
Maximum operating temperature	70 °C	70 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
Maximum seat height	4.24 mm	2.65 mm
speed	12 MHz	12 MHz
Maximum supply voltage	4.6 V	4.6 V
Minimum supply voltage	2.4 V	2.4 V
Nominal supply voltage	3 V	3 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
