D Subminiature
Filter D

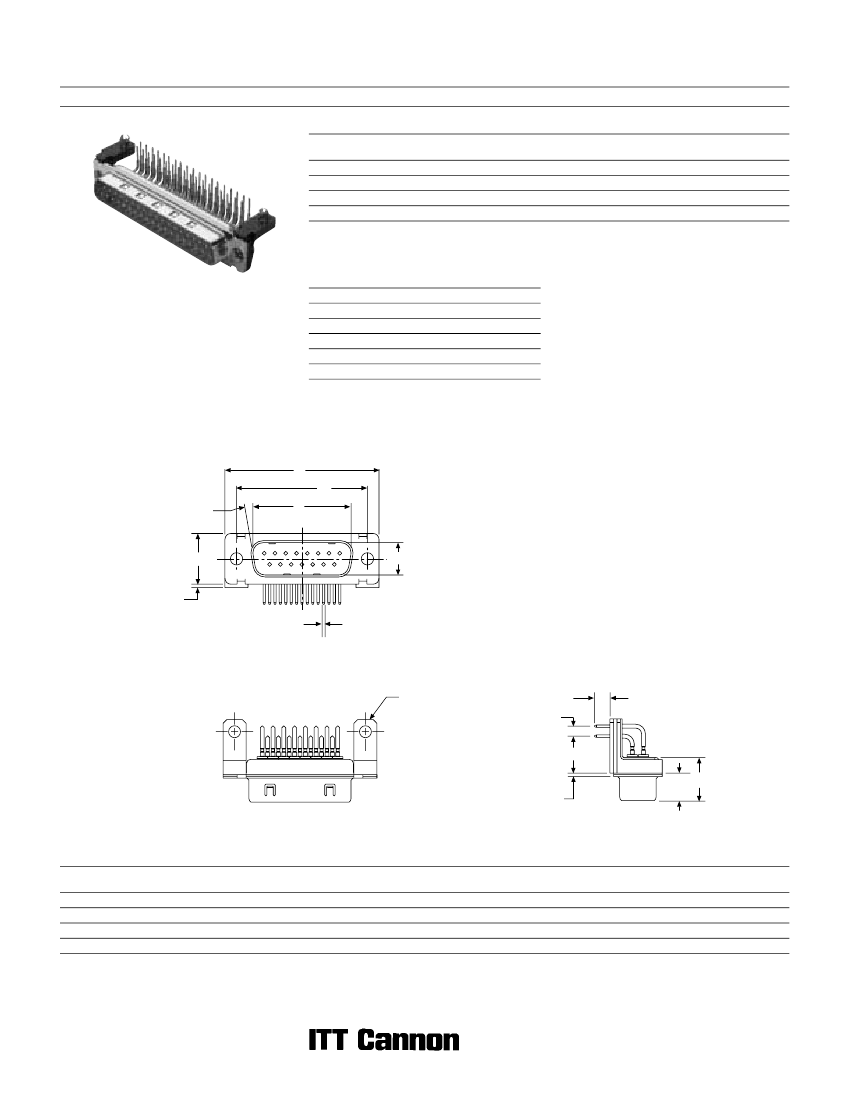

D*JK — 90° PC Tails & Plastic Brackets with Grounding Straps — European Footprint 10,2 or 9,4 mm
Plug
Part Numbers
Bushing with
Through Hole
DEJK9P*-1ADN
DAJK15P*-1ADN
DBJK25P*-1ADN
DCJK37P*-1ADN
Captive Nut
#4-40 UNC
DEJK9P*-1AWN
DAJK15P*-1AWN
DBJK25P*-1AWN
DCJK37P*-1AWN
Captive Nut
M3
DEJK9P*-1AVN
DAJK15P*-1AVN
DBJK25P*-1AVN
DCJK37P*-1AVN
Post
#4-40 UNC
DEJK9P*-1AJN
DAJK15P*-1AJN
DBJK25P*-1AJN
DCJK37P*-1AJN
Post
M3
DEJK9P*-1AGN
DAJK15P*-1AGN
DBJK25P*-1AGN
DCJK37P*-1AGN
* Insert filter designator. Example: DEJK9P4-1AWN (For 1000 pF capacitance)
Notes: For performance class 1 add -A190. Example: DEJK9P1-1ADN-A190
For pushfit/boardlocks add -146. Example: DEJK9P1-1ADN-A190-146
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
For pushfit/boardlock configuration,
see page 225.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
A
C
10°
B
1
8
E
9
15
D
1,00 (.039)
Ø 0,60 (.024)
BRACKET, PLASTIC,
WITH GROUNDING
STRAP
3,70 (.146)
2,54 (.100)
9,40 (.370)
F
W
L
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
116
Dimensions are shown in mm (inch)
Dimensions subject to change
