CX3225SBFREQ6B0FLJZ1 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX3225SBFREQ6B0FLJZ1

CX3225SBFREQ6B0FLJZ1: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 27 MHz - 54 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size79KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

CX3225SBFREQ6B0FLJZ1 Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 27 MHz - 54 MHz, ROHS COMPLIANT, CERAMIC PACKAGE-4

CX3225SBFREQ6B0FLJZ1 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
load capacitance	6 pF
Manufacturer's serial number	CX3225SB
Installation features	SURFACE MOUNT
Maximum operating frequency	54 MHz
Minimum operating frequency	27 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L3.2XB2.5XH0.55 (mm)/L0.126XB0.098XH0.022 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

Crystal Units

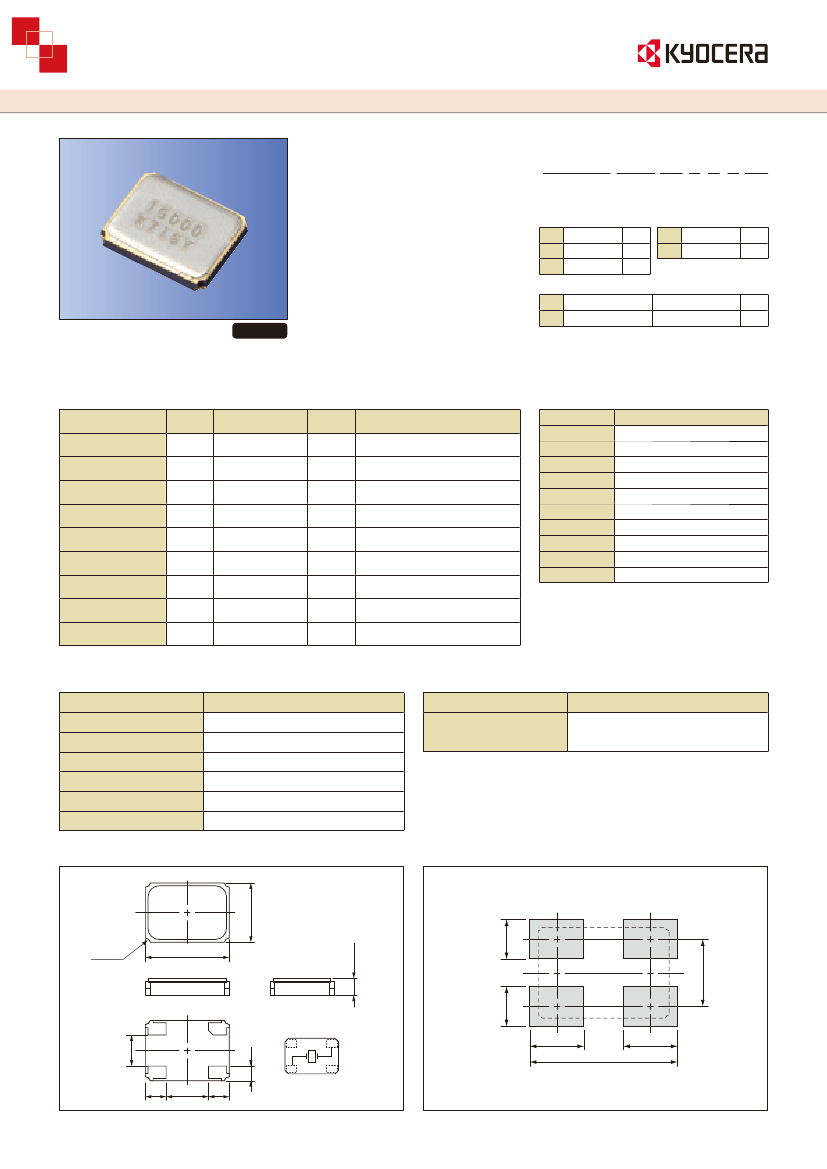

Surface Mount Type CX3225SB (CX-101F)

3.2×2.5mm for Mobile Communications

Features

• Reference frequency for

telecommunication systems

• Reflow compatible

• Using ceramic package resulting in high

reliability

• Small and low profile

How to Order

CX3225SB 26000

□□ □ □ □ □□

①

②

③ ④⑤⑥ ⑦

②

Frequency

④

Frequency Stability

±10×10

−

Std.

±15×10

−

—

①

Series

③

Load Capacitance

6 pF

8 pF

10 pF

—

Std.

—

Applications

• Mobile Communications, Bluetooth

Wireless LAN

⑤

Operating Temp. Range

⑥

Frequency Temp. Stability

−20

+70°C

−30

+85°C

±10×10

−

±15×10

−

—

Std.

RoHS Compliant

∗

Bluetooth

Trademarks are owned by

Bluetooth SIG Inc.

⑦

Individual Specification

Packaging (Tape & Reel 3000/ 1000 pcs./ reel)

Specifications

Item

Frequency Range

Overtone Order

Load Capacitance

Frequency Stability

Motional Series Resistance

Drive Level

Operating Temp. Range

Storage Temp. Range

Frequency Temp. Characteristics

Symbol

_nom

_tol

_use

_stg

_tem

Specification

12000 to 54000

Fundamental

±10

Table 1

Table 2

−30

+85

−40

+85

±15

Units

kHz

―

×10

−

ohm

μW

°C

×10

−

Freq. deviation from the value at 25°C

25°C±3°C

Remarks

Typical Frequencies and Part Numbers

Frequency (kHz)

12000.000

13000.000

13560.000

16000.000

19200.000

20000.000

26000.000

32000.000

38400.000

40000.000

Part Number

CX3225SB12000D0FLJZ1

CX3225SB13000D0FLJZ1

CX3225SB13560D0FLJZ1

CX3225SB16000D0FLJZ1

CX3225SB19200D0FLJZ1

CX3225SB20000D0FLJZ1

CX3225SB26000D0FLJZ1

CX3225SB32000D0FLJZ1

CX3225SB38400D0FLJZ1

CX3225SB40000D0FLJZ1

• Please contact us for other specifications.

Table1 Motional Series Resistance

Frequency Range

12000 to 12999kHz

13000 to 14999kHz

15000 to 15999kHz

16000 to 19999kHz

20000 to 26999kHz

27000 to 54000kHz

Motional Series Resistance

200Ω max.

150Ω max.

100Ω max.

80Ω max.

50Ω max.

40Ω max.

(Unit: mm)

Table2 Level of Drive

Frequency Range

12000 to 54000kHz

Level of Drive

10μW (100μW max.)

Dimensions

Recommended Land Pattern

(Unit: mm)

1.05

1.3

3.6

1.3

1.85
