ESD1D-S00-GE0006 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ESD1D-S00-GE0006

ESD1D-S00-GE0006: DescriptionRotary Position Encoder, Single, PACKAGE-3; CategoryLED optoelectronic/LED photoelectric; File Size61KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

ESD1D-S00-GE0006 Overview

Rotary Position Encoder, Single, PACKAGE-3

ESD1D-S00-GE0006 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	PACKAGE-3
Reach Compliance Code	not_compliant
Configuration	SINGLE
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

Features

■

Quadrature output

Snap-in PC board mount

Long operating life

Incremental output

Up to 24 full quadrature outputs per revolution

ES Series - Shaftless Contacting Encoders

Electrical Characteristics

Output ..............................................................................................2-bit gray code, Channel A leads Channel B by 90 º electrically turning clockwise (CW)

Closed Circuit Resistance ..............................................................................................................................................................................5 ohms maximum

Open Circuit Resistance ..........................................................................................................................................................................100 K ohms minimum

Contact Rating......................................................................................................................................................10 milliamp @ 10 VDC or 0.1 watt maximum

Insulation Resistance (500 VDC)........................................................................................................................................................1,000 megohms minimum

Dielectric Withstanding Voltage (MIL-STD-202 Method 301)

Sea Level ................................................................................................................................................................................................1,000 VAC minimum

Electrical Travel..........................................................................................................................................................................................................Continuous

Contact Bounce (15 RPM) ..................................................................................................................................................................5 milliseconds maximum

RPM (Operating) ..................................................................................................................................................................................................120 maximum

Phase Tolerance (CH A to CH B) ..............................................................................................................................................................................90 ° ± 72 °

Environmental Characteristics

Operating Temperature Range ..........................................................................................................................................+1 ºC to +85 ºC (+33 °F to +185 °F)

Storage Temperature Range..............................................................................................................................................-40 ºC to +85 ºC (-40 °F to +185 °F)

Humidity....................................................................................................................................................................MIL-STD-202, Method 103B, Condition B

Vibration ..............................................................................................................................................................................................................................15 G

Contact Bounce ............................................................................................................................................................................0.1 millisecond maximum

Shock ..................................................................................................................................................................................................................................50 G

Rotational Life ....................................................................................................................................................................................200,000 shaft revolutions

IP Rating ..............................................................................................................................................................................................................................IP 40

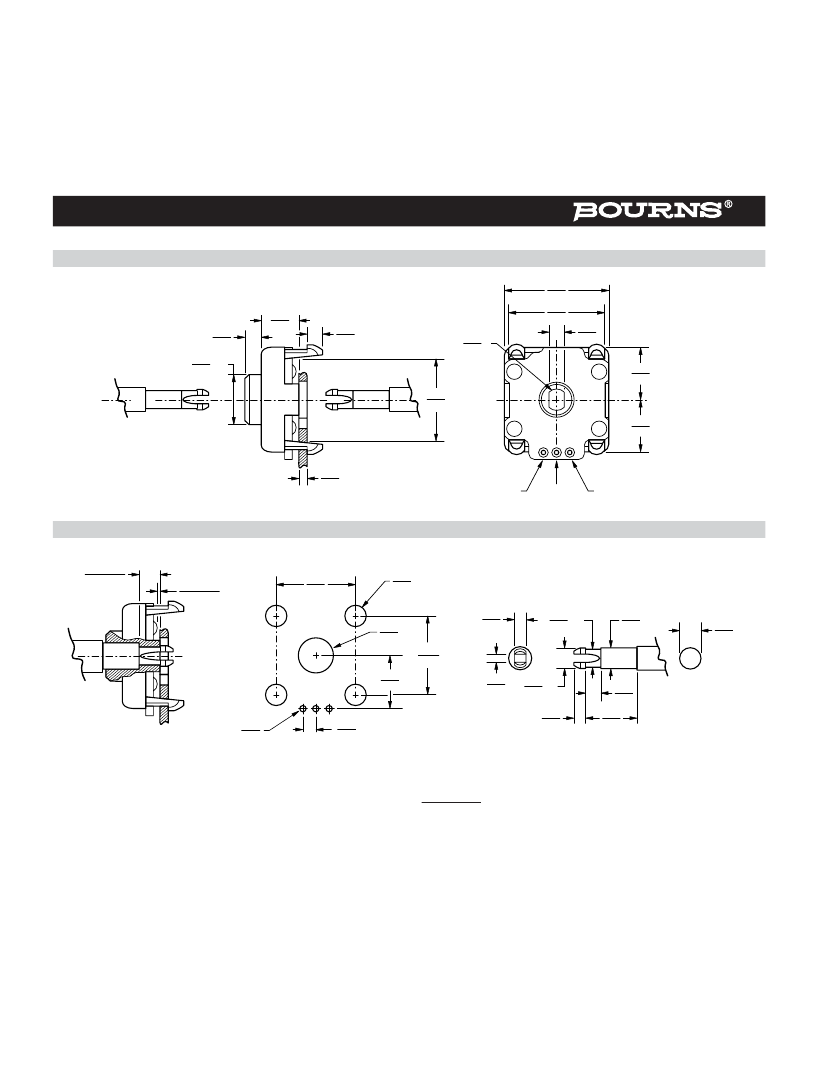

Mechanical Characteristics

Mechanical Angle ......................................................................................................................................................................................................Continuous

Running Torque (Detented) ................................................................................................................................................0.5 to 1.5 N-cm (0.75 to 2.25 oz-in.)

Undetented Torque ..........................................................................................................................................................0.17 to 0.8 N-cm (0.25 to 1.25 oz-in.)

Weight..........................................................................................................................................................................................Approximately 8 gm (0.28 oz.)

Terminals ....................................................................................................................................................................................Printed circuit board terminals

Soldering Condition ....................................................................Recommended hand soldering using Sn95/Ag5 no clean solder, 0.025 ” wire diameter.

Maximum temperature 399 °C (750 °F) for 3 seconds. No wash process to be used with no clean flux.

Part can be wave soldered at 260 °C (500 °F) for 5 seconds, no wash process with no clean flux.

Marking ..............................................................................................................................Manufacturer’s name and trademark, part number and date code

Hardware ..................................................................................................................................................................................................No hardware supplied

Quadrature Output Table

This table is intended to show available outputs as currently defined.

1/4 CYCLE PER DETENT

Closed Circuit

Open Circuit

Closed Circuit

Open Circuit

D D D D D D D D D D D D D D D D D

Channel A

FULL CYCLE PER DETENT

(Normally Open in Detent Shown)

Channel A

Closed Circuit

Open Circuit

Closed Circuit

Open Circuit

Channel B

RECOMMENDED INCREMENTAL CONTROL DIAGRAM FOR USE WITH A DEBOUNCE CIRCUIT

.0015

µf

DIRECTION

5 ms DELAY

DEBOUNCE

(MC 14490)

DECODE

LOGIC

MAGNITUDE

UP/DOWN

COUNTER

BINARY

OUTPUT

(CUSTOMER LOGIC CIRCUITRY)

Specifications are subject to change without notice.
