SMBJ64CM4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMBJ64CM4

SMBJ64CM4: DescriptionTrans Voltage Suppressor Diode, 600W, 64V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size208KB，7 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

SMBJ64CM4 Overview

Trans Voltage Suppressor Diode, 600W, 64V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AA, ROHS COMPLIANT, PLASTIC, SMB, 2 PIN

SMBJ64CM4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
Objectid	1917113768
package instruction	R-PDSO-C2
Reach Compliance Code	not_compliant
ECCN code	EAR99
compound_id	232054026
Other features	EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	86.9 V
Minimum breakdown voltage	71.1 V
Breakdown voltage nominal value	79 V
Maximum clamping voltage	114 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	600 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Maximum power dissipation	3 W
Maximum repetitive peak reverse voltage	64 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

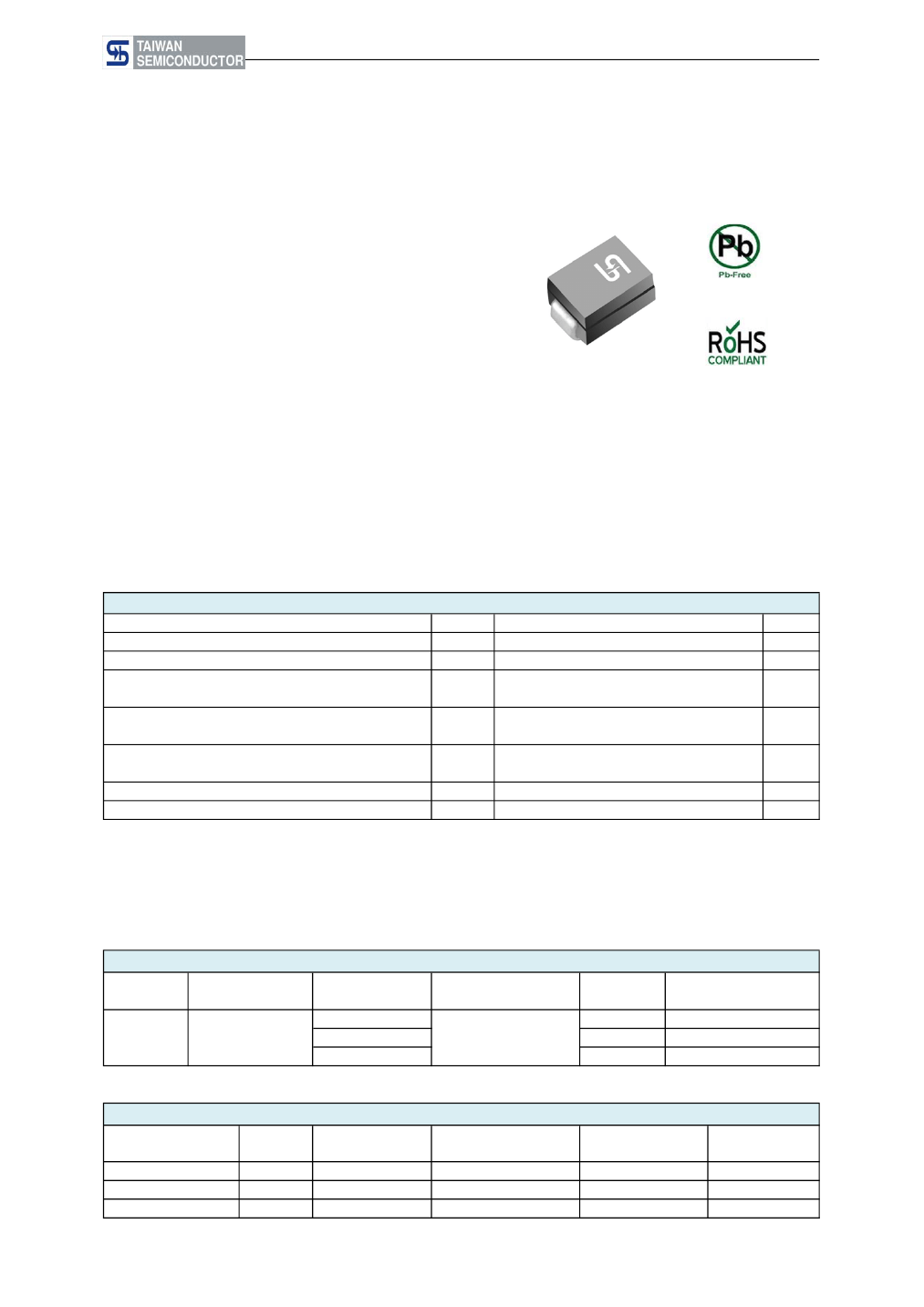

SMBJ SERIES

Taiwan Semiconductor

CREAT BY ART

Suface Mount Transient Voltage Suppressor

FEATURES

- Low profile package

- Ideal for automated placement

- Glass passivated junction

- Built-in strain relief

- Excellent clamping capability

- Fast response time: Typically less than

1.0ps from 0 volt to BV min

- Typical IR less than 1μA above 10V

- Moisture sensitivity level: level 1, per J-STD-020

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

DO-214AA (SMB)

MECHANICAL DATA

Case:

DO-214AA (SMB)

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "G" on packing code - green compound (halogen-free)

Base P/N with prefix "H" on packing code - AEC-Q101 qualified

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

with prefix "H" on packing code meet JESD 201 class 2 whisker test

Polarity:

Indicated by cathode band

Weight:

0.09 g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25℃ unless otherwise noted)

PARAMETER

Peak power dissipation at T

=25℃, tp=1ms (Note 1)

Steady state power dissipation

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load

Maximum instantaneous forward voltage at 50 A for

Unidirectional only (Note 2)

Typical thermal resistance

Operating junction temperature range

Storage temperature range

SYMBOL

FSM

θJC

θJA

STG

VALUE

600

100

3.5 / 5.0

- 55 to +150

UNIT

Watts

Volts

℃/W

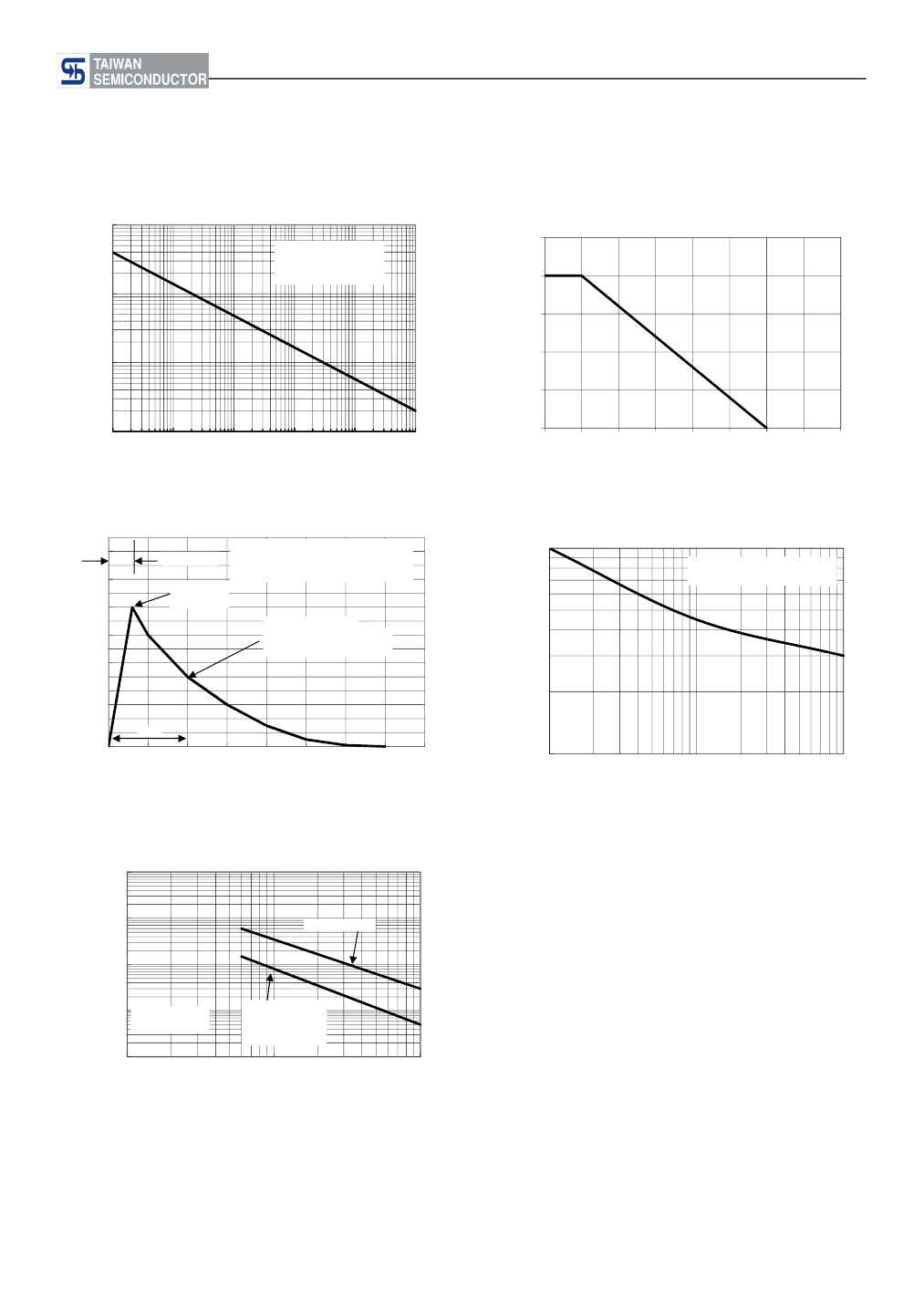

Note 1: Non-repetitive Current Pulse Per Fig. 3 and Derated above T

=25℃ Per Fig. 2

Note 2: V

=3.5V on SMBJ5.0 thru SMBJ90 Devices and V

=5.0V on SMBJ100 thru SMBJ170 Devices

Devices for Bipolar Applications

1. For Bidrectional Use C or CA Suffix for Types SMBJ5.0 thru Types SMBJ170

2. Electrical Characterstics Apply in Both Directions

ORDERING INFORMATION

PART NO.

AEC-Q101

QUALIFIED

SMBJxxxx

(Note 1)

Prefix "H"

Suffix "G"

PACKING CODE

GREEN COMPOUND

CODE

SMB

850 / 7" Plastic reel

3,000 / 13" Paper reel

3,000 / 13" Plastic reel

PACKAGE

PACKING

Note 1: "xxxx" defines voltage from 5.0V (SMBJ5.0) to 170V (SMBJ170A)

EXAMPLE

PREFERRED P/N

SMBJ20A R5

SMBJ20A R5G

SMBJ20AHR5

PART NO.

SMBJ20A

AEC-Q101

QUALIFIED

PACKING CODE

Green compound

AEC-Q101 qualified

Version: K14

GREEN

COMPOUND

DESCRIPTION

Document Number: DS_D1405063
