ZNBG3010Q16TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> ZNBG3010Q16TA

ZNBG3010Q16TA: DescriptionAnalog Circuit, 1 Func, PDSO16, QSOP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size387KB，9 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZNBG3010Q16TA Overview

Analog Circuit, 1 Func, PDSO16, QSOP-16

ZNBG3010Q16TA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Zetex Semiconductors
package instruction	SSOP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	10 V
Minimum supply voltage (Vsup)	5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	OTHER
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	3.9116 mm

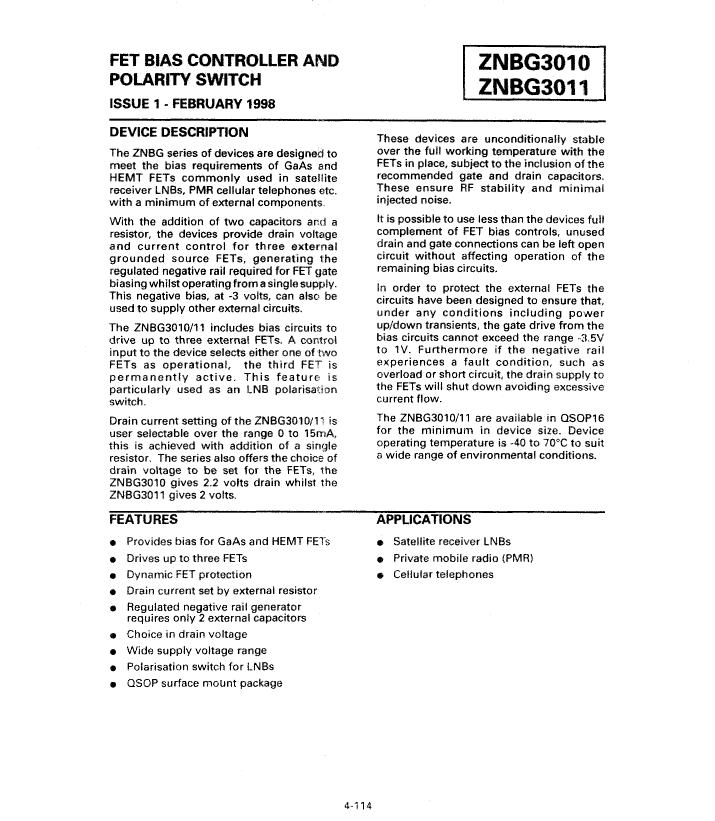

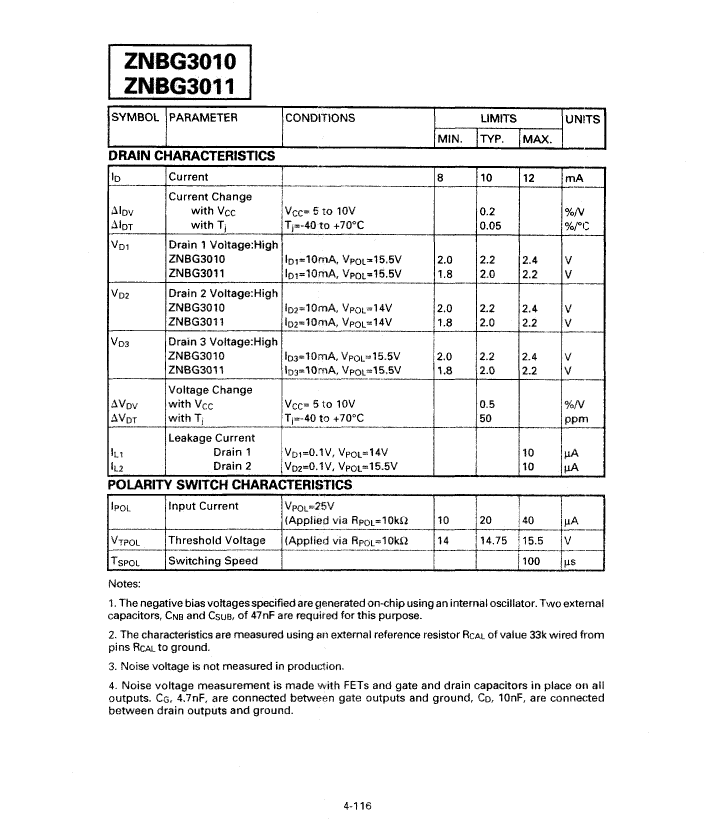

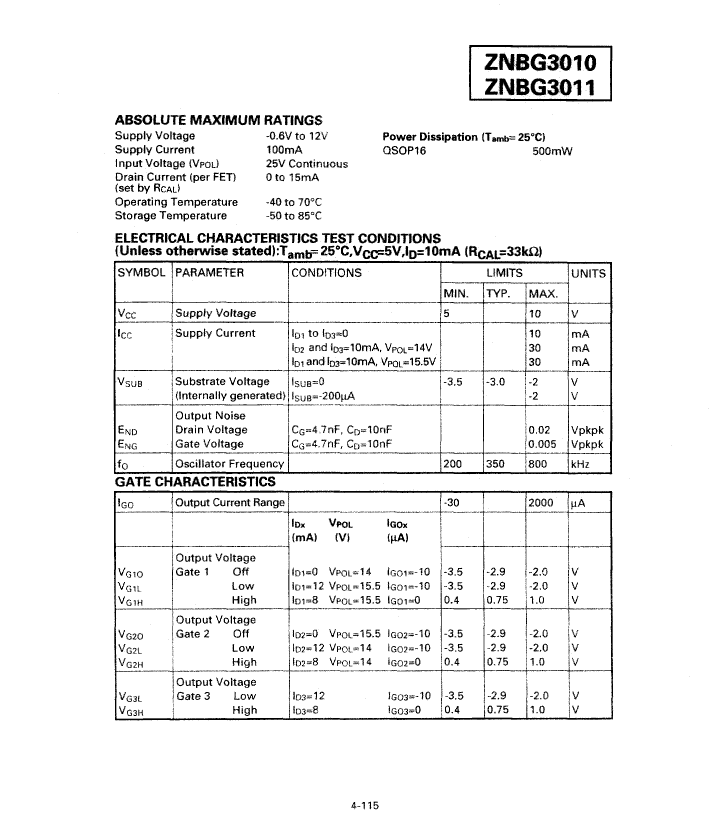

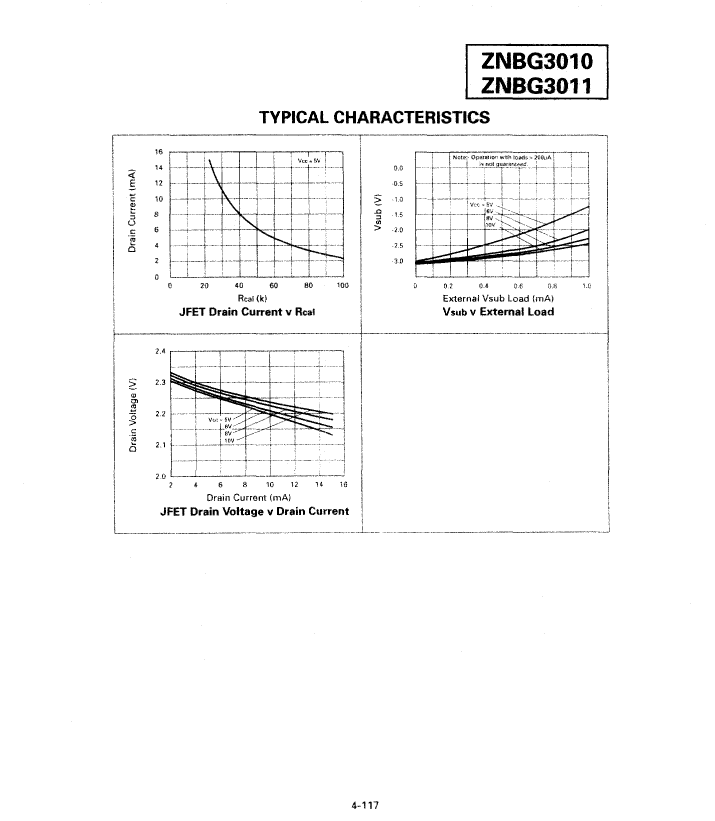

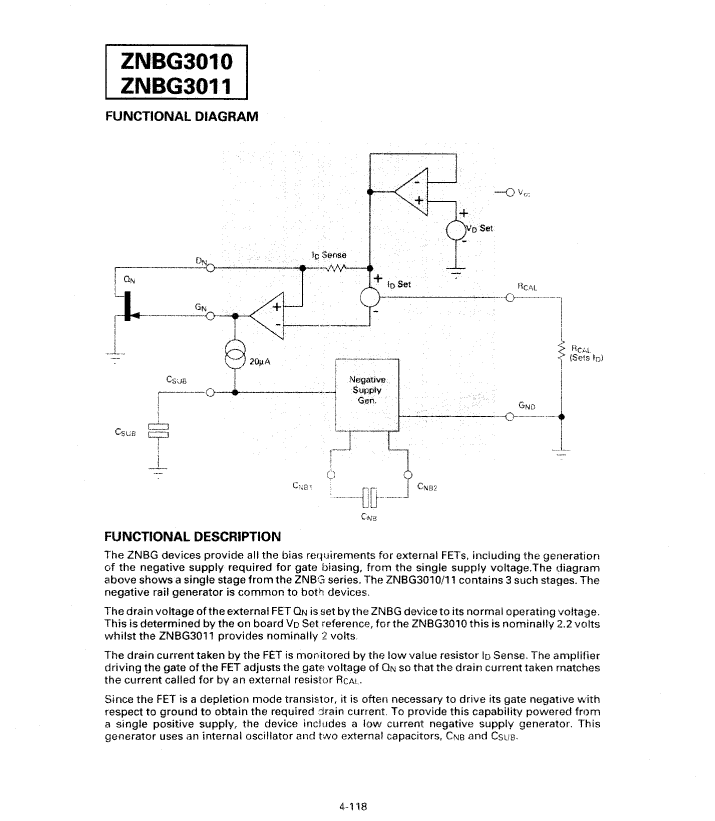

Preview

Download Datasheet

View All

ZNBG3010Q16TA Related Products

	ZNBG3010Q16TA	UZNBG3010Q16TC	UZNBG3010Q16TA	UZNBG3011Q16TC	UZNBG3011Q16TA
Description	Analog Circuit, 1 Func, PDSO16, QSOP-16	Analog Circuit, 1 Func, PDSO16, QSOP-16	Analog Circuit, 1 Func, PDSO16, QSOP-16	Analog Circuit, 1 Func, PDSO16, QSOP-16	Analog Circuit, 1 Func, PDSO16, QSOP-16
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e3	e3	e3	e3	e3
length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Humidity sensitivity level	1	1	1	1	1
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	10 V	10 V	10 V	10 V	10 V
Minimum supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40
width	3.9116 mm	3.9116 mm	3.9116 mm	3.9116 mm	3.9116 mm
