DO3340P-103MLD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DO3340P-103MLD

DO3340P-103MLD: Description1 ELEMENT, 100 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size301KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DO3340P-103MLD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DO3340P-103MLD	-	-	View	Buy Now

DO3340P-103MLD Overview

1 ELEMENT, 100 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

DO3340P-103MLD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	5137
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	5137
structure	Chi
core material	FERRITE
DC Resistance	0.04 Ω
Nominal inductance(L)	10 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	11.43 mm
Package length	12.95 mm
Package form	SMT
Package width	9.4 mm
method of packing	TR, 13 Inch
Maximum rated current	8 A
self resonant frequency	35 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 171-1

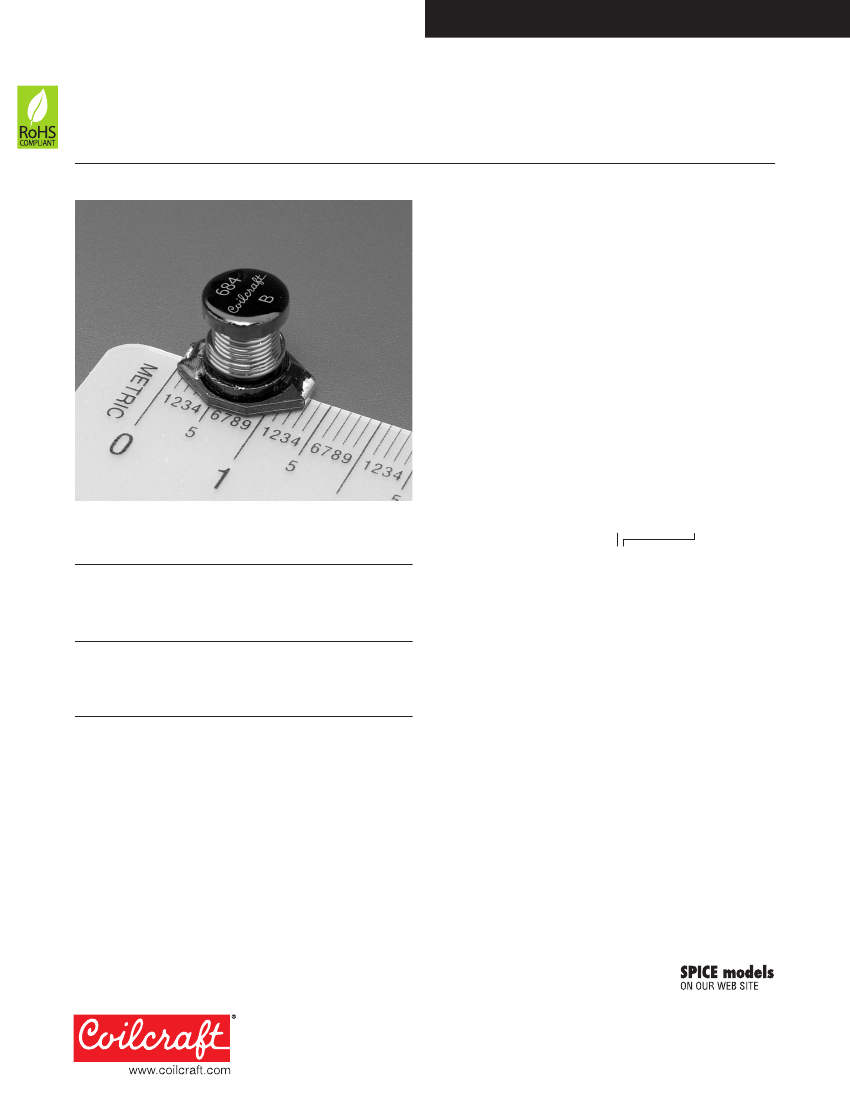

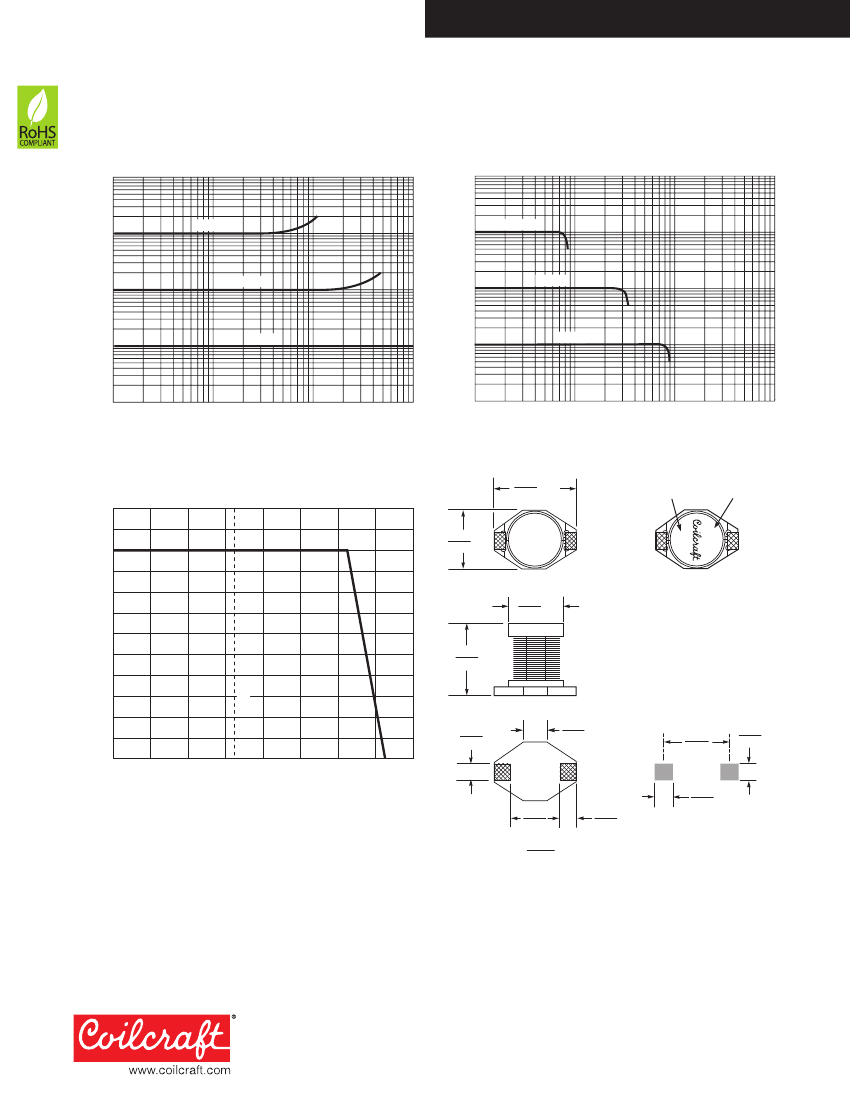

SMT Power Inductors – DO3340P

• Excellent current handling – up to 3.5 Arms with an 8 A saturation

current rating for a 10 µH part.

Designer’s Kit C310

contains 3 of each part

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant gold over nickel over phos bronze.

Other terminations available at additional cost.

Weight

1.8 – 2.8 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+105°C with derated current

Storage temperature

Component: –40°C to +105°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

225 per 13″ reel Plastic tape: 24 mm wide,

0.4 mm thick, 24 mm pocket spacing, 11.4 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part

number

DO3340P-103ML_

DO3340P-153ML_

DO3340P-223ML_

DO3340P-333ML_

DO3340P-473ML_

DO3340P-683ML_

DO3340P-104ML_

DO3340P-154ML_

DO3340P-224ML_

DO3340P-334ML_

DO3340P-474ML_

DO3340P-684ML_

DO3340P-105ML_

DCR

±20%

max

(µH) (Ohms)

100

150

220

330

470

680

1000

0.040

0.050

0.066

0.080

0.110

0.17

0.22

0.34

0.44

0.70

0.95

1.15

2.0

SRF

typ

(MHz)

9.0

7.0

5.5

4.5

3.5

3.0

2.5

2.0

1.5

1. When ordering, please specify

termination

and

packaging

codes:

Isat

Irms

(A)

8.0

7.0

5.5

4.0

3.8

3.0

2.5

2.0

1.6

1.2

1.0

0.8

3.5

3.0

2.5

2.0

1.6

1.2

0.9

0.7

0.6

0.3

0.2

0.1

DO3340P-105MLD

Termination: L

= RoHS compliant gold over nickel over phos bronze.

Special order: T

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (225 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter D instead.

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP

4263B LCR meter or equivalent.

3. DC current at which inductance drops 10% (typ) from its value without

current.

4. Current that causes a 20°C temperature rise from 25°C ambient

5. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 171-1

Revised 01/12/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

DO3340P-103MLD Related Products

	DO3340P-103MLD	DO3340P-104
Description	1 ELEMENT, 100 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 100 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it Rohs certified?	conform to	conform to
package instruction	5137	5137
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
uppercase and lowercase codes	5137	5137
structure	Chi	Cylindrical
core material	FERRITE	FERRITE
DC Resistance	0.04 Ω	0.22 Ω
Nominal inductance(L)	10 µH	100 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4	e4
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package height	11.43 mm	11.43 mm
Package length	12.95 mm	12.95 mm
Package form	SMT	SMT
Package width	9.4 mm	9.4 mm
self resonant frequency	35 MHz	5 MHz
Shape/Size Description	RECTANGULAR PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO
surface mount	YES	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrie
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz
Tolerance	20%	20%
Base Number Matches	1	1
