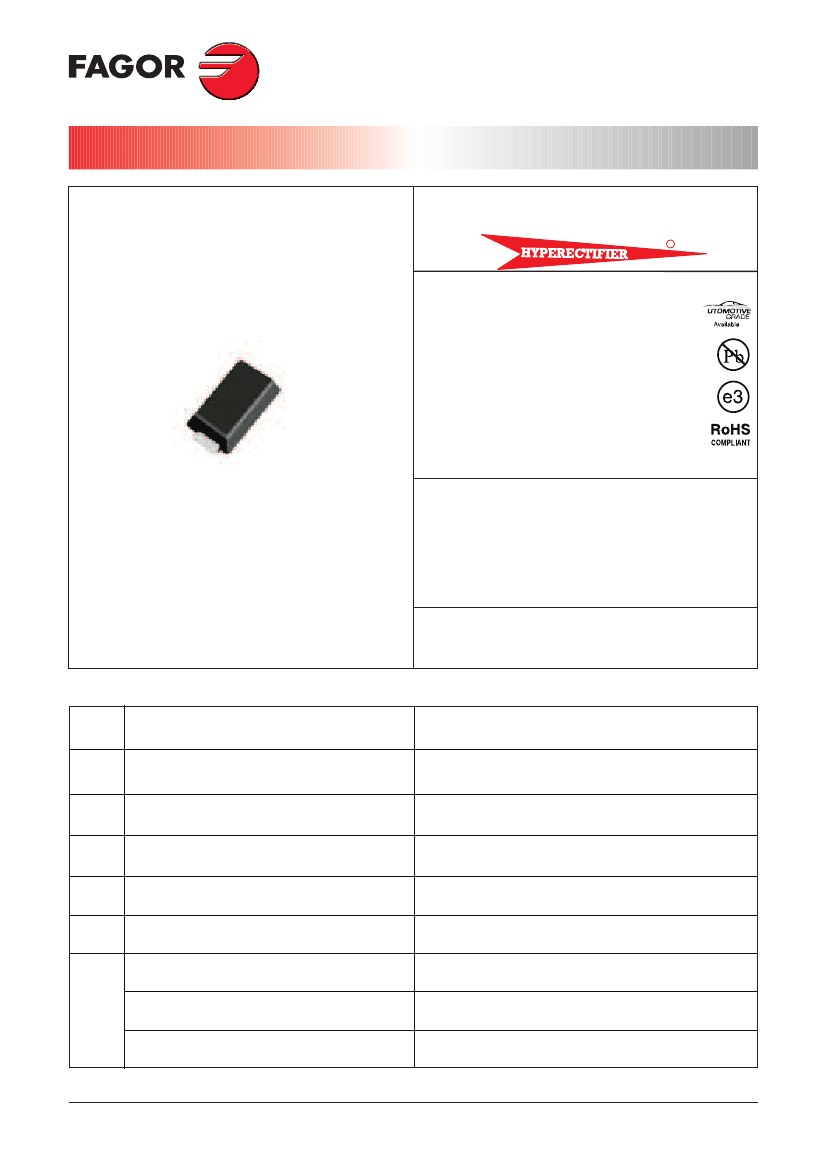

Z1SMA6V2 ........ Z1SMA240
1.3 W Surface Mount Glass Passivated Zener Diode
Voltage
6.2 to 240 V
Current
1.3 W
R
DO-214AC (SMA)
FEATURES
Low profile package
Ideal for automated placement
Low leakage current
High surge current and zener capability
Low differential resistance
Tolerance series ± 5%
Low forward voltage drop
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260º C
MECHANICAL DATA
Case
:
DO-214AC (SMA). Epoxy meets UL 94V-0
flammability rating.
Polarity
:
Color band denotes cathode end.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
HE3
suffix
for high reliability grade, meets JESD 201
class 2 whisker test.
TYPICAL APPLICATIONS
Used for basic regulation functions in most electronic
applications, Zener diodes offer a cheaper alternative to IC
solutions.
Maximum Ratings and Electrical Characteristics at 25 ºC
P
tot
P
tot
T
j
T
stg
V
F
R
th j-c
R
th j-a
Power dissipation at Tamb = 25 °C
R
th j-a
= 100 °C/W
Power dissipation at Tamb = 25 °C
R
th j-a
= 25 ºC/W
Operating temperature range
Storage temperature range
Max. forward voltage drop at I
F
= 0.5 A
Typical Thermal Resistance
1.3 W
3.25 W
- 65 to + 150 °C
- 65 to + 150 °C
1.0 V
25 °C/W
150 °C/W
125 °C/W
100 °C/W
PCB epoxy-glass path 1.5 mm
PCB epoxy-glass path 5 x 10 mm
Ceramic Plate Al
2
O
3
) path 5 x 10 mm
Other voltages upon request
www.fagorelectronica.com
Document Name: z1sma
Version: Apr-13
Page Number: 1/5
Z1SMA6V2 ........ Z1SMA240
1.3 W Surface Mount Glass Passivated Zener Diode
Ordering information
PREFERRED P/N
Z1SMA51 TRTB
Z1SMA51 TRTS
Z1SMA51 HE3 TRTB
PACKAGE CODE
TRTB
TRTS
TRTB
DELIVERY MODE
13" diameter tape and reel
7" diameter tape and reel
13" diameter tape and reel
BASE QUANTITY
7,500
1,500
7,500
UNIT WEIGHT (g)
0.060
0.060
0.060
Package Outline Dimensions: (mm)
5.1
±0.3
DO-214AC (SMA)
1.05
±0.2
2.2
±0.3
0.2
-0.05
+0.1
1.25
±0.25
1.25
±0.25
Week code
Mounting Pad Layout
1.4
-0.1
2.6
±0.3
+0.2
MC
WW
Y
2
2
Year code
Marking code
www.fagorelectronica.com
Document Name: z1sma
0.15
±0.1
4.2
Version: Apr-13
Page Number: 2/5
Z1SMA6V2 ........ Z1SMA240
1.3 W Surface Mount Glass Passivated Zener Diode
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
Marking
Code
Zener (1)
Voltage
Range
Maximum
Zener
Impedance
Typical
Temperature
Coeficient
Test
Current
Max Reverse
Leakage Current
Max Regulator
Current
at 45 °C
Type
V
Z
at I
ZT
Z
ZT
at I
ZT
at I
ZT
I
ZT
I
R
@
V
R
I
ZM
(mA)
161
147
133
122
110
105
97
88
79
71
66
62
56
52
47
41
36
33
30
28
26
23
21
19
16
15
14
12
10
9.4
8.6
7.8
7.0
6.4
5.8
5.2
4.7
4.5
4.2
(V)
Z1SMA6V2
Z1SMA6V8
Z1SMA7V5
Z1SMA8V2
Z1SMA9V1
Z1SMA10
Z1SMA11
Z1SMA12
Z1SMA13
Z1SMA15
Z1SMA16
Z1SMA18
Z1SMA20
Z1SMA22
Z1SMA24
Z1SMA27
Z1SMA30
Z1SMA33
Z1SMA36
Z1SMA39
Z1SMA43
Z1SMA47
Z1SMA51
Z1SMA56
Z1SMA62
Z1SMA68
Z1SMA75
Z1SMA82
Z1SMA91
Z1SMA100
Z1SMA110
Z1SMA120
Z1SMA130
Z1SMA150
Z1SMA160
Z1SMA180
Z1SMA200
Z1SMA220
Z1SMA240
EC
EE
ED
EF
EG
EH
EK
EL
EM
EN
EP
EQ
ER
ES
ET
EU
EV
EW
EX
EY
EZ
FD
FF
FG
FH
FK
FL
FM
FN
FP
FQ
FR
FS
FT
FU
FV
FW
FE
FZ
5.8-6.6
6.4-7.2
7.0-7.9
7.7-8.7
8.5-9.6
9.4-10.6
10.4-11.6
11.4-12.7
12.4-14.1
13.8-15.6
15.3-17.1
16.8-19.1
18.8-21.2
20.8-23.3
22.8-25.6
25.1-28.9
28-32
31-35
34-38
37-41
40-46
44-50
48-54
52-60
58-66
64-72
70-80
77-87
85-96
94-106
104-116
114-127
124-141
138-156
158-171
168-191
188-212
208-233
228-256
(W)
2
2.5
3
3.5
4
4
7
7
10
10
15
15
15
15
15
15
15
15
40
40
45
45
60
60
80
80
100
100
200
200
250
250
300
300
350
500
500
2500
2550
(% / ºC)
+0.025
+0.035
+0.035
+0.055
+0.055
+0.070
+0.075
+0.075
+0.075
+0.075
+0.085
+0.085
+0.085
+0.085
+0.085
+0.085
+0.085
+0.085
+0.085
+0.085
+0.095
+0.095
+0.095
+0.095
+0.105
+0.105
+0.105
+0.105
+0.110
+0.110
+0.110
+0.110
+0.110
+0.110
+0.110
+0.110
+0.110
+0.110
+0.110
(mA)
100
100
100
100
50
50
50
50
50
50
25
25
25
25
25
25
25
25
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
1
1
(µA)
10
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
(V)
3
4
5
6
7
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
(1) Tested with pulses.
Pulse test: tp
£
50 ms;
d
< 2%
www.fagorelectronica.com
Document Name: z1sma
Version: Apr-13
Page Number: 3/5
Z1SMA6V2 ........ Z1SMA240
1.3 W Surface Mount Glass Passivated Zener Diode
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)

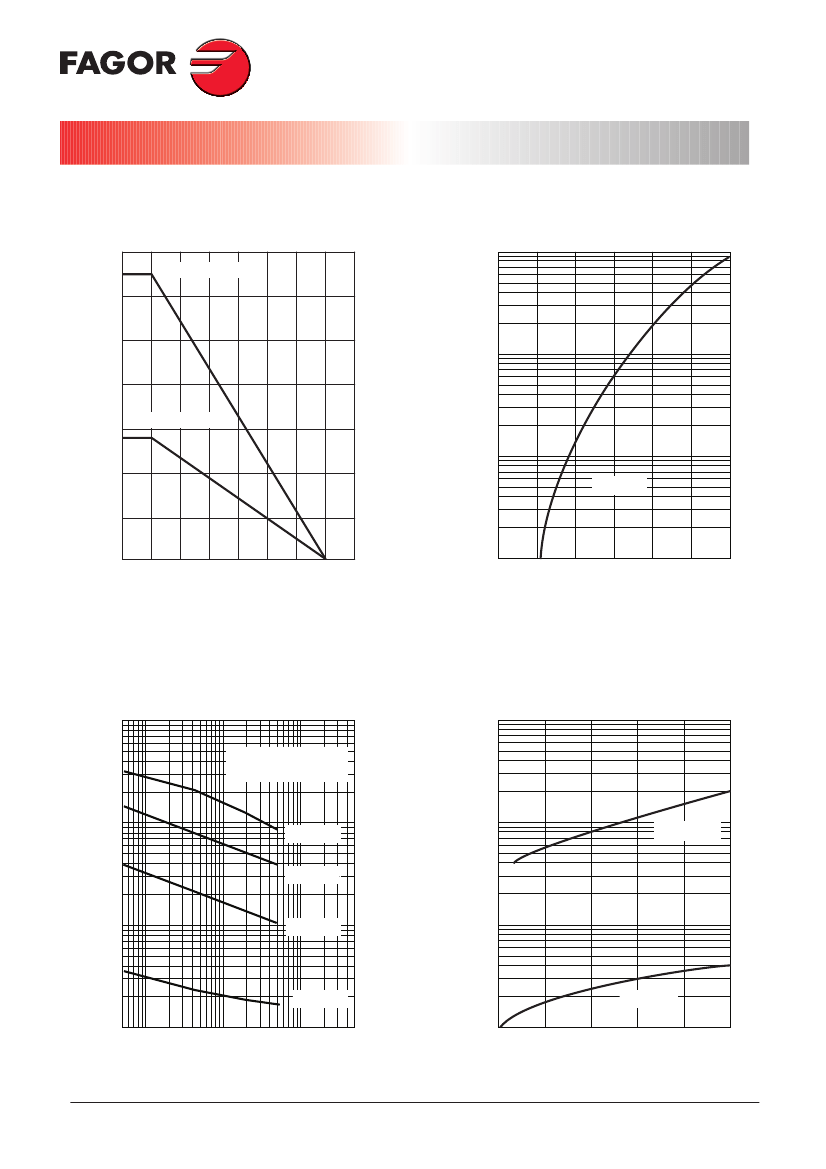

MAXIMUM CONTINUOUS POWER DISSIPATION
TYPICAL FORWARD CHARACTERISTIC
3.5
Rth j-a = 25 °C/W
10
I
F
, instantaneous forward current (A)
P
TOT
, Reverse Power Dissipation (W)
3
2.5
2
1.5
1
0.5
0
0
25
50 75 100 125 150 175 200
Rth j-a = 100 °C/W
2
1
0.20
0.1
T
j
= 25 °C
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
Tamb, Ambient Temperature (°C)
V
F
, instantaneous forward voltage (V)
TYPICAL ZENER IMPEDANCE
TYPICAL REVERSE CHARACTERISTIC
1000
T
j
= 25 °C
I
z
(RMS) = 0.1 I
z
(D.C.)
10
5
2
I
R
, reverse current (µA)
Z
ZT
, dynamic impedance, (W)
100
V
z
= 91 V
1
0.5
0.2
0.1
0.05
T
j
= 100 °C
V
z
= 55 V
10
V
z
= 30 V
V
z
= 6.2 V
0.02
0.01
0
20
40
T
j
= 25 °C
1
0.5 1
10
100
500
60
80
100
I
ZT
, zener test current (mA)
www.fagorelectronica.com
Document Name: z1sma
Percent of rated zener voltage, %
Version: Apr-13
Page Number: 4/5
Z1SMA6V2 ........ Z1SMA240
2.0 W Surface Mount Glass Passivated Zener
Disclaimer
All product, product specifications and data are subject to change without notice to improve reliability,
function or design or otherwise.
Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained
in any datasheet or in any other disclosure relating to any product.
Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular
purpose or the continuing production of any product. To the maximum extent permitted by applicable law,
Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all
liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied
warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge
of typical requirements that are often placed on Fagor products in generic applications. Such statements are not
binding statements about the suitability of products for a particular application. It is the customer's responsibility
to validate that a particular product with the properties described in the product specification is suitable for use in a
particular application. Parameters provided in datasheets and/or specifications may vary in different applications
and performance may vary over time. All operating parameters, including typical parameters, must be validated
for each customer application by the customer's technical experts. Product specifications do not expand or
otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed
therein.
Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or
life-sustaining applications or for any other application in which the failure of the Fagor product could result in
personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such
applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from
and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use
or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding
the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and
conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their
respective owners.
www.fagorelectronica.com
Document Name: z1sma
Version: Apr-13
Page Number: 5/5
