Series 970 PowerTrip™ Connectors and Accessories
Accessories

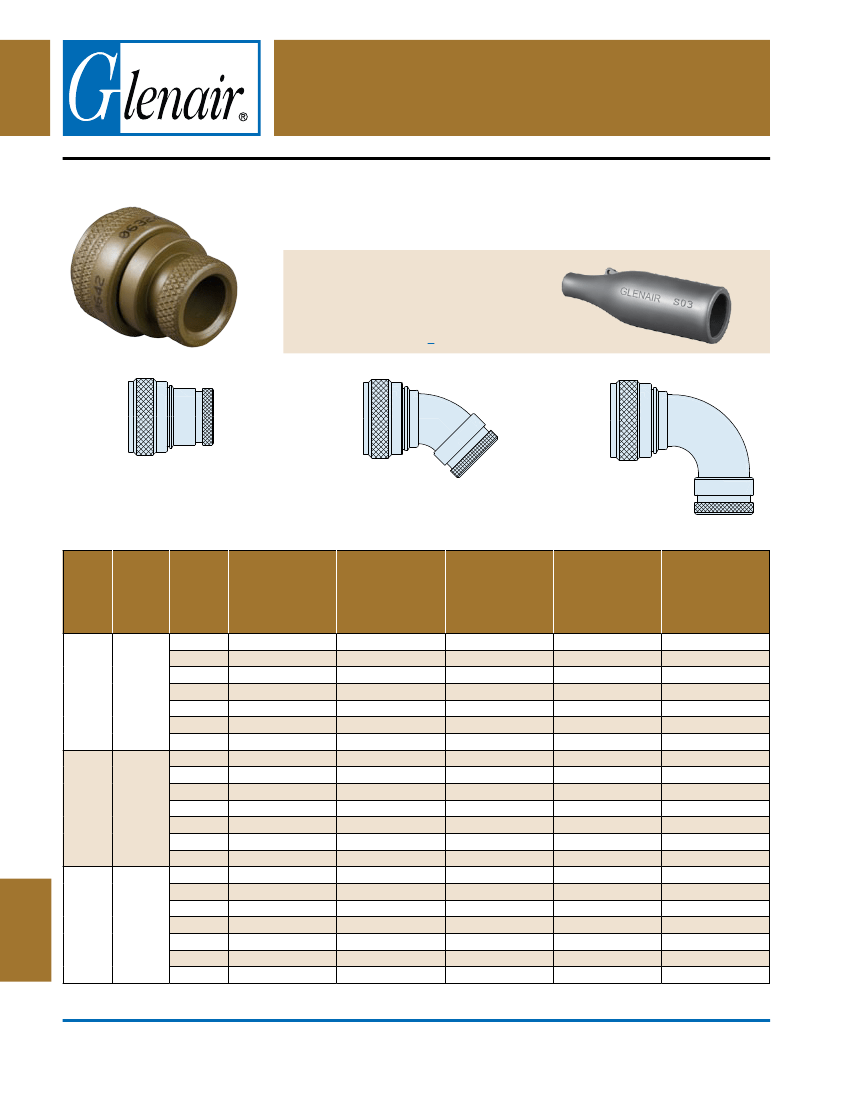

310-001 Heatshrink Boot Adapters
310-001 boot adapters
Attach Series 77 heatshrink boots to PowerTrip connectors with spin-coupling 310-001
boot adapters. These adapters feature self-locking ratchet to prevent loosening under
vibration. Boot groove accepts standard lipped heatshrink boots.
H
Accessories
How To Order Adapters with Boots
Add “T” to the adapter part numbers in the
table below. The adapter and boot will be
supplied as a kit.
Example:
310PS001ME18T
Fig. 1
Straight (Style S)
Fig. 2
45° (Style H)
Fig. 3
90° (Style J)
HoW To oRDER
FIG.
TYPE
ALUMINUM
ALUMINUM
SHELL
WITH
WITH NICKEL
SIZE
NICKEL-PTFE
PLATING (ME)
PLATING(MT)
18
20
24
28
32
36
40
18
20
24
28
32
36
40
18
20
24
28
32
36
40
310PS001ME18
310PS001ME20
310PS001ME24
310PS001ME28
310PS001ME32
310PS001ME36
310PS001ME40
310PH001ME18
310PH001ME20
310PH001ME24
310PH001ME28
310PH001ME32
310PH001ME36
310PH001ME40
310PJ001ME18
310PJ001ME20
310PJ001ME24
310PJ001ME28
310PJ001ME32
310PJ001ME36
310PJ001ME40
310PS001MT18
310PS001MT20
310PS001MT24
310PS001MT28
310PS001MT32
310PS001MT36
310PS001MT40
310PH001MT18
310PH001MT20
310PH001MT24
310PH001MT28
310PH001MT32
310PH001MT36
310PH001MT40
310PJ001MT18
310PJ001MT20
310PJ001MT24
310PJ001MT28
310PJ001MT32
310PJ001MT36
310PJ001MT40
ALUMINUM
WITH oLIVE
DRAB
CADMIUM
PLATING (NF)
ALUMINUM
WITH BLACK
ZINC-NICKEL
PLATING (ZR)
310PS001ZR18
310PS001ZR20
310PS001ZR24
310PS001ZR28
310PS001ZR32
310PS001ZR36
310PS001ZR40
310PH001ZR18
310PH001ZR20
310PH001ZR24
310PH001ZR28
310PH001ZR32
310PH001ZR36
310PH001ZR40
310PJ001ZR18
310PJ001ZR20
310PJ001ZR24
310PJ001ZR28
310PJ001ZR32
310PJ001ZR36
310PJ001ZR40
PASSIVATED
STAINLESS
STEEL
(Z1)
310PS001Z118
310PS001Z120
310PS001Z124
310PS001Z128
310PS001Z132
310PS001Z136
310PS001Z140
310PH001Z118
310PH001Z120
310PH001Z124
310PH001Z128
310PH001Z132
310PH001Z136
310PH001Z140
310PJ001Z118
310PJ001Z120
310PJ001Z124
310PJ001Z128
310PJ001Z132
310PJ001Z136
310PJ001Z140
Printed in U.S.A.
Fig. 1
Straight
Fig. 2
45°
Fig. 3
90°
310PS001NF18
310PS001NF20
310PS001NF24
310PS001NF28
310PS001NF32
310PS001NF36
310PS001NF40
310PH001NF18
310PH001NF20
310PH001NF24
310PH001NF28
310PH001NF32
310PH001NF36
310PH001NF40
310PJ001NF18
310PJ001NF20
310PJ001NF24
310PJ001NF28
310PJ001NF32
310PJ001NF36
310PJ001NF40
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
52
E-Mail: sales@glenair.com

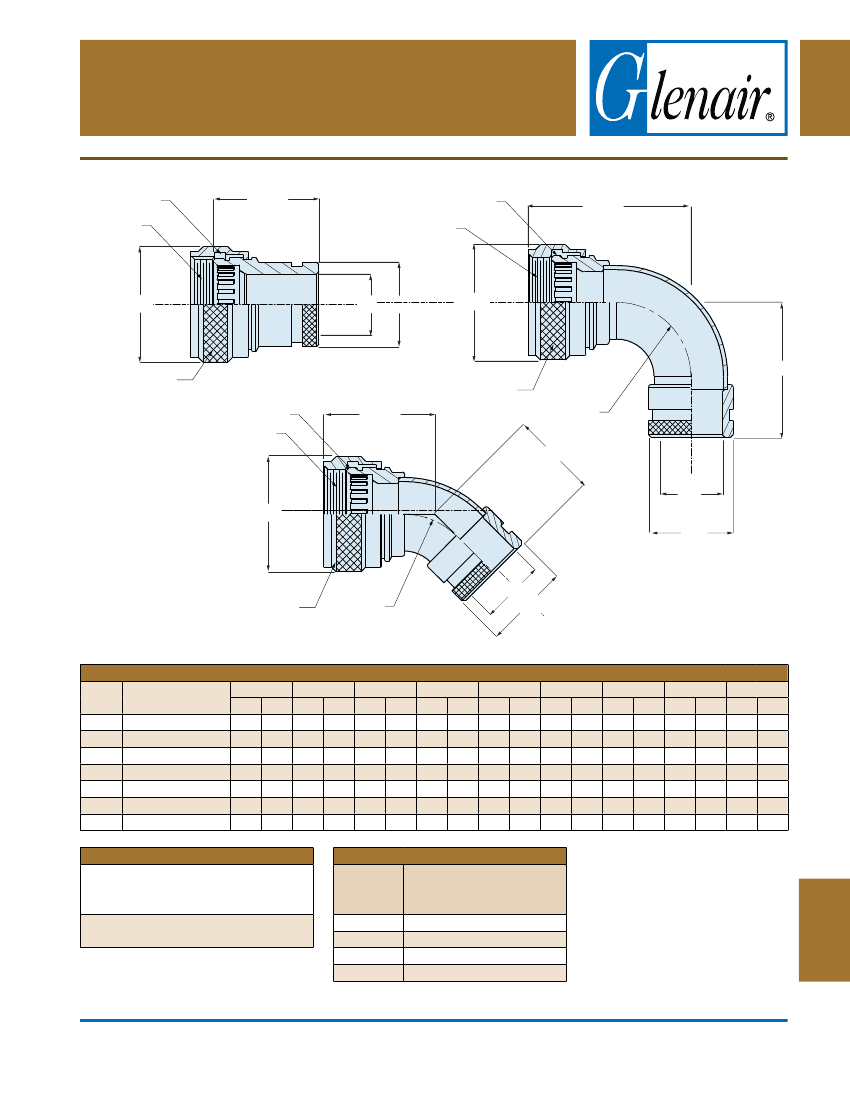

310-001 Heatshrink Boot Adapters
310-001 BOOT ADAPTERS
SELF-LOCKING
DEVICE
A THREAD
C MAX
SELF-LOCKING
DEVICE
A THREAD
H MAX
ØB
ØD
ØE
ØB
B
J MAX
R
RADIUS
G MAX
ØD
KNURL
Straight
(Style S)
SELF-LOCKING
DEVICE
A THREAD
F MAX
KNURL
45°
(Style H)
ØB
ØE
90°
(Style J)
KNURL
R
RADIUS
ØD
ØE
Shell
Size
18
20
24
28
32
36
40
A
Thread
1.125-18 UNEF-2B
1.250-18 UNEF-2B
ø B Max.
In. mm.
1.39
1.53
35.3 1.250
38.9 1.250
43.7 1.250
54.1 1.250
59.7 1.315
65.8 1.315
70.6 1.315
C Max.
In. mm.
31.8
31.8
ø D Min. ø E Max.
In. mm. In. mm.
.724
.858
18.4 1.005
21.8 1.139
26.5 1.324
34.4 1.625
41.4 1.901
46.3 2.104
52.1 2.331
DIMENSIoNS
25.5
28.9
F Max.
In. mm.
.750
.812
19.1 1.00
20.6 1.06
23.8 1.19
25.4 1.25
28.7 1.38
38.1 1.75
38.1 1.75
G Max.
In. mm.
25.4 1.38
26.9 1.50
30.2 1.75
31.8 2.19
35.1 2.50
44.5 2.63
44.5 2.63
H Max.
In. mm.
35.1 1.63
38.1 1.75
44.5 2.00
55.7 2.44
63.5 2.75
66.8 2.88
66.8 2.88
J Max.
In. mm.
41.4 .88
44.5 1.00
50.8 1.25
62.0 1.50
69.9 1.75
73.2 2.25
73.2 2.25
R Max.
In. mm.
22.4
25.4
31.8
38.1
44.5
57.2
57.2
1.4375-18 UNEF-2B
1.72
1.8125-16 UN-2B
2.13
2.0625-16 UNS-2B
2.250-16 UN-2B
2.500-16 UN-2B
2.35
2.59
2.87
31.8 1.043
31.8 1.353
33.4 1.620
33.4 1.823
33.4 2.050
33.6 .937
41.2 1.000
48.3 1.130
53.4 1.500
59.2 1.500
MATERIALS AND FINISHES
Coupling nut, backshell: aluminum or
stainless steel. See
How To Order
for
material & finish options.
Anti-decoupling spring, bushing: high-
temperature thermoplastic
INSTALLATIoN ToRQUE
Shell
Size
18
20, 24
28, 32, 36
40
Recommended
Installation Torque
Inch-Pounds ± 5
116
136
148
164
Printed in U.S.A.
H
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
53
E-Mail: sales@glenair.com
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories
