Medium-High Voltage Multilayer Ceramic Capacitors
SMK316B7152MF-T
Features
Item Summary
1500pF±20%, 630V,
X7R, 1206/3216 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
1500 pF ± 20 %
1206/3216
630 V
2.5 %
X7R
-55 to +125 ℃
120 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.15 mm
1.6 ±0.15 mm
1.15 ±0.10 mm
0.50 +0.35/-0.25 mm
2018.03.09
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

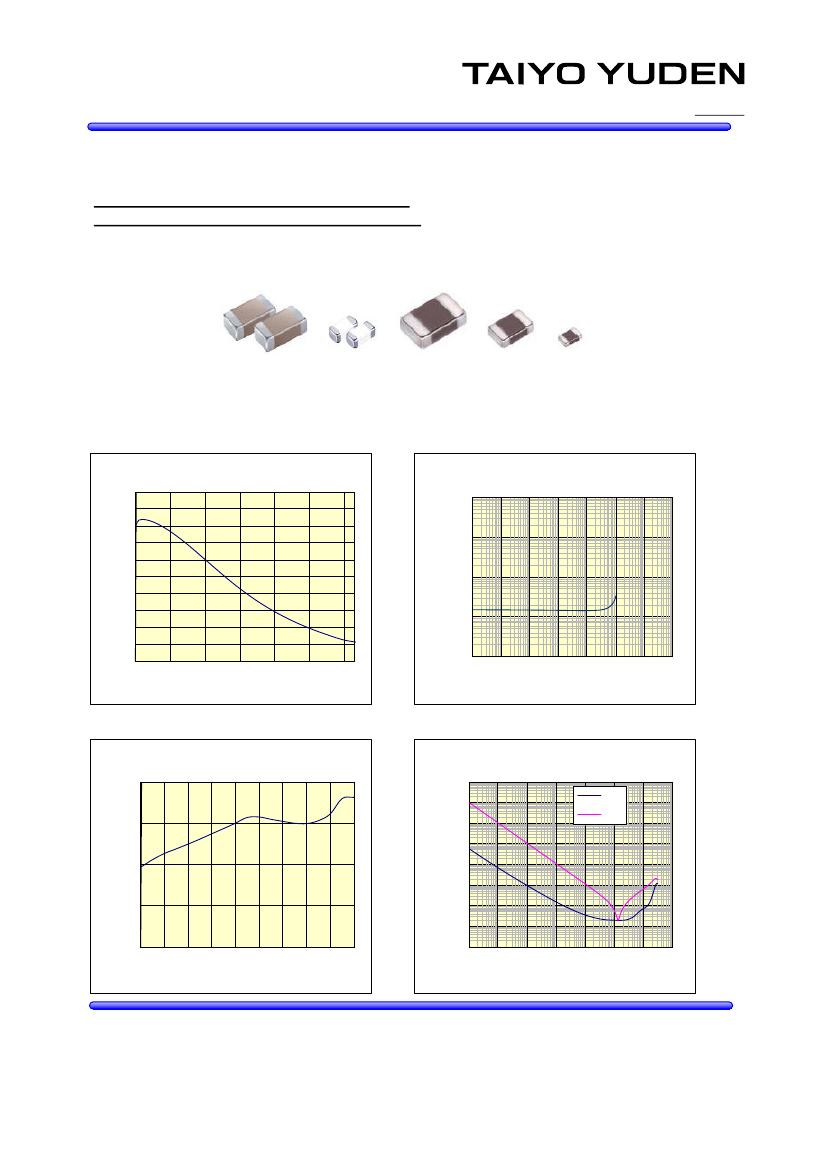

Multi Layer Ceramic Capacitor
○SMK316B7152MF
630V 3216 X7R 1500pF +/- 20% t=1.25mmMAX
630V 1206 X7R 1500pF +/- 20% t=0.049inchMAX
-Electrical Characteristics Data-
16QA11
RoHS compliance product
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
100
SMK316B7152MF
DC Bias Char.
1000000
SMK316B7152MF
Capacitance Freq.
100000
Capacitance[pF]
dC/C[%]
10000
1000
200 300 400 500
DC Bias Voltage[V]
600
100
0.001 0.01 0.1
1
10
100 100010000
Frequency[MHz]
SMK316B7152MF
Capacitance Temp.
10
1000000
100000
0
10000
SMK316B7152MF
Impedance,ESR Freq.
ESR
Z
-10
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
0.1
-20
-30
0.01
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
