CD54HCT85H/3 datasheet, PDF - EEWORLD Datasheet

CD54HCT85H/3: DescriptionHCT SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, UUC16; Categorylogic logic; File Size179KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

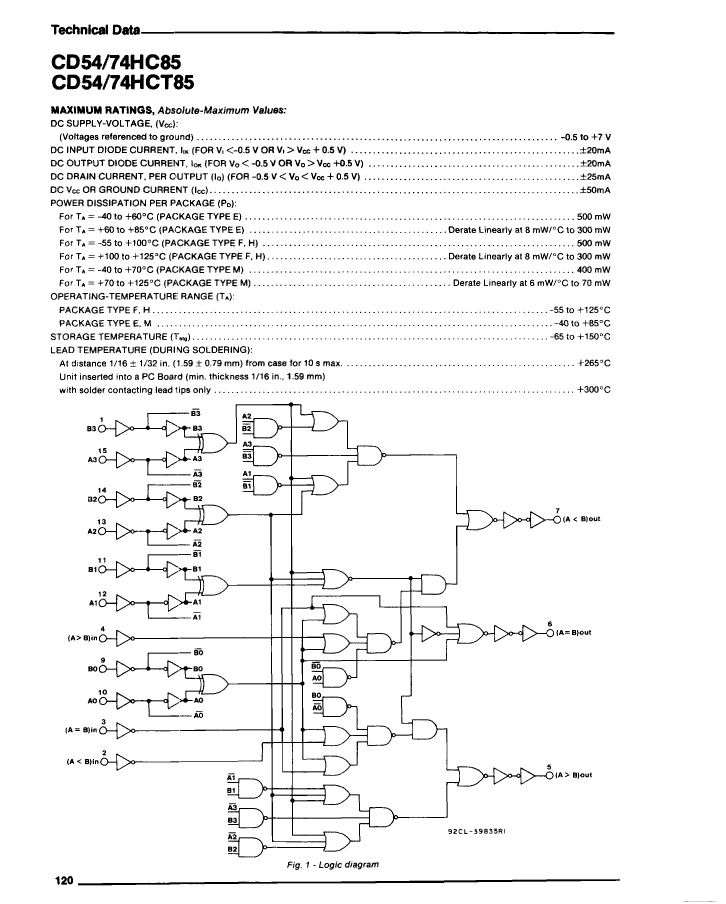

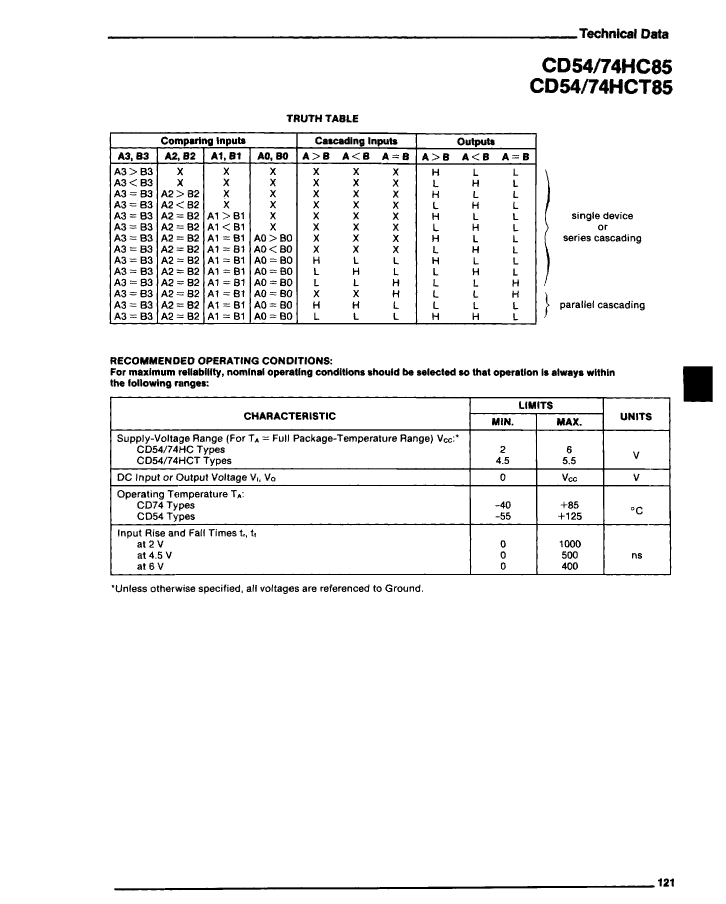

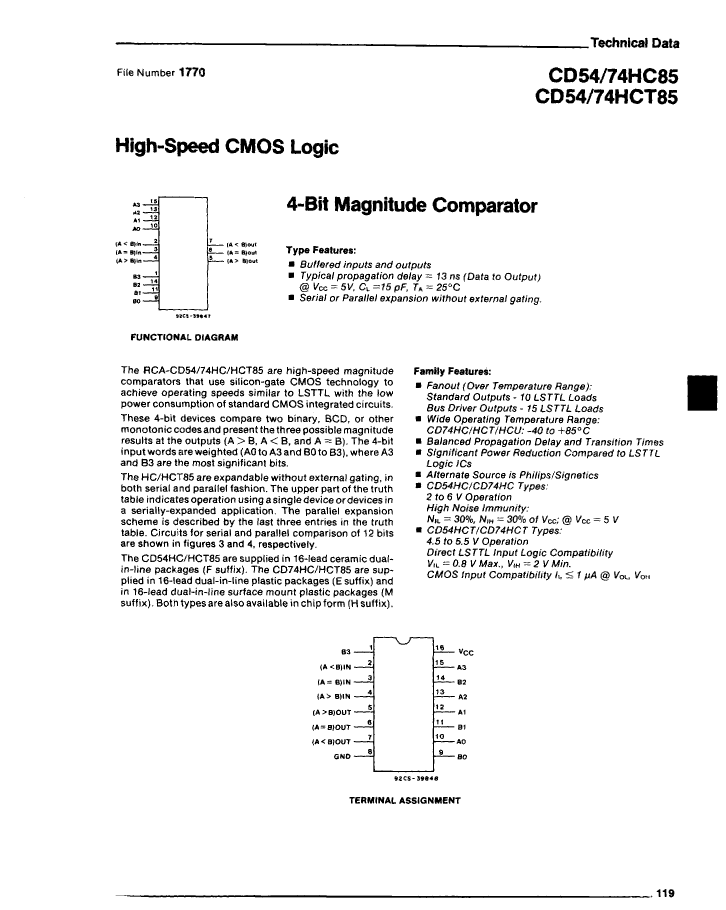

CD54HCT85H/3 Overview

HCT SERIES, 4-BIT MAGNITUDE COMPARATOR, TRUE OUTPUT, UUC16

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
package instruction	DIE,
Reach Compliance Code	unknown
Other features	CASCADABLE
series	HCT
JESD-30 code	X-XUUC-N16
Logic integrated circuit type	MAGNITUDE COMPARATOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP

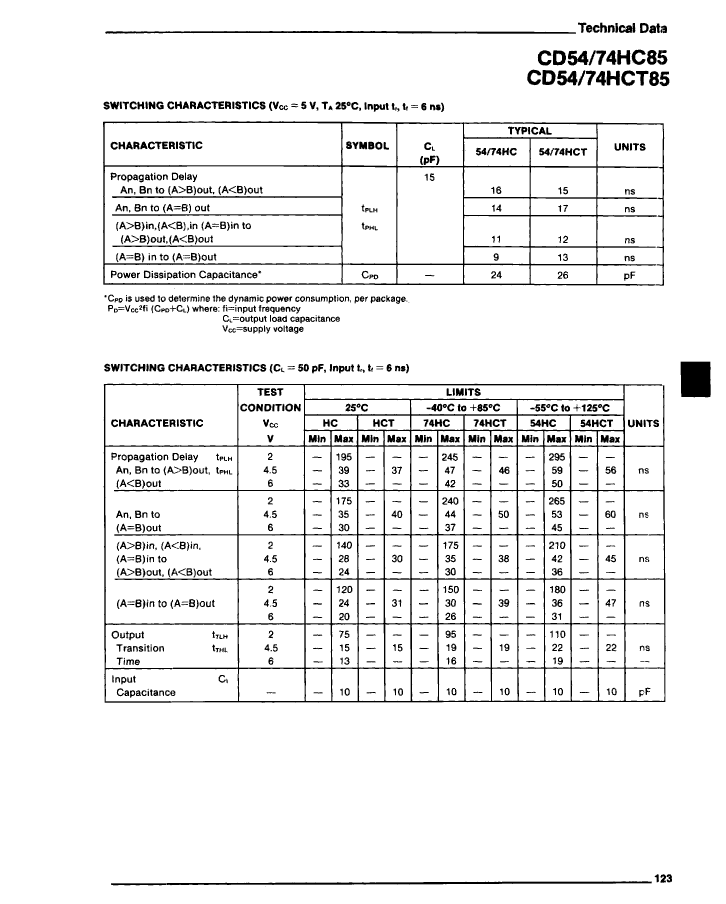

propagation delay (tpd)	60 ns
Certification status	Not Qualified

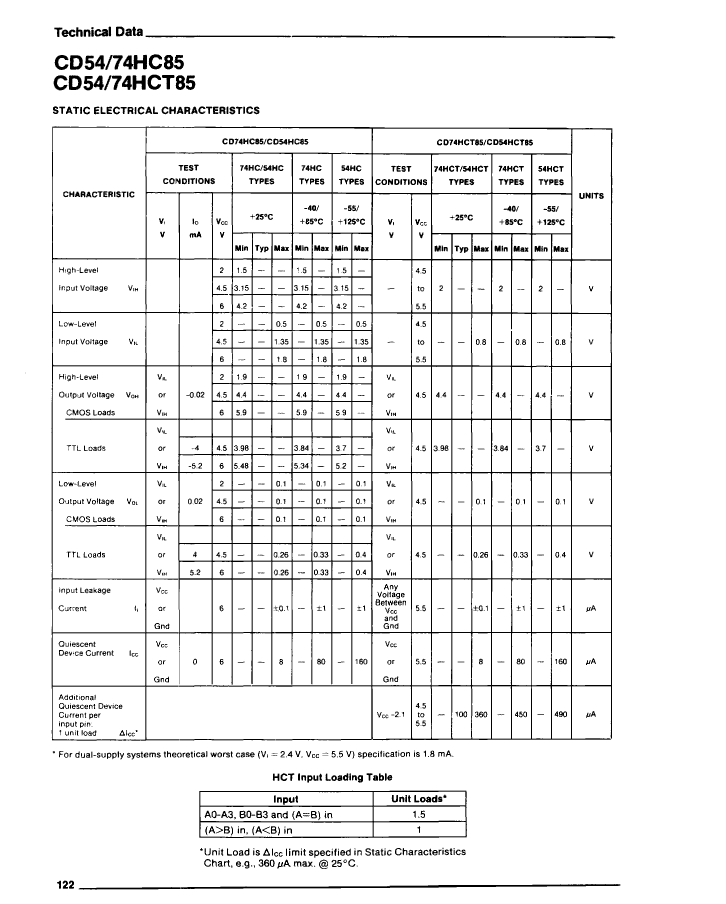

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
