FREQUENCY
QEHC49H3
HC49/S Crystal – Through Hole packaged
Specification (Rev-D)
Electrical Characteristics ......................................................P01
ESR vs. frequency range and Mode of vibration ..................P01
Mechanical Characteristics ...................................................P01
Ordering Information .............................................................P02
Radial taping specification ....................................................P02
Frequency
QEHC49H3
HC49/S Crystal – Through Hole packaged
Specification (rev-D)
June 29
th
, 2006

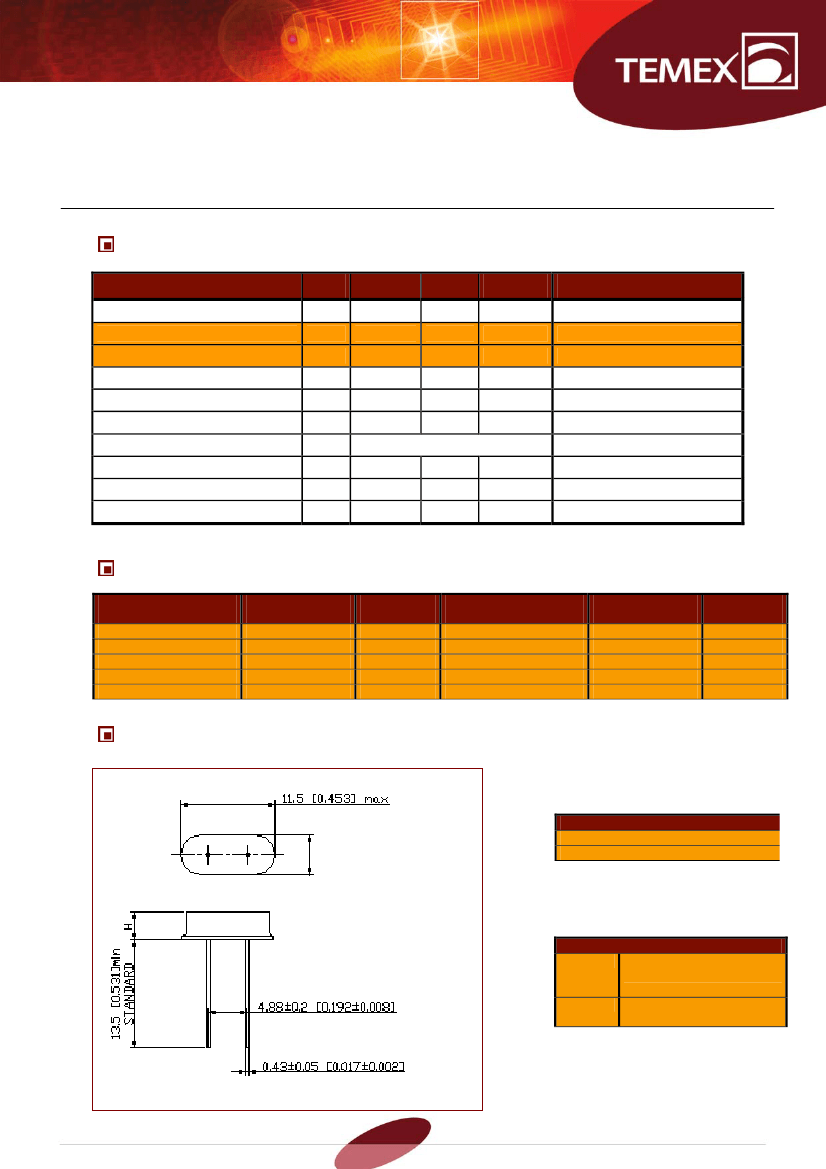

Electrical Characteristics
Electrical Parameters
Frequency range
Temperature Stability
Operating Temperature Range
Storage temperature range
Shunt capacitance C
0
Load capacitance
Drive level
Aging (First Year)
Insulator resistance
Unit
MHz
± ppm
°C
°C
pF
pF
µW
± ppm
MΩ
500
100
-40
Minimum Typical Maximum
3.200
10
10
30
30
-20/+70
66.000
50
50
-40/+85
+85
7.0
10pF ~ 32pF or series
500
5
Ref at 25°C
At 100V
DC
Customized specification upon request
Refer to Ordering Information
Refer to Ordering Information
Refer to Ordering Information
Refer to Ordering Information
Test conditions
Frequency Tolerance
(at 25°C) ± ppm
ESR vs. frequency range and Mode of vibration
Frequency range (MHz) Mode of vibration Max ESR (Ω) Frequency range (MHz) Mode of vibration Max ESR (Ω)
3.200 to 4.499
4.500 to 5.999
6.000 to 6.999
7.000 to 7.999
8.000 to 8.999
Fund.
Fund.
Fund.
Fund.
Fund.
150
120
100
90
80
9.000 to 9.999
10.000 to 12.999
13.000 to 30.000
30.000 to 66.000
Fund.
Fund.
Fund.
3rd
60
50
40
80
Mechanical Characteristics
5.0 [0.197] max
Marking for QEHC49H3
Frequency in MHz (6 digits)
On top
H = 3.56 [0.140] max
Mechanical conditions
Vibration 10g, 10Hz to 2KHz
according to standard CEI
68-2-63
Shocks
100g, 6ms according to
standard CEI 68-2-27
Note 1 :
QEHC49H3 is fully RoHS
compliant.
1
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
Frequency
QEHC49H3
HC49/S Crystal – Through Hole packaged
Specification (rev-D)
June 29
th
, 2006

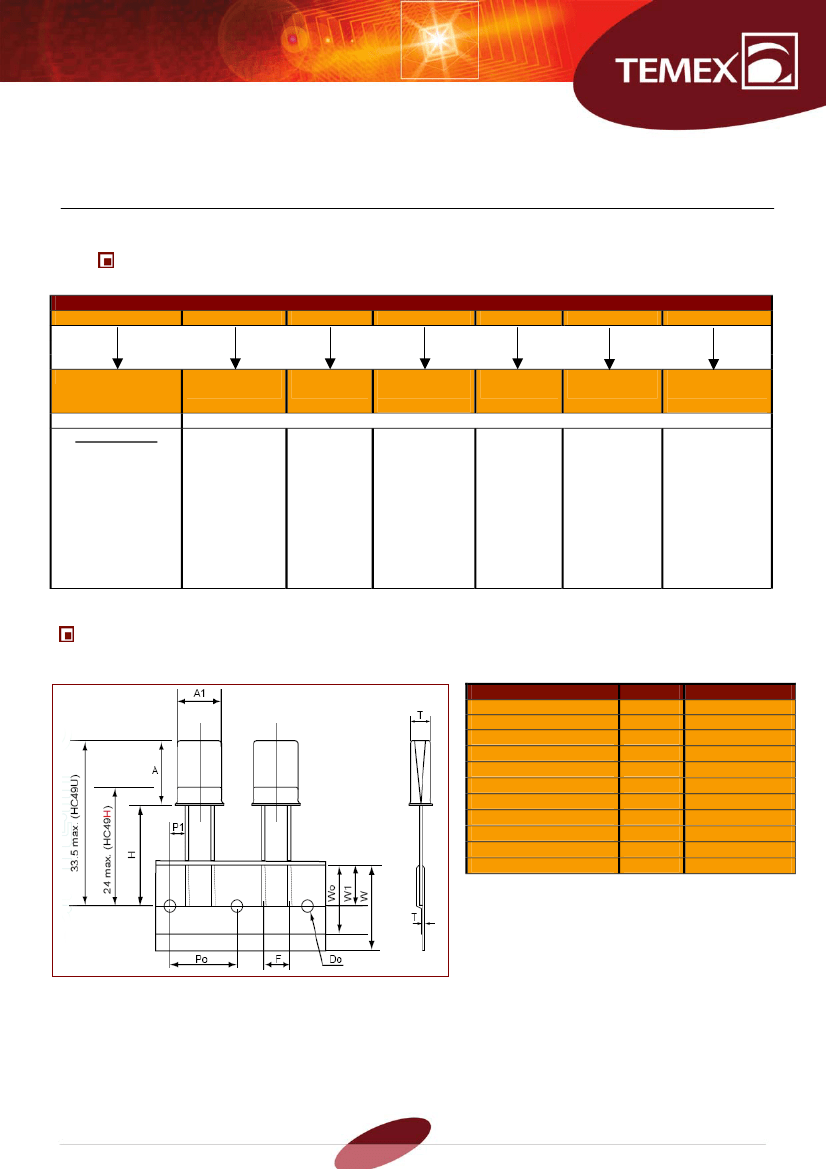

Ordering Information
QEHC49H3
1
Part numbering system
30
HQ
50
16
25.000MHZ
Package type
Vibration
mode
1 = Fundamental
3 = 3
rd
Overtone
th
5 = 5 Overone
Frequency
tolerance
Operating
temperature
range
Frequency
stability
Load
Capacitance
16=16pF
Please, enter the
value of load
capacitance
Nominal
Frequency
(MHz)
Please enter the
nominal
frequency
QEHC49H3 :
HC49/S Through
Hole packaged
10=±10ppm
30=±30ppm
50=±30ppm
D=-40°C
F= -30°C
H=-20°C
J=-10°C
L=0°C
M=+50°C
N=+55°C
O=+60°C
Q=+70°C
T=+85°C
10=±10ppm
30=±20ppm
50=±30ppm
Radial taping specification
Item
Product size
Product thickness
Feed hole location
Feed hole pitch
Lead span
Tape width
Cover tape width
Tolerance of leading hole
Masking tape location
Feed hole diameter
Tape thickness
Symbol
A1 x A
T
P1
P
0
F
X
W
0
W1
H
D
0
t
Dimensions
11.05x13.46 max
4.65 max
3.81±0.7
12.7±0.3
5.0±0.5
18.0±1.0
12.7±1.0
9.0±0.5
20.0±0.5
4.0±0.2
0.6±0.2
2
TEMEX reserves the right to modify herein specifications and informations at any time when necessary to provide optimum performance and cost.
