IPT26A18-11SCF6 datasheet, PDF

Datasheet> All Categories > The connector> The connector> IPT26A18-11SCF6

IPT26A18-11SCF6: DescriptionMIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size287KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

IPT26A18-11SCF6 Overview

MIL Series Connector, 11 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug, ROHS COMPLIANT

IPT26A18-11SCF6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Glenair
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-26482, POLARISED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	IPT
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP
Total number of contacts	11

Preview

Download Datasheet

View All

IPT Series

Bayonet Lock

Connectors

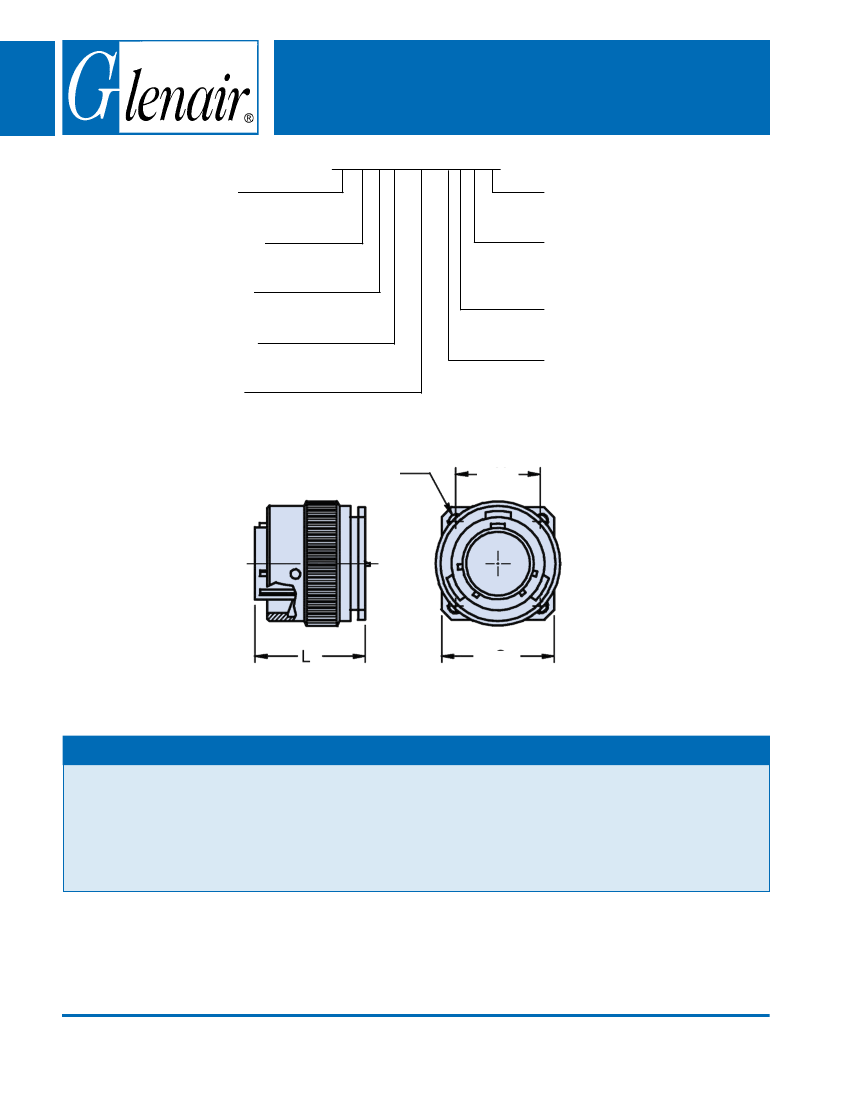

IPT 26 A

Box Mount Rear Flange Plug Connector

IPT G 26 A 18-11 S Z C XX

MIL-C-26482

Series l Type

Grounding Finger

(Omit for Standard)

26 - Box Mount

Square Flange Plug

Connector Class

A - Non-Environmental

Shell Size and

Insert Arrangements

Mod Code Options

See Table II

Contact Type

C - Crimp

(Omit for Solder Cup)

Alternate Insert Rotation (W, X, Y, Z)

Omit for Normal

Contact Gender

P - Pin

S - Socket

APPLICATION NOTES

1. Square flange box mount plug connector to be mated with In-line receptacles (IPT01).

2. Connector Class “A” (non-environmental)––no grommet supplied.

3. Standard materials configuration consists of aluminum alloy with stainless steel coupling pins.

4. Standard contact material consists of copper alloy with gold plating over nickel.

5. Standard insert is high insulation synthetic rubber.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-110
