EQSD-020-06.00-TBR-STR-2-F datasheet, PDF

Datasheet> All Categories > The connector> The connector> EQSD-020-06.00-TBR-STR-2-F

EQSD-020-06.00-TBR-STR-2-F: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size997KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EQSD-020-06.00-TBR-STR-2-F Overview

Interconnection Device, ROHS COMPLIANT

EQSD-020-06.00-TBR-STR-2-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Objectid	1660977069
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
compound_id	65715954
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

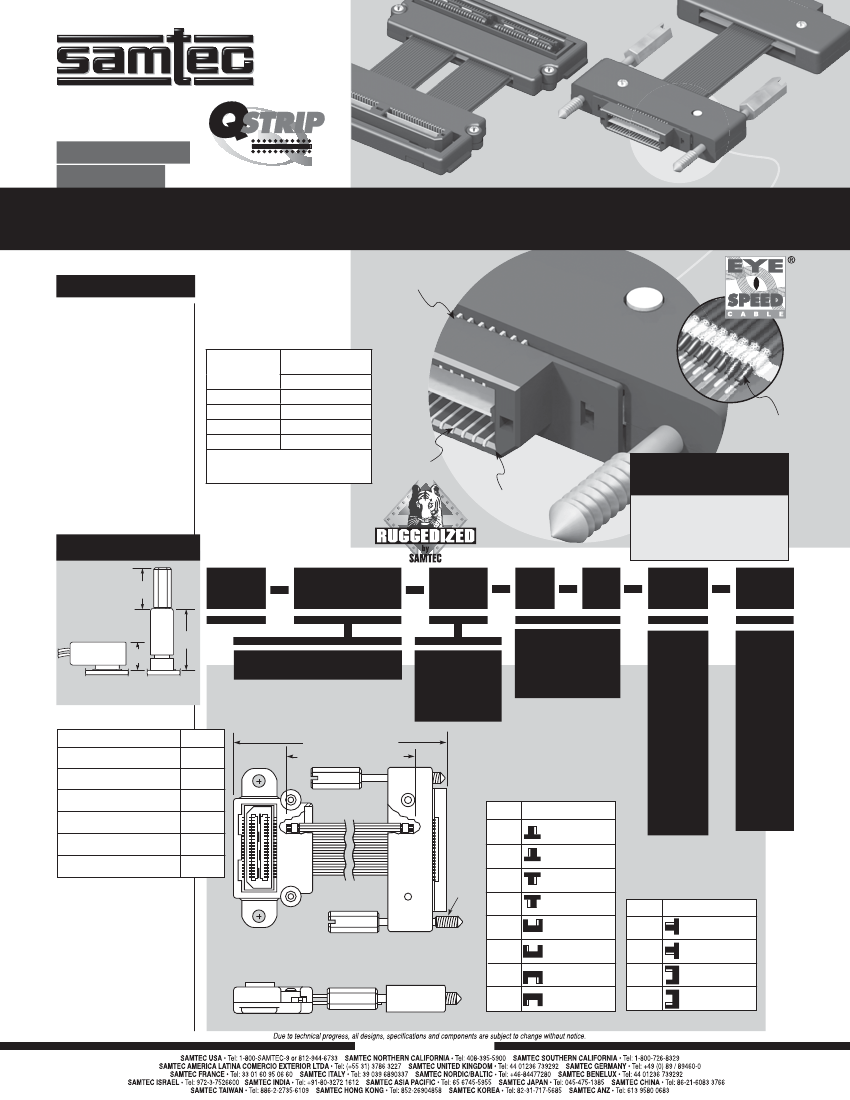

F-213 SUPPLEMENT

(0,80 mm) .0315"

EQSD–020–06.00–TED–TED–1–F

EQSD SERIES

EQSD–040–04.00–TTL–STR–2

HIGH SPEED COAX CABLE ASSEMBLIES

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?EQSD

Signal Routing:

75Ω Single-Ended

Plating:

Au over 50µ" (1,27 µm) Ni

RoHS Compliant:

Yes

Mates with:

QTE, QSE

Surface Mount

or Edge Mount

Cable

Length

6" (152,4 mm)

12" (304,8 mm)

19.68" (0,5 m)

39.37" (1 m)

Rated @ 7dB

Insertion Loss

EQSD

9.21 GHz / 18.42 Gbps

5.62 GHz / 11.24 Gbps

5.11 GHz / 10.22 Gbps

2.96 GHz / 5.92 Gbps

38 AWG

micro ribbon

coax cable

Socket or

Terminal

0,80 mm pitch

Performance and complete test data

available at www.samtec.com?EQSD or

contact sig@samtec.com

APPLICATION

SPECIFIC

• Other sizes and lengths

Screw Mount

• Other terminations

option

• Other wire AWG

Contact Samtec.

APPLICATIONS

(12,70)

.500

EQSD

(16,56)

.652

NO. POSITIONS

PER ROW

WIRE

LENGTH

END

NO. 1

END

NO. 2

WIRING

OPTION

SCREW

OPTION

(9,28)

.365

–020, –040

–“XX.XX”

= Wire Length

in Inches

(43,7 mm) 01.72"

minimum

Processing conditions will

affect mated height.

Specify

END

ASSEMBLIES

from chart

–1

= Pin 1 to

Pin 1

Leave

blank for

no Screw

Option

–2

= Pin 1 to

Pin 2

–F

= End

No. 1

END TO END

Surface Mount to

Surface Mount

Surface Mount to

Edge Mount (Terminal)

Surface Mount to

Edge Mount (Socket)

Edge Mount (Terminal) to

Edge Mount (Terminal)

Edge Mount (Terminal) to

Edge Mount (Socket)

Edge Mount (Socket) to

Edge Mount (Socket)

Note:

Cable lengths longer than

40.00" (1 meter) are not

supported with S.I. test data.

Note:

Verify part number with

Samtec’s Interactive Cable

Builder at www.samtec.com/

cable_builder/pitch.aspx

Note:

This Series is non-standard,

non-returnable.

(24,13)

.950

(21,21)

.835

(20,47)

.806

(18,29)

.720

(17,55)

.691

(16,81)

.662

OAL = Wire Length +

Wire Length ± (1,27) .050

–3

= Pin 1 to

Second

Last Pin

–S

= End

No. 2

–4

END

SURFACE MOUNT

Terminal, Top,

Notch

Right

Terminal, Top,

Notch

Left

Terminal, Bottom,

Notch

Right

Terminal, Bottom,

Notch

Left

Socket, Top,

Notch

Right

Socket, Top,

Notch

Left

Socket, Bottom,

Notch

Right

Socket, Bottom,

Notch

Left

–B

= Both

Ends

= Pin 1 to

Last Pin

TTR

TTL

#4-40

Thread

TBR

TBL

STR

END

EDGE MOUNT

Terminal, Edge,

Notch

Terminal, Edge,

Notch

Down

Socket, Edge,

Notch

Socket, Edge,

Notch

Down

TEU

TED

SEU

SED

END NO. 1

(–STL SHOWN)

END NO. 2

(–SEU SHOWN)

STL

SBR

SBL

WWW.SAMTEC.COM
