PST600K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> PST600K

PST600K: DescriptionPower Supply Support Circuit, Fixed, 1 Channel, +2.5VV, BIPolar, PBCY3, TO-92A, 3 PIN; CategoryPower/power management The power supply circuit; File Size115KB，5 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

PST600K Overview

Power Supply Support Circuit, Fixed, 1 Channel, +2.5VV, BIPolar, PBCY3, TO-92A, 3 PIN

PST600K Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Parts packaging code	TO-92A
package instruction	TO-92, SIP3,.1,50
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DETECTION THRESHOLD VOLTAGE IS 2.5V
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	O-PBCY-T3
Number of channels	1
Number of functions	1
Number of terminals	3
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TO-92
Encapsulate equivalent code	SIP3,.1,50
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum supply current (Isup)	0.13 mA
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Threshold voltage nominal	+2.5V

Preview

Download Datasheet

View All

MITSUMI

System Reset PST600

System Reset

Monolithic IC PST600

Outline

This IC operates in a variety of CPU systems and other logic systems by detecting power supply voltage, so

that the system can be reset accurately when power is turned on or when power is momentarily cut. PST572

and others perform the same function as does this series, but this IC is a low reset type system resetting IC

which follows load current so that circuit current flow increases for ON, and has low current consumption for

both ON and OFF.

Features

1. Follows load current so that circuit current flow increases for ON, and has low current consumption for

both ON and OFF.

No load : I

CCL

=7µA typ.; I

CCH

=5µA typ.

2. Low operating limit voltage

0.65V typ.

3. Hysteresis voltage provided in detection voltage 50mV typ.

4. The following 10 ranks of detection voltages are available.

PST600 C : 4.5V typ.

H : 3.1V typ.

D : 4.2V typ.

I : 2.9V typ.

E : 3.9V typ.

J : 2.7V typ.

F : 3.6V typ.

K : 2.5V typ.

G : 3.3V typ.

L : 2.3V typ.

Package

MMP-3A (PST600 M)

TO-92A (PST600 )

contains detection voltage rank.

Applications

1. Microcomputers, CPU, MPU reset circuits

2. Logic circuit reset circuits

3. Battery voltage check circuits

4. Back-up power supply switching circuits

5. Level detection circuits

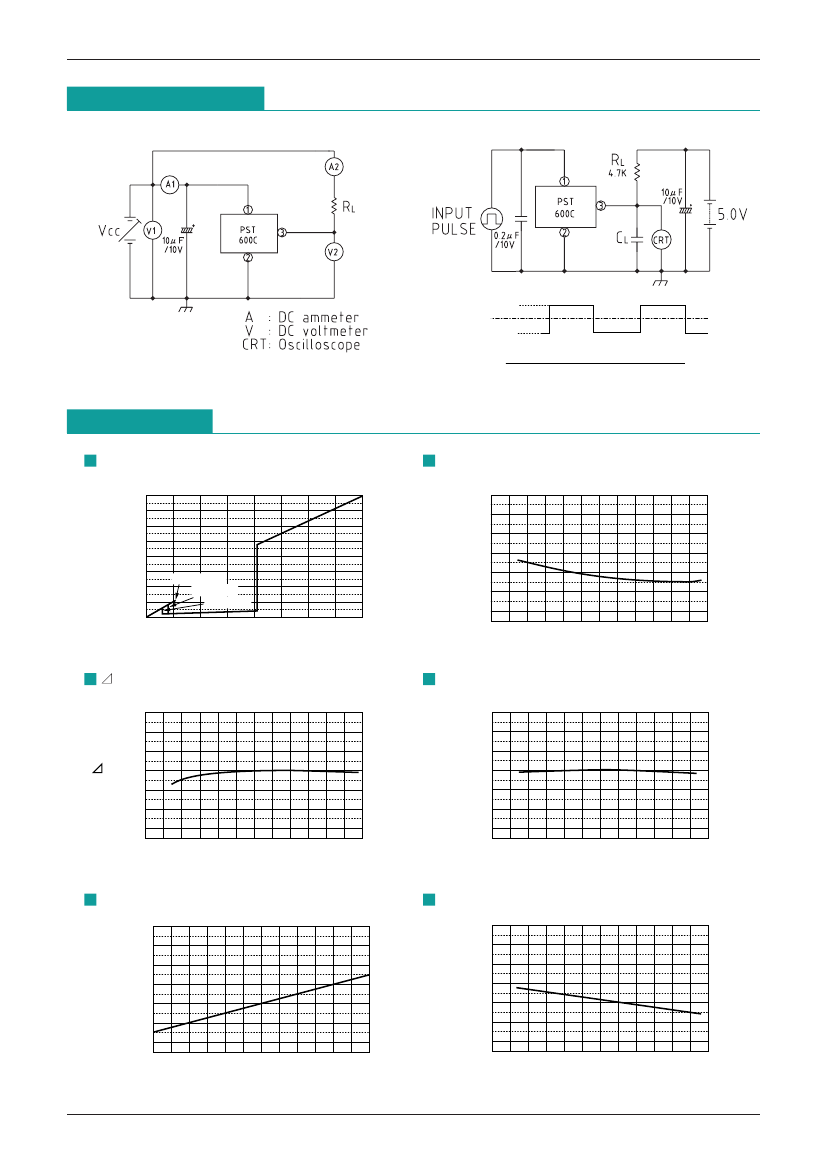

Equivalent Circuit

PST600K Related Products

	PST600K	PST600C	PST600LM	PST600FM	PST600DM	PST600HM	PST600EM	PST600GM	PST600IM	PST600JM
Description	Power Supply Support Circuit, Fixed, 1 Channel, +2.5VV, BIPolar, PBCY3, TO-92A, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, +4.5VV, BIPolar, PBCY3, TO-92A, 3 PIN	Power Supply Support Circuit, Fixed, 1 Channel, +2.3VV, BIPolar, PDSO3, MMP-3A	Power Supply Support Circuit, Fixed, 1 Channel, +3.6VV, BIPolar, PDSO3, MMP-3A	Power Supply Support Circuit, Fixed, 1 Channel, +4.2VV, BIPolar, PDSO3, MMP-3A	Power Supply Support Circuit, Fixed, 1 Channel, +3.1VV, BIPolar, PDSO3, MMP-3A	Power Supply Support Circuit, Fixed, 1 Channel, +3.9VV, BIPolar, PDSO3, MMP-3A	Power Supply Support Circuit, Fixed, 1 Channel, +3.3VV, BIPolar, PDSO3, MMP-3A	Power Supply Support Circuit, Fixed, 1 Channel, +2.9VV, BIPolar, PDSO3, MMP-3A	Power Supply Support Circuit, Fixed, 1 Channel, +2.7VV, BIPolar, PDSO3, MMP-3A
Maker	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.
Parts packaging code	TO-92A	TO-92A	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	TO-92, SIP3,.1,50	TO-92, SIP3,.1,50	SOP, SOP3/6,.2	SOP, SOP3/6,.2	SOP, SOP3/6,.2	SOP, SOP3/6,.2	SOP, SOP3/6,.2	SOP, SOP3/6,.2	SOP, SOP3/6,.2	SOP, SOP3/6,.2
Contacts	3	3	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DETECTION THRESHOLD VOLTAGE IS 2.5V	DETECTION THRESHOLD VOLTAGE IS 4.5V	DETECTION THRESHOLD VOLTAGE IS 2.3V	DETECTION THRESHOLD VOLTAGE IS 3.6V	DETECTION THRESHOLD VOLTAGE IS 4.2V	DETECTION THRESHOLD VOLTAGE IS 3.1V	DETECTION THRESHOLD VOLTAGE IS 3.9V	DETECTION THRESHOLD VOLTAGE IS 3.3V	DETECTION THRESHOLD VOLTAGE IS 2.9V	DETECTION THRESHOLD VOLTAGE IS 2.7V
Adjustable threshold	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	O-PBCY-T3	O-PBCY-T3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of channels	1	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-92	TO-92	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Encapsulate equivalent code	SIP3,.1,50	SIP3,.1,50	SOP3/6,.2	SOP3/6,.2	SOP3/6,.2	SOP3/6,.2	SOP3/6,.2	SOP3/6,.2	SOP3/6,.2	SOP3/6,.2
Package shape	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CYLINDRICAL	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA
surface mount	NO	NO	YES	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	BOTTOM	BOTTOM	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Threshold voltage nominal	+2.5V	+4.5V	+2.3V	+3.6V	+4.2V	+3.1V	+3.9V	+3.3V	+2.9V	+2.7V
length	-	-	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm
Maximum seat height	-	-	1.85 mm	1.85 mm	1.85 mm	1.85 mm	1.85 mm	1.85 mm	1.85 mm	1.85 mm
width	-	-	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm
