CT1210F-R36M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CT1210F-R36M

CT1210F-R36M: DescriptionGeneral Purpose Inductor, 0.36uH, 20%, 1 Element, DIP, ROHS COMPLIANT; CategoryPassive components inductor; File Size198KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CT1210F-R36M Overview

General Purpose Inductor, 0.36uH, 20%, 1 Element, DIP, ROHS COMPLIANT

CT1210F-R36M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.0008 Ω
Nominal inductance(L)	0.36 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CT1210F
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

DIP Inductors - Shielded

ctparts.com

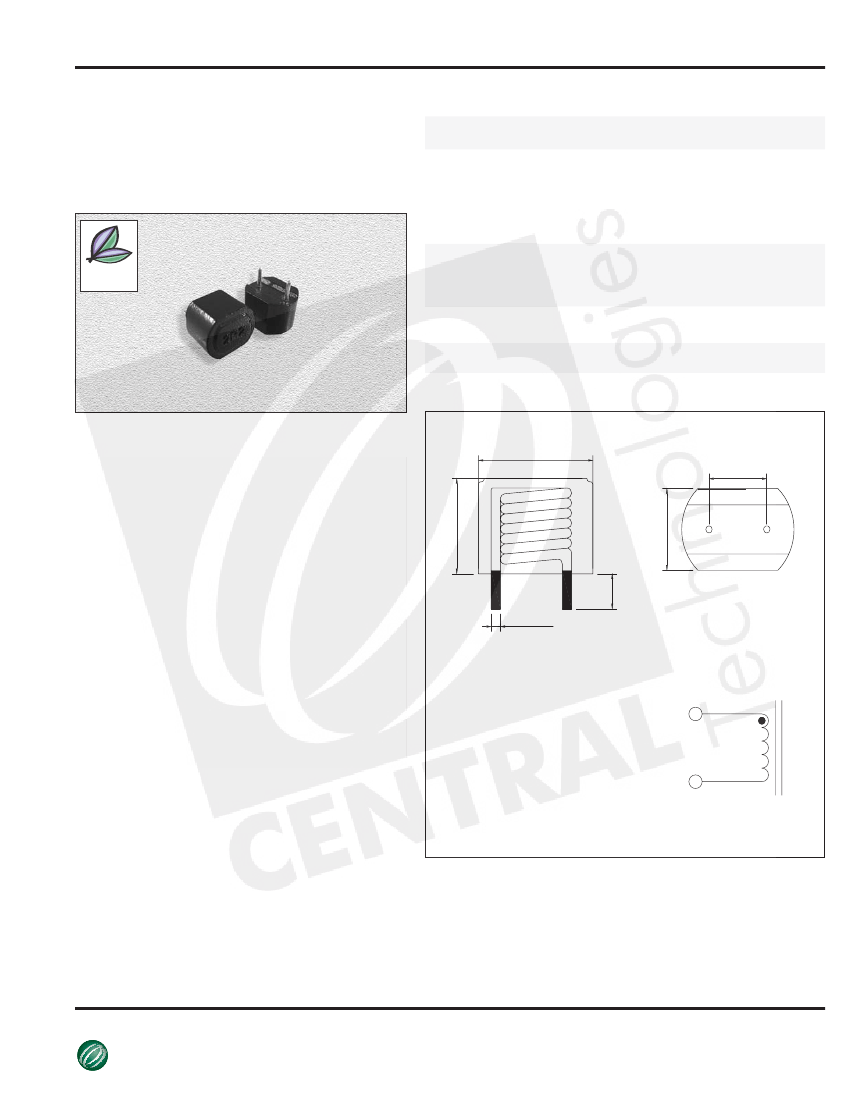

SPECIFICATIONS

CT1210F Series

From 0.22 µH to 4.7 µH

Not shown at actual size.

Part

Number

CT1210F-R22M

CT1210F-R33M

CT1210F-R36M

CT1210F-R39M

CT1210F-R47M

CT1210F-R56M

CT1210F-R60M

CT1210F-R68M

CT1210F-R80M

CT1210F-1R0M

CT1210F-1R5M

CT1210F-2R2M

CT1210F-2R8M

CT1210F-3R3M

CT1210F-4R7M

Inductance

±20%

(µH)

0.22

0.33

0.36

0.39

0.47

0.56

0.60

0.68

0.80

1.00

1.50

2.20

2.80

3.30

4.70

DCR

Typ.

(mΩ)

0.50

0.70

0.85

1.10

1.75

3.00

4.30

5.60

6.80

8.80

DCR

Max.

(mΩ)

0.60

0.80

1.00

1.25

2.00

3.50

5.00

6.40

7.70

10.00

Isat

Typ.

(A)

Irms

Typ.

(A)

38.0

33.0

30.0

26.0

21.0

16.0

13.6

12.3

11.2

10.0

Dim. “H”

Max.

(mm)

7.5

8.6

10.0

Pin Dim.

±0.2

(mm)

1.4

1.5

1.4

1.2

1.0

0.9

0.8

Compliant

RoHS

PHYSICAL DIMENSIONS

Size

inches

12.3±0.5

0.484±0.02

10.2±0.5

0.402±0.02

3.4±0.5

0.134±0.02

8.0±0.5

0.315±0.02

CHARACTERISTICS

Description:

DIP (shielded) power inductors

Applications:

Motherboards for laptop and desktop computers &

DC/DC converters

Operating Temperature:

-25°C to +125°C

Inductance Tolerance:

±20%

Testing:

Inductance tested at 100kHz, 0.1V

Packaging:

Bulk packaged

Marking:

Marked with inductance code

Isat:

The value of current indicates that inductance drops 20%

typ. from it’s initial value without DC current.

Irms:

The value of current indicates that the temperature of the

coil increases 40°C typ.

Features:

* Shielded construction

* High current rating up to 38Adc

* High frequency range up to 500kHz

* Very low DC resistance

* Low noise

Miscellaneous:

RoHS Compliant.

Samples available. See website for ordering information.

Pin Dim.

04.22.09

CENTRAL

Manufacturer of Passive Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

TECHNOLOGIES
