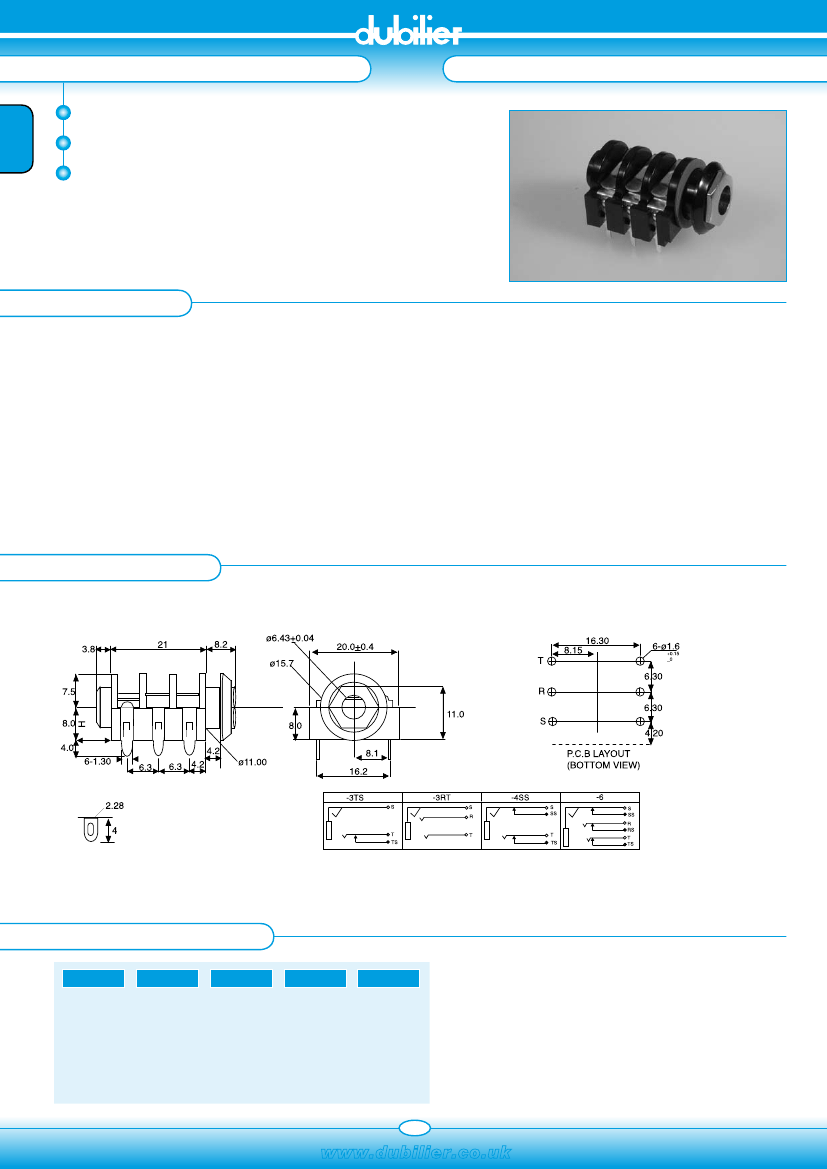

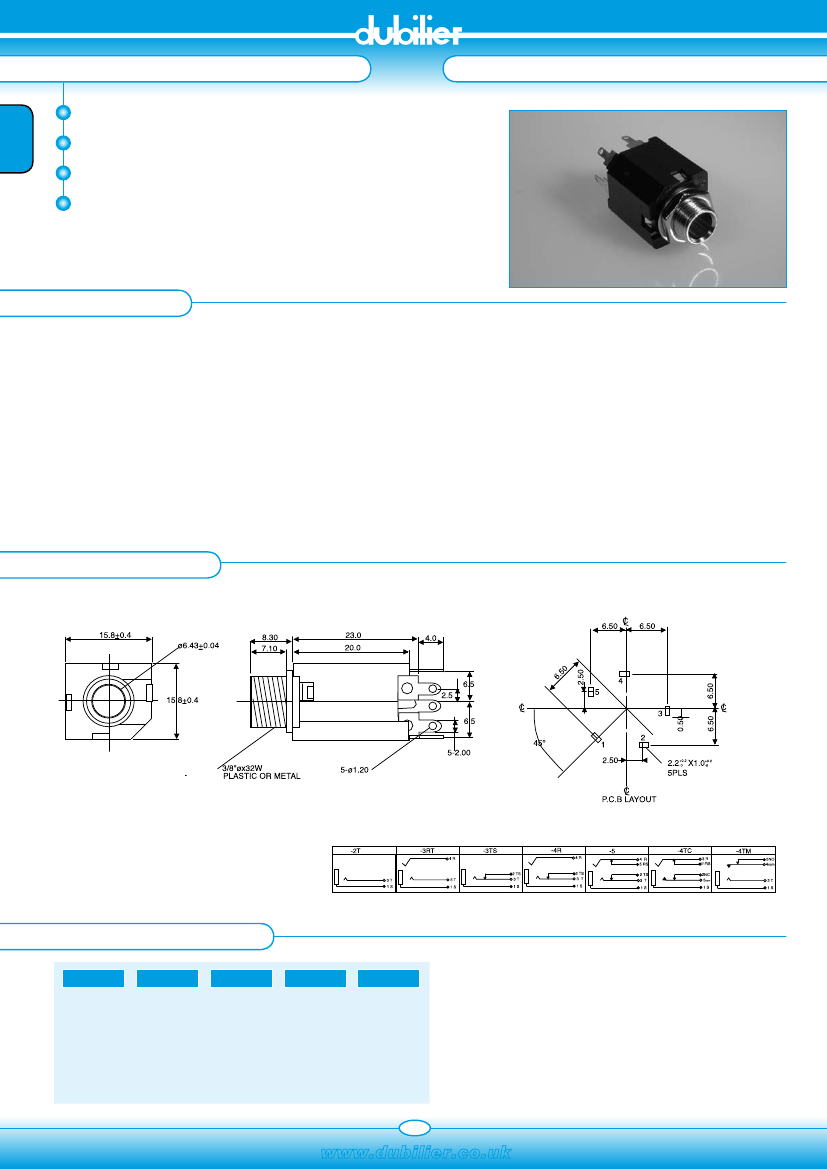

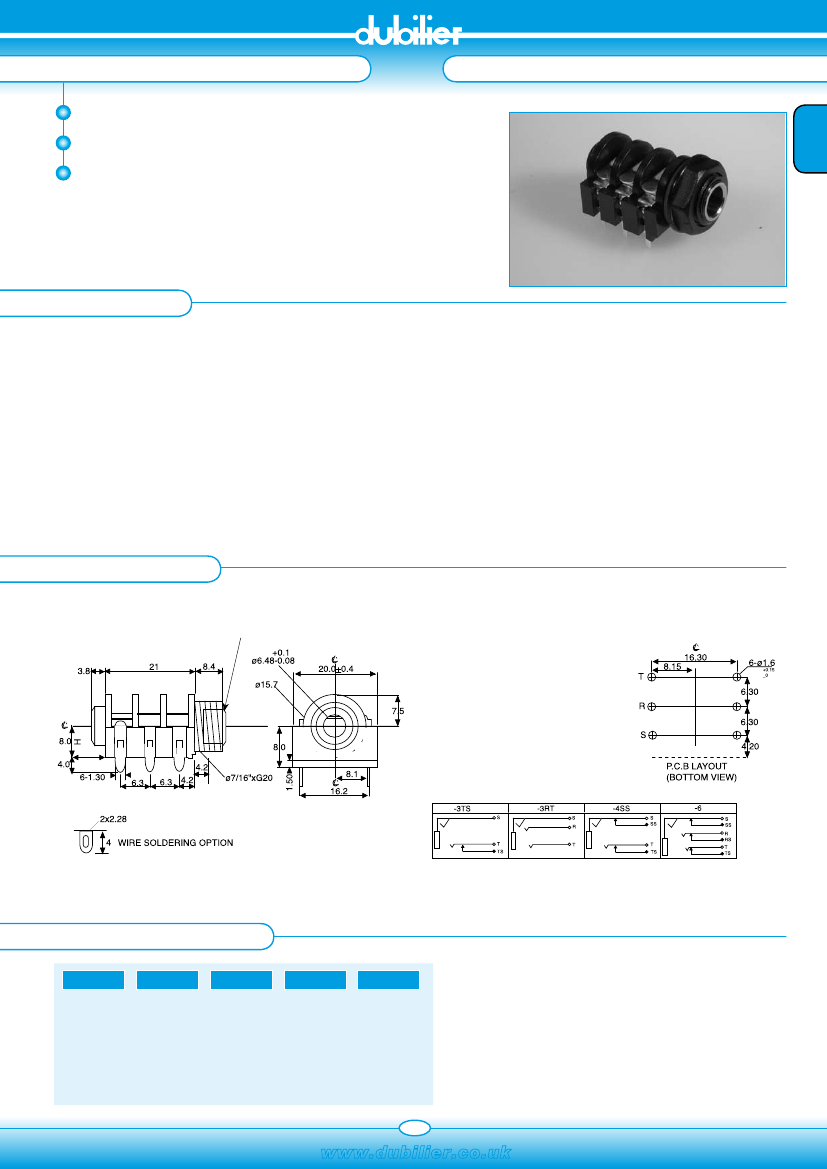

AUDIO
Competitively priced
Industry Compatible
PCB Mounting
Available in plastic or metal bushing
PCB 6.4 Ø HEADPHONE JACK
SECTION 6
SPECIFICATION
Contact resistance (DCR 0.1A)
1, Initial, before any testing:
2, After life test with mating plug:
Insertation Force:
Extraction Force:
Soldering Heat:
Operating Temperature range:
Insulating Resistance:
Voltage Test:
Lifetime:
Rated Voltage:
Rated Current:
(1) Between the terminals (NC): 30mΩ
(2) Plug to sleeve, tip ,ring (NO) contact: 50mΩ
(1) Between the terminals (NC): 60mΩ
(2) Plug to sleeve, tip, ring (NO) contact: 100mΩ
0.3kg - 3.0kg
Terminals must withstand a 500g minimum pull for 10 seconds
0.3kg - 3.0kg
before movement or break from housing occurs
Terminal for PC board temperature: 260 ± 5˚C for 5 ± 1.0 seconds
-25˚C to 100˚C
More than 100MΩ by 500v DC at 90 - 95% RH, 40˚C
Withstand 0.5mA 500v AC between any open terminal for one minute
Withstand more than 5000 cycle’s insertion and withdrawal with testing plug
16vdc
20mA - 0.3A
OUTLINE DRAWING
ORDERING INFORMATION
DBC
Dubilier
Connectors
HJ
6.4Ø Earphone
Socket
Connector
0695
Series
Bushing
Blank = Plastic
M = Metal
-2T
Contacts
-2T
-3RT
-3TS
-4R
-4TC
-4TM
--5
152
www.dubilier.co.uk
AUDIO
Competitively priced
Industry Compatible
PCB Mounting or Wire Soldering
PCB 6.4Ø HEADPHONE JACK
SECTION 6
SPECIFICATION
Contact resistance (DCR 0.1A)
1, Initial, before any testing:
2, After life test with mating plug:
Insertation Force:
Extraction Force:
Soldering Heat:
Operating Temperature range:
Insulating Resistance:
Voltage Test:
Lifetime:
Rated Voltage:
Rated Current:
(1) Between the terminals (NC): 30mΩ
(2) Plug to sleeve, tip ,ring (NO) contact: 50mΩ
(1) Between the terminals (NC): 60mΩ
(2) Plug to sleeve, tip, ring (NO) contact: 100mΩ
0.3kg - 3.0kg
Terminals must withstand a 500g minimum pull for 10 seconds
0.3kg - 3.0kg
before movement or break from housing occurs
Terminal for PC board temperature: 260 ± 5˚C for 5 ± 1.0 seconds
-25˚C to 100˚C
More than 100MΩ by 500v DC at 90 - 95% RH, 40˚C
Withstand 0.5mA 500v AC between any open terminal for one minute
Withstand more than 5000 cycle’s insertion and withdrawal with testing plug
16vdc
20mA - 0.3A
OUTLINE DRAWING
METAL RING
TS
RS
SS
ORDERING INFORMATION
DBC
Dubilier
Connectors
HJ
6.4ø Headphone
Socket
Connector
0661
Series
Pin Configuration
Blank = PCB Type
S = Wire Soldering
-3TS
Contacts
-3TS
-3RT
-4SS
-6
153
www.dubilier.co.uk
AUDIO
Competitively priced
Industry Compatible
PCB Mounting or Wire Soldering
PCB 6.4Ø HEADPHONE JACK
SECTION 6
SPECIFICATION
Contact resistance (DCR 0.1A)
1, InItial, before any testing:
2, After life test with mating plug:
Insertation Force:
Extraction Force:
Soldering Heat:
Operating Temperature range:
Insulating Resistance:
Voltage Test:
Lifetime:
Rated Voltage:
Rated Current:
(1) Between the terminals (NC): 30mΩ
(2) Plug to sleeve, tip ,ring (NO) contact: 50mΩ
(1) Between the terminals (NC): 60mΩ
(2) Plug to sleeve, tip, ring (NO) contact: 100mΩ
0.3kg - 3.0kg
Terminals must withstand a 500g minimum pull for 10 seconds
0.3kg - 3.0kg
before movement or break from housing occurs
Terminal for PC board temperature: 260 ± 5˚C for 5 ± 1.0 seconds
-25˚C to 100˚C
More than 100MΩ by 500v DC at 90 - 95% RH, 40˚C
Withstand 0.5mA 500v AC between any open terminal for one minute
Withstand more than 5000 cycle’s insertion and withdrawal with testing plug
16vdc
20mA - 0.3A
OUTLINE DRAWING
TS
RS
SS
ORDERING INFORMATION
DBC
Dubilier
Connectors
HJ
6.4Ø Earphone
Socket
Connector
0664
Series
Pin
Configuration
Blank = PCB
Type
S = Wire
Soldering
-3TS
Contacts
-3RT
-3TS
-4SS
--6
154
www.dubilier.co.uk
