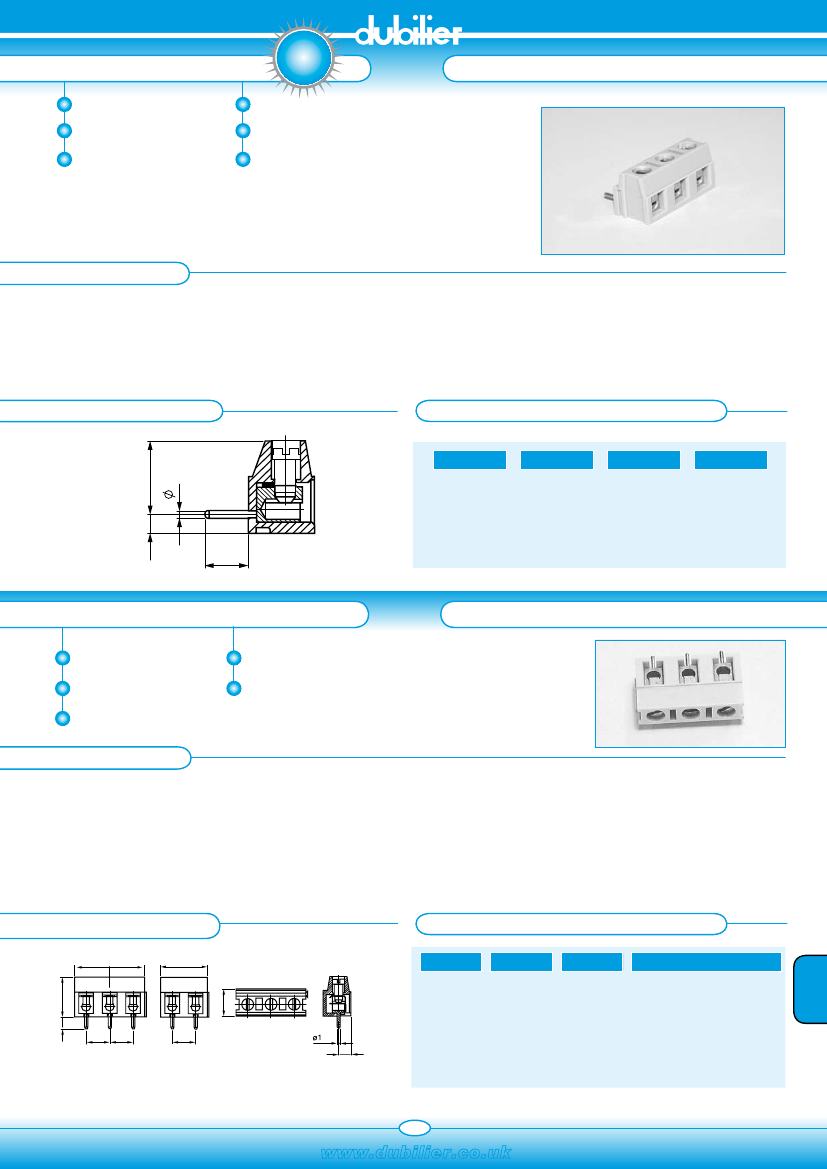

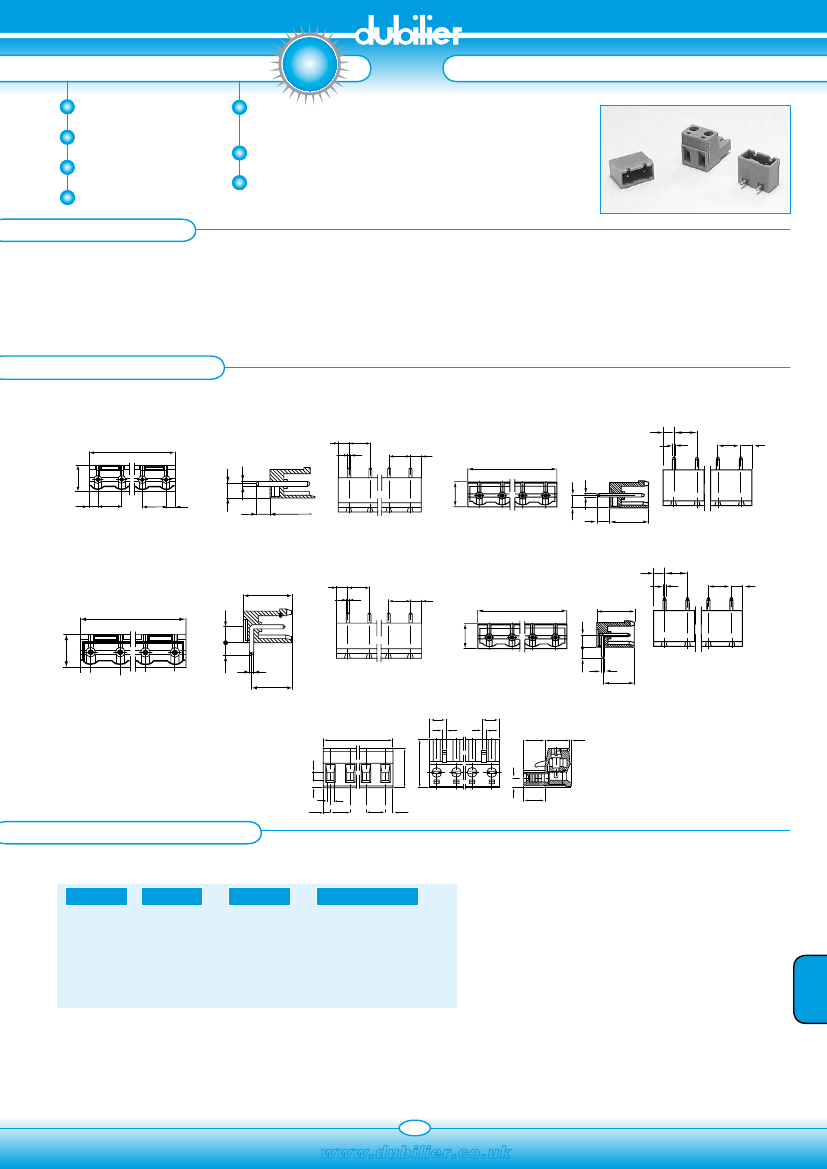

T
•
P
7.5mm Pitch
Flame Retardant Material
2.5mm2 wire acceptance
UL/ CSA approved
Interlocking
Screw Terminal
SPECIFICATION
Rating:
Dielectric Strength:
Insulation Resistance:
Working temperature:
Short Period:
Moulding:
17.5A/750V
≥3KV/60sec
≥5MΩ
-20°C to 125°C
160°
UL94V-0 flame retardant Lexan
Pin/terminal:
Wire protector:
Screw/torque:
Recommended PCB
hole size:
5µ tinned, nickel plated brass
Nickel plated brass
M3 steel, 6µ zinc colour passivated and
tropicalised/0.5Nm
ø1.1mm
OUTLINE DRAWING
10.4
1
2.6
6
TERMINAL BLOCKS
7.5mm Pitch
Screw Terminal
2 - 12 pole interlocking
2.5mm2 wire acceptance
UL/CE approved
SPECIFICATION
Electrical Characteristics
Rating Current:
Dielectric strength
Insulation resistance
Operating Temperature:
Short period:
Moulding:
17.5A/750V
≥ 3kV/60sec
≥ 5MΩ
-20°C to +125°C
160°C
UL94-V0 flame retardant Lexan
Pin/terminal:
Wire protector:
Screw/torque:
Recommended
PCB hole size:
5µ tinned, nickel plated brass
Nickel plated brass
M3 steel. 6µ zinc colour passivated and
tropicalised/0.5Nm
ø1.1mm
OUTLINE DRAWING
22.5
13
9
4
7.5
7.5
7.5
DU
RO
C
TERMINAL BLOCKS
NEW
DU
RO
C
T
•
P
7.5mm PITCH 90° MOUNT
ORDERING INFORMATION
DBC
Dubilier
Connectors
TB
Series
Terminal Block
87
Style
/2
Nº of Ways
2 = 2 ways
3 = 3 ways
* Other Number of ways are available up to 12
Please consult office for further details
7.5MM PITCH SCREW TERMINAL
ORDERING INFORMATION
DBC
Dubilier
Connectors
0
-0.1
TB
Series
Terminal
Blocks
24
Style
/2
No of Ways
2 = 2ways
3 = 3ways
* other number of ways are available
Please consult the office for
further details
SECTION 18
4
383
www.dubilier.co.uk
TERMINAL BLOCKS

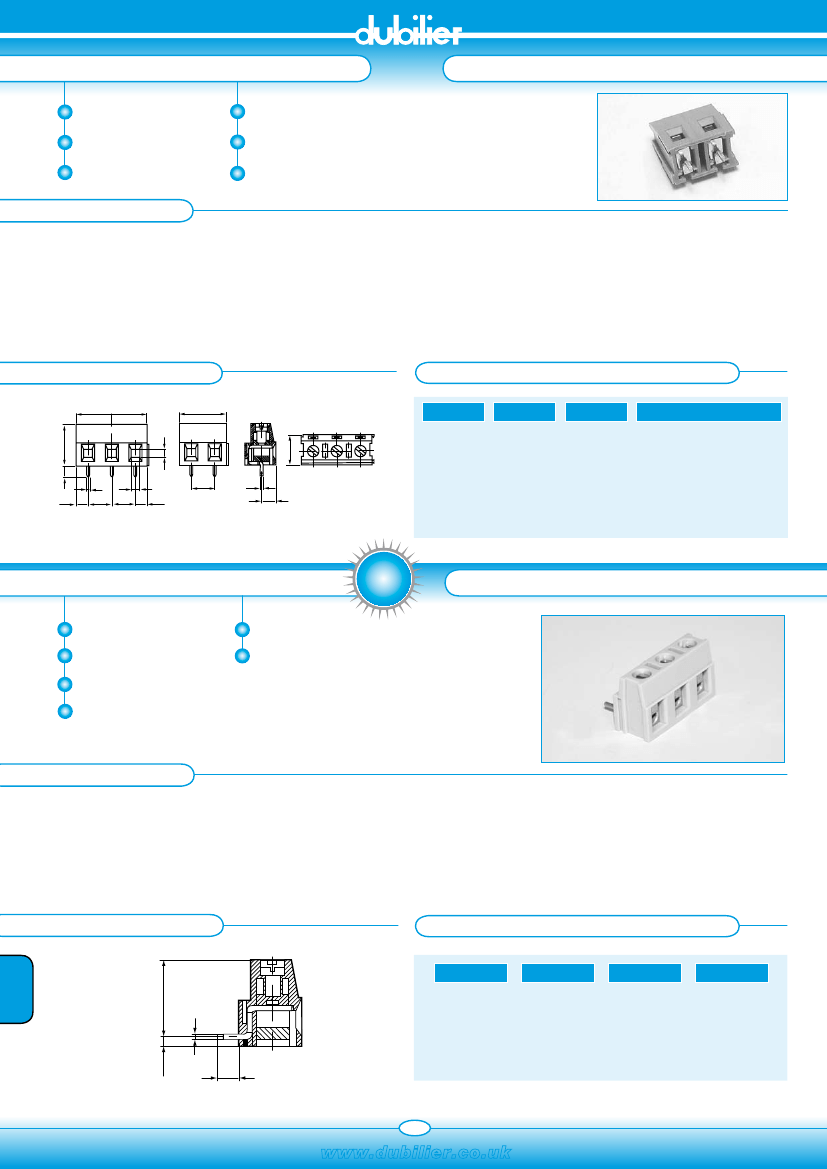

7.5mm Pitch
Rising Clamp Terminal
2 - 12 pole interlocking
2.5mm2 wire acceptance
UL/CE/VDE approved
Colour green
7.5MM PITCH 18 POLE RISING CLAMP
SPECIFICATION
Electrical Characteristics
Rating Current:
Dielectric Voltage:
Insulation Resistance:
Operating Temperature:
Short Period:
20A/750V
≥ 3kV/60sec
≥ 5MΩ
-20°C to +125°C
160°C
Moulding:
Pin/terminal:
Wire clamp:
Screw/torque:
Recommended
PCB hole size:
UL94-V0 flame retardant PA66
5µ tinned, nickel plated brass
Nickel plated brass
M3 steel, 6µ zinc colour passivated and
tropicalised/0.5Nm
ø1.3mm
OUTLINE DRAWING
22.5
15
ORDERING INFORMATION
DBC
9.8
TB
Series
Terminal Blocks
33
Style
/2
No of Ways
2 = 2ways
3 = 3ways
* other number of ways are available
Please consult the office for
further details
Dubilier
Connectors
13.8
3.5
2.7
0.9
3.75
7.5
2.7
7.5
3.75
7.5
0.9
4.6
T
•
P
7.5mm pitch
Flame retardant material
2.5mm2 wire acceptance
Interlocking
Professional rising clamp
UL/ CSA approved
SPECIFICATION
Rating:
Dielectric Strength:
Insulation Resistance:
Working temperature:
Short Period:
Moulding:
Pin/terminal:
20A/750V
≥3KV/60sec
≥5MΩ
-20°C to 125°C
160°
UL94V-0 flame retardant PA66
5µ tinned, nickel plated brass
Wire clamp:
Screw/torque:
Recommended PCB hole
size:
Nickel plated brass
M3 steel, 6 µ zinc colour passivated and
tropicalised/0.5Nm
ø1.3mm
OUTLINE DRAWING
SECTION 18
12.25
0.9
1.55
3.5
www.dubilier.co.uk
DU
RO
C
TERMINAL BLOCKS
NEW
DU
RO
C
T
•
P
7.5mm PITCH 90° MOUNT
ORDERING INFORMATION
DBC
Dubilier
Connectors
TB
Series
Terminal Block
88
Style
/2
Nº of Ways
2 = 2 ways
3 = 3 ways
* Other Number of ways are available up to 12
Please consult office for further details
384
T
•
P
2-12 pole solid block
Closed and open headers
Horizontal female plug style
Moulded in green UL94-V0
flame retardant PA66
2.5mm2 cable entry
UL, CE approved
Professional rising clamp
SPECIFICATION
Electrical Characteristics
Rating Current:
Dielectric Voltage:
Insulation resistance:
Operating Temperature:
Short Period:
12A/750V
≥ 3kVac/60sec
≥ 5MΩ
-20°C to +125°C
160°C
Moulding:
Pin/terminal:
Rising clamp:
Screw/torque:
Recommended
PCB hole size:
8.3
2.54
5.08
5.08
L
3.8
ø1.4mm
3.9
12
OUTLINE DRAWING
DBCTB52A
L
8.3
3.75 7.5
1
7.5 3.75
2.54
1
3.8
1
3.9
12
3.8
2.75
7.5
7.5
2.75
8.3
1
DBCTB53A
12
3.8
3.14 5.08
1
5.08
3.75 P
2.54
1
P
3.75
L
8.3
L
8.3
3.8
3.5
10
3.75
L= Length
3.5
2.54
5.08
5.08
2.54
3.9
1
12
8.3
3.8
1
1
15
18.4
2.9
L
8.3
3.8
2.9
3.8
3.9
12
ORDERING INFORMATION
DBC
Dubilier
Connectors
TB
Series
Terminal Blocks
49
Style
49 = Female
50 = Closed End Str
51 = Closed End R/A
52A = Open End Str
53A = Open End R/A
DU
RO
C
1
2.75
TERMINAL BLOCKS
NEW
DU
RO
C
DBCTB49
P
L
* Other Number of ways are available up to 12
Please consult office for further details
www.dubilier.co.uk
T
•
P
7.5mm PITCH PLUG IN
UL94-V0 flame retardant PA66
5µ tinned phosphor bronze
3.14 5.08
5µ nickel copper flash brass
5.08 2.54
1
M3 steel, 6µ zinc, colour passivated and
tropicalised/0.5Nm
L= Length
DBCTB50
3.75
P
1
P 4.35
L
3.9
12
P = Pitch
3.75
DBCTB51
L
12
P
1
P 4.35
1
10
P = Pitch
P = Pitch
6.5
1.6
1.6
6.5
8.3
9.4
0.7
P 4.35
2.7
P
P
2.75
P = Pitch
8.3
P = Pitch
/2
No of Ways
2 = 2ways
3 = 3ways
etc.
SECTION 18
385
