TERMINAL BLOCKS

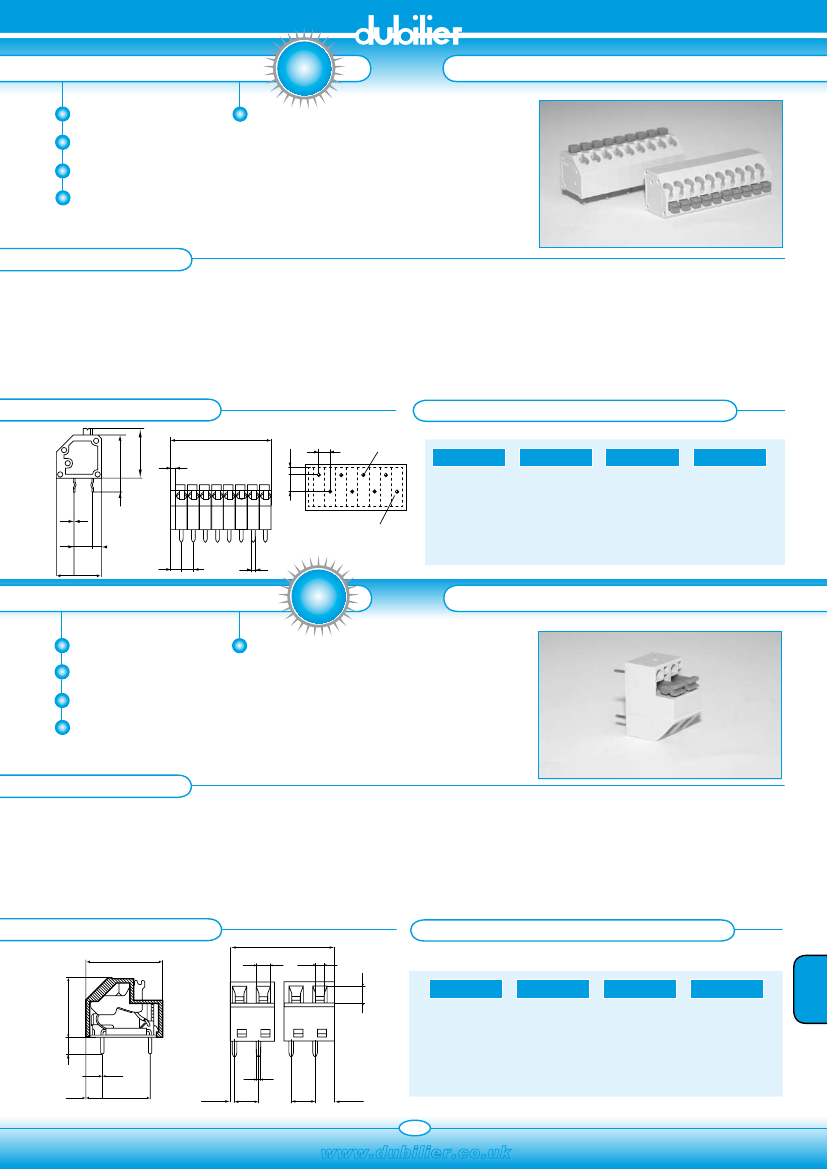

3.5mm and 3.81mm pitch
Interlocking
45 degree cable entry
1.5mm2 wire acceptance
NEW
DU
RO
C
DU
RO
C
UL approved
T
•
P
3.5mm + 3.81mm PITCH - SCREWLESS
SPECIFICATION
Rating:
Dielectric Strength:
Insulation Resistance:
Working temperature:
Moulding:
Pin/terminal:
4A/450V (300V UL) 7
≥2.5KV/60sec
≥5MΩ
-20°C to +110°C
Grey UL94V-0 flame retardant PA68
5µ tinned, nickel plated brass
Recommended PCB hole
size:
ø1mm
OUTLINE DRAWING
L
3.6
11.5
ORDERING INFORMATION
2.3
13.2
1
P
1.5
DBC
Dubilier
Connectors
TB
Series
Terminal Block
70
Style
70 = 3.5mm
77 = 3.81mm
/2
Nº of Ways
2 = 2 ways
3 = 3 ways
0.4
5
12
2.3
3.25
P
0.8
T
•
P
5
1˚ Pin side
* Other Number of ways are available up to 12
Please consult office for further details
5.08mm pitch
2-7 pole solid block
Flame retardant material
0.3 to 1.5mm2 wire acceptance
UL approved
SPECIFICATION
Rating:
Dielectric Strength:
Insulation Resistance:
Working temperature:
Short Period:
Moulding:
Pin/terminal:
12A/250V
≥4KV/60sec
≥5MΩ
-20°C to 125°C
160°C
UL94V-0 flame retardant PA66
5µ tinned, phosphor bronze
Spring:
Recommended PCB hole
size:
Zinc plated steel
ø1.1mm
OUTLINE DRAWING
16.2
3
L
Ø 1.9
3.8
13
3.5
0.5
3.4
10.16
1.05
5.08
1
5.08
4.03
DU
RO
C
TERMINAL BLOCKS
NEW
DU
RO
C
www.dubilier.co.uk
T
•
P
5.08mm PITCH - SCREWLESS
ORDERING INFORMATION
SECTION 18
DBC
Dubilier
Connectors
TB
Series
Terminal Block
41
Style
/2
Nº of Ways
2 = 2 ways
3 = 3 ways
389
T
•
P

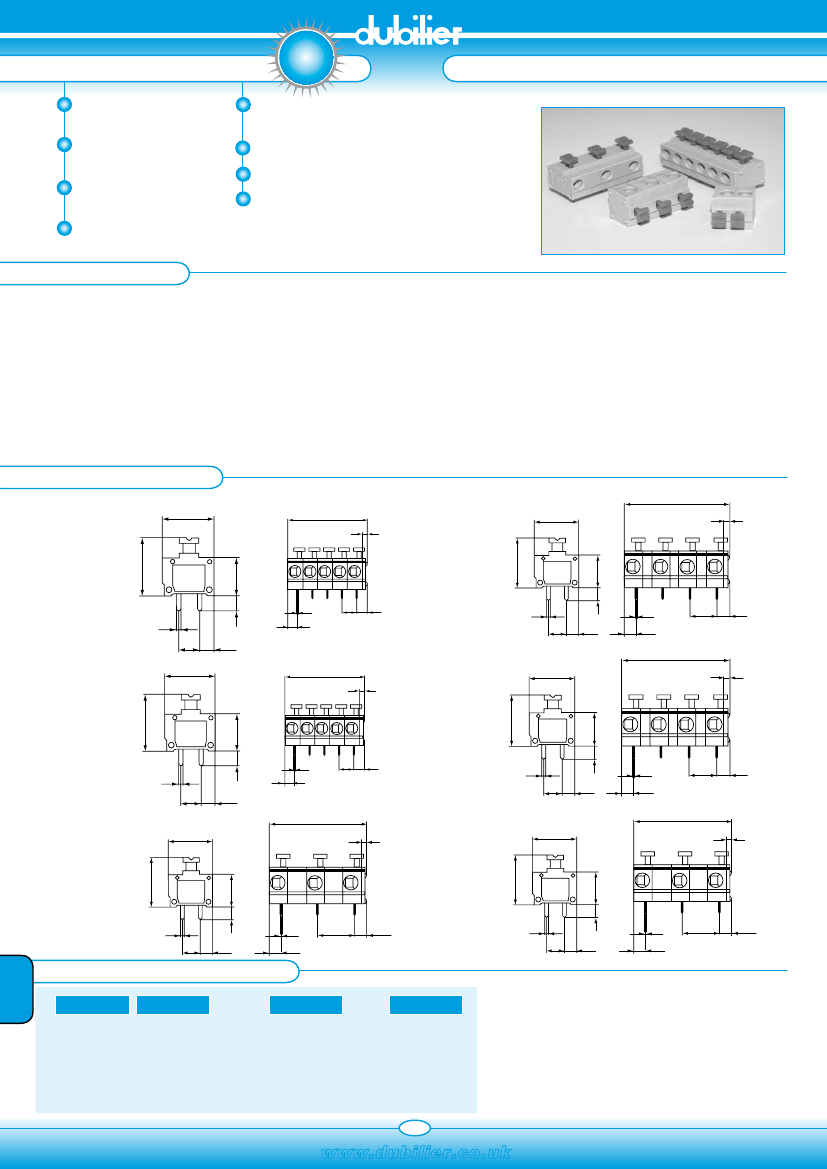

5, 5.08, 7.5, 7.62, 10 and
10.16mm pitch
1-36 poles on 5 & 5.08mm
pitch
1-24 poles on 7.5 & 7.62mm
pitch
1-18 poles on 10 & 10.16mm
pitch
Breakable to desired number of
poles
0.3-1.5mm2 wire acceptance
UL/ VDE/ CE approved
Flame retardant material
SPECIFICATION
Rating:
Dielectric Strength:
Insulation Resistance:
Working temperature:
Short Period:
Moulding:
Pin/terminal:
Spring:
Recommended PCB
hole size:
7.5/7.62/10/10.16
5/5.08
12A/750V
12/250V
≥3KV/60sec
≥2.5KV/60sec
≥5MΩ
-20°C to 125°C
160°
UL94V-0 flame retardant PA66
5µ tinned, phosphor bronze
Zinc plated steel
ø1.1mm
OUTLINE DRAWING
L
12.5
9.2
3.6
0.4
3
5
L = Length
3.5
3.6
9.2
DBCTB54
13.9
13.9
0.8
5
12.5
3.5
L
9.2
3.6
0.4
3.08
5.08
3.5
3.6
9.2
DBCTB75
13.9
13.9
0.8
5
3.5
12.5
9.2
3.6
3.6
9.2
DBCTB93
13.9
13.9
0.8
5
3.5
0.4
3
ORDERING INFORMATION
DBC
Dubilier
Connectors
TB
Series
Terminal Block
Style
54 -5mm
75-5.08mm
91-7.5mm
92-7.62mm
93-10mm
94-10.16mm
DU
RO
C
TERMINAL BLOCKS
NEW
DU
RO
C
T
•
P
L
1.5
5, 5.08, 7.5, 7.62, 10 AND 10.16mm SCREWLESS
12.5
1.5
DBCTB91
0.8
5
3.5
3
0.4
7.5
3.5
L
12.5
1.5
1.5
DBCTB92
0.8
5
3.5
0.4
3.08
L
7.62
3.5
L = Length
L
1.5
12.5
1.5
DBCTB94
10
3.5
0.8
5
3.5
0.4
3.08
10.16
3.5
SECTION 18
54
/2
Nº of Ways
2 = 2 ways
3 = 3 ways
* Other Number of ways are available up to 12
Please consult office for further details
How to calculate lengths
5mm pitch
5.08 pitch
7.5mm pitch
7.62mm pitch
10mm pitch
10.16mm pitch
No.Poles Multiply by 5mm + 1.5mm
No.Poles Multiply by 5.08mm + 1.5mm
No.Poles Multiply by 7.5mm - 1mm
No.Poles Multiply by 7.62mm - 1.04mm
No.Poles Multiply by 10mm - 3.5mm
No.Poles Multiply by 10mm - 3.58mm
390
www.dubilier.co.uk
