BR5133 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR5133

BR5133: Description10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size202KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR5133 Overview

10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

BR5133 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	9 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

BR5133 / SBR5133*

* Part number for additional environmental screening.

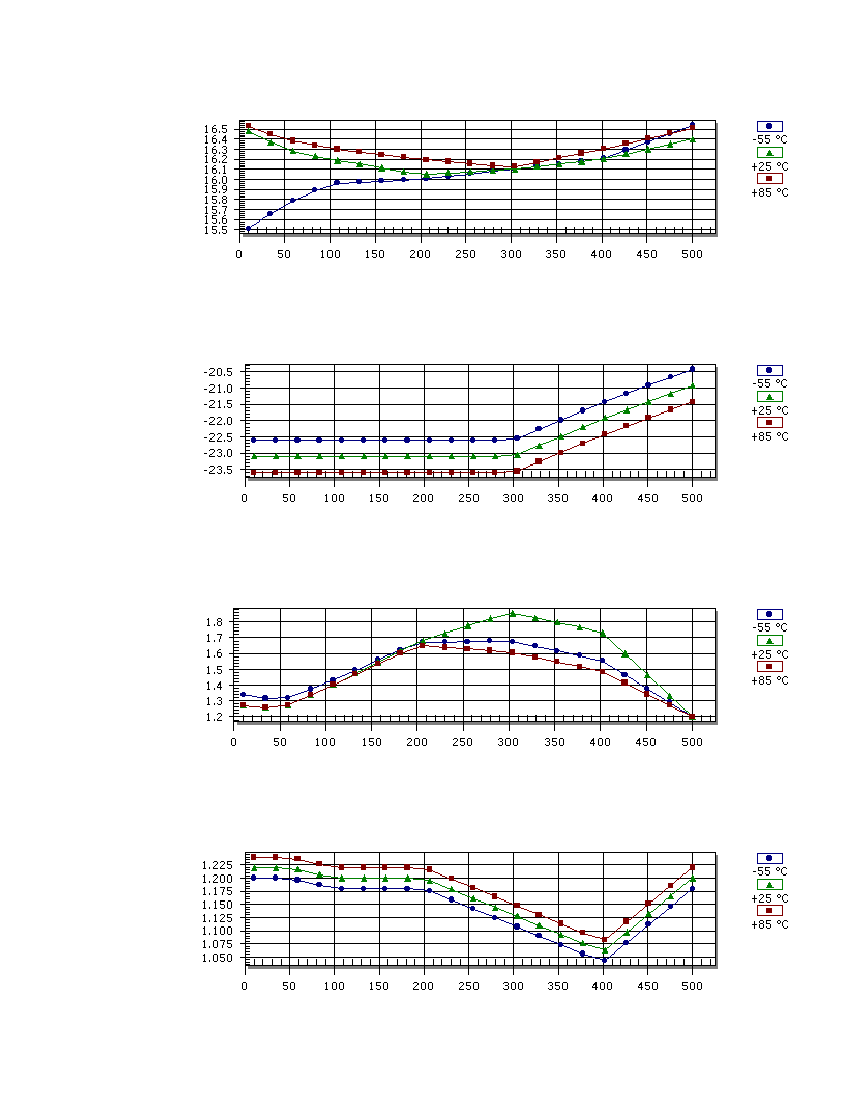

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 500.0 MHz

10.0 dB Typical

9.0 dB Min

3.3 dB Typical

4.5 dB Max

16.0 dBm Typical

14.5 dBm Min

30.0 dBm Typical

45.0 dBm Typical

1.8/2.0 Input Typ/Max

1.2/2.0 Output Typ/Max

-22.0 dB Typical

-21.0 dB Min

15.0 Volts

57.0 mA

-55.0 - 85.0 °C

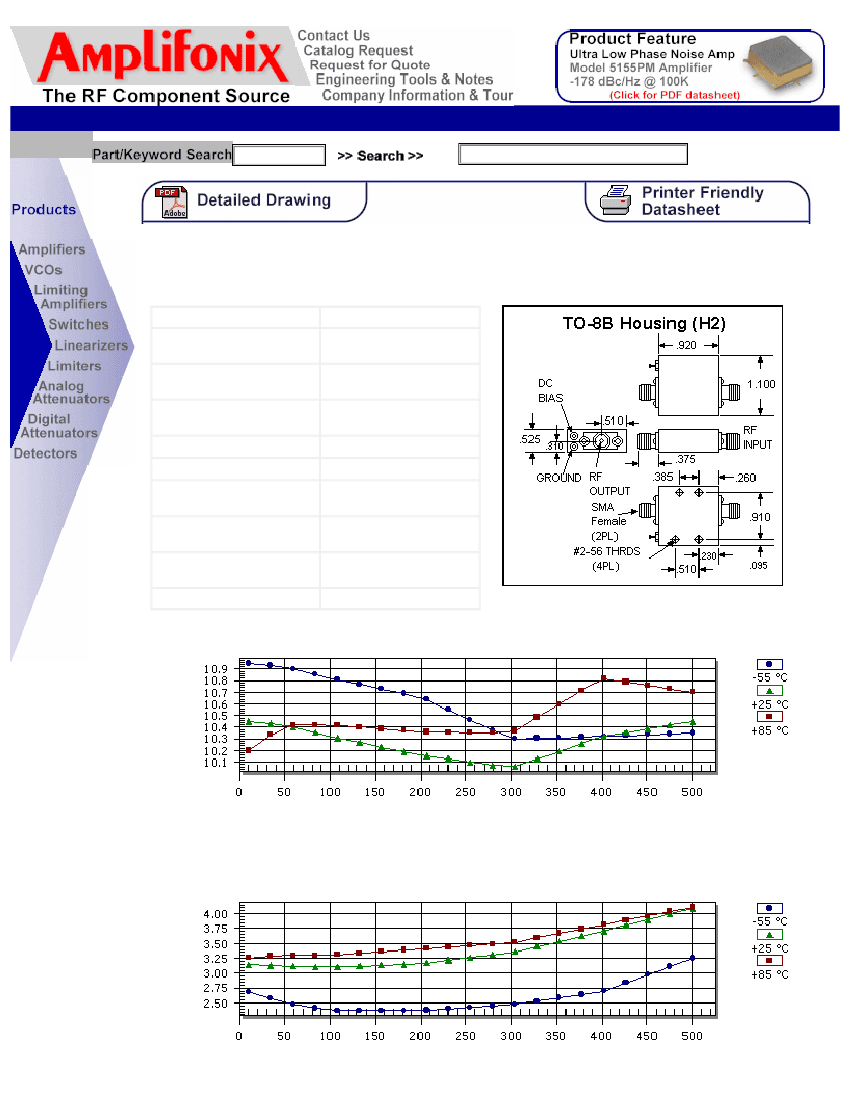

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR5133 Related Products

	BR5133	SBR5133
Description	10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B	10 MHz - 500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	9 dB	9 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
