BX5102: Description5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size627KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX5102 Overview

5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H1

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL
Gain	11 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2

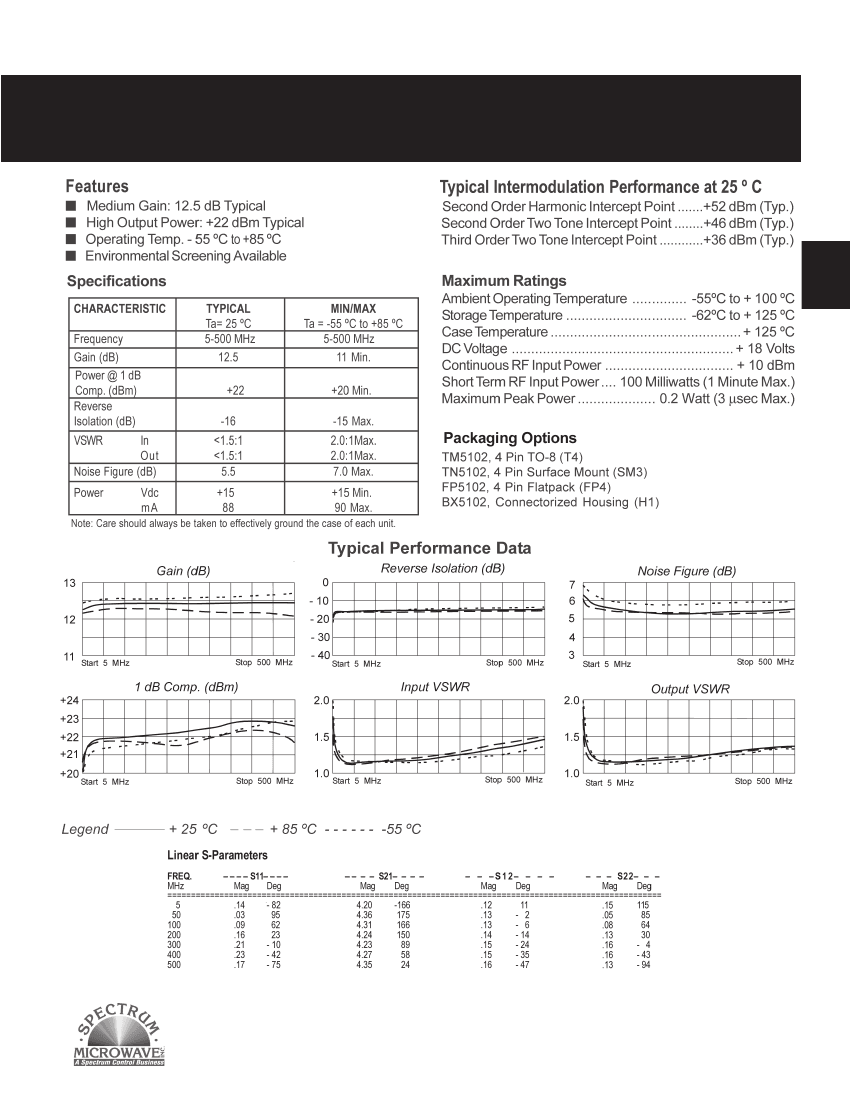

RF Amplifier

Medium Gain: 12.5 dB

Model TM5102

5 to 500 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

183

Amplifiers

	BX5102	FP5102
Description	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H1	5 MHz - 500 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, FP-4
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL	COMPONENT
Gain	11 dB	11 dB
Maximum input power (CW)	10 dBm	10 dBm
Maximum operating frequency	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2
