Datasheet No – PD97524
IRS254(01,11)
LED BUCK REGULATOR CONTROL IC
Features
•
200 V (IRS25401) and 600 V (IRS25411) half
bridge driver
•
Micropower startup (<500
μA)
•
±2% voltage reference
•
140 ns deadtime
•
15.6 V zener clamp on V
CC
•
Frequency up to 500 kHz
•
Auto restart, non-latched shutdown
•
PWM dimmable
•
Small 8-Lead DIP/8-Lead SOIC packages
Product Summary
Topology
V
OFFSET
V
OUT
I
o+
& I
o-
(typical)
t
ON
& t
OFF
(typical)
Deadtime (typical)
Buck
200V,600V
VCC
0.5A/0.7A
50/30nS
140nS
Typical Applications
LED drivers for lamp replacement
LED driver back end current regulator
Packages
8-Lead PDIP
IRS254(01,11)PbF
8-LeadSOIC
IRS254(01,11)SPbF

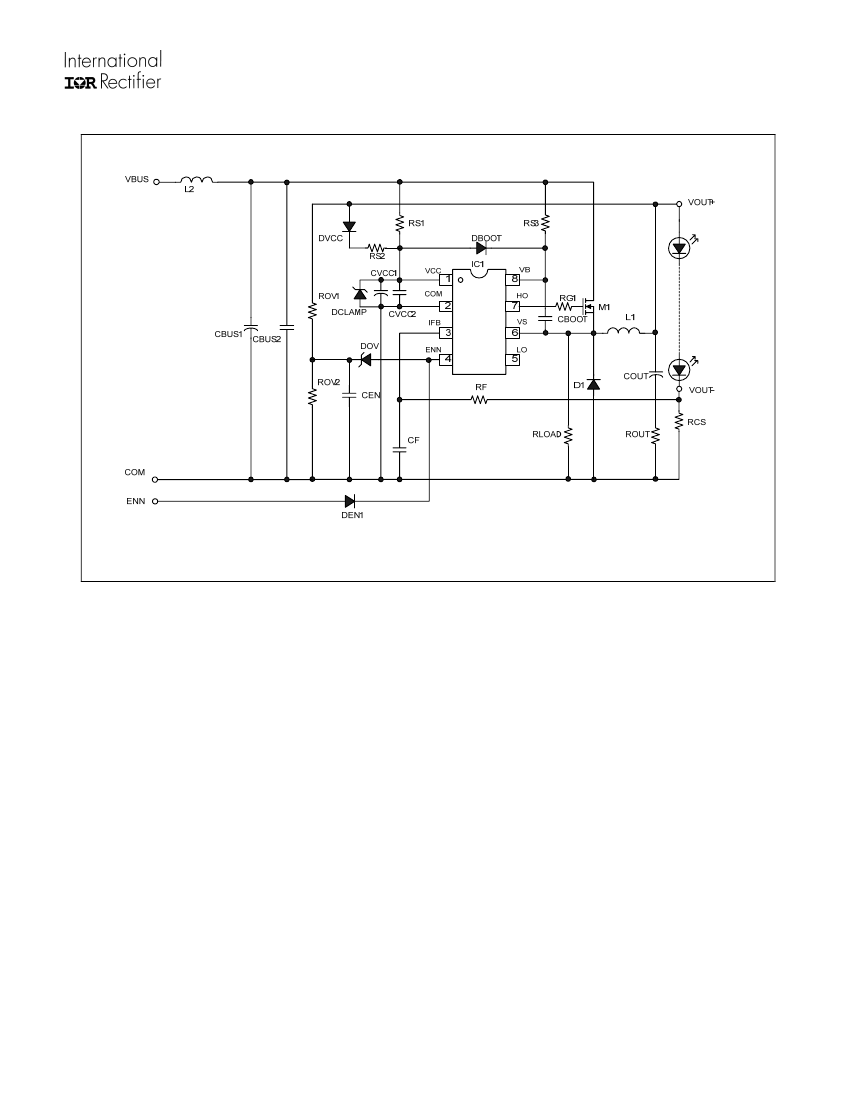

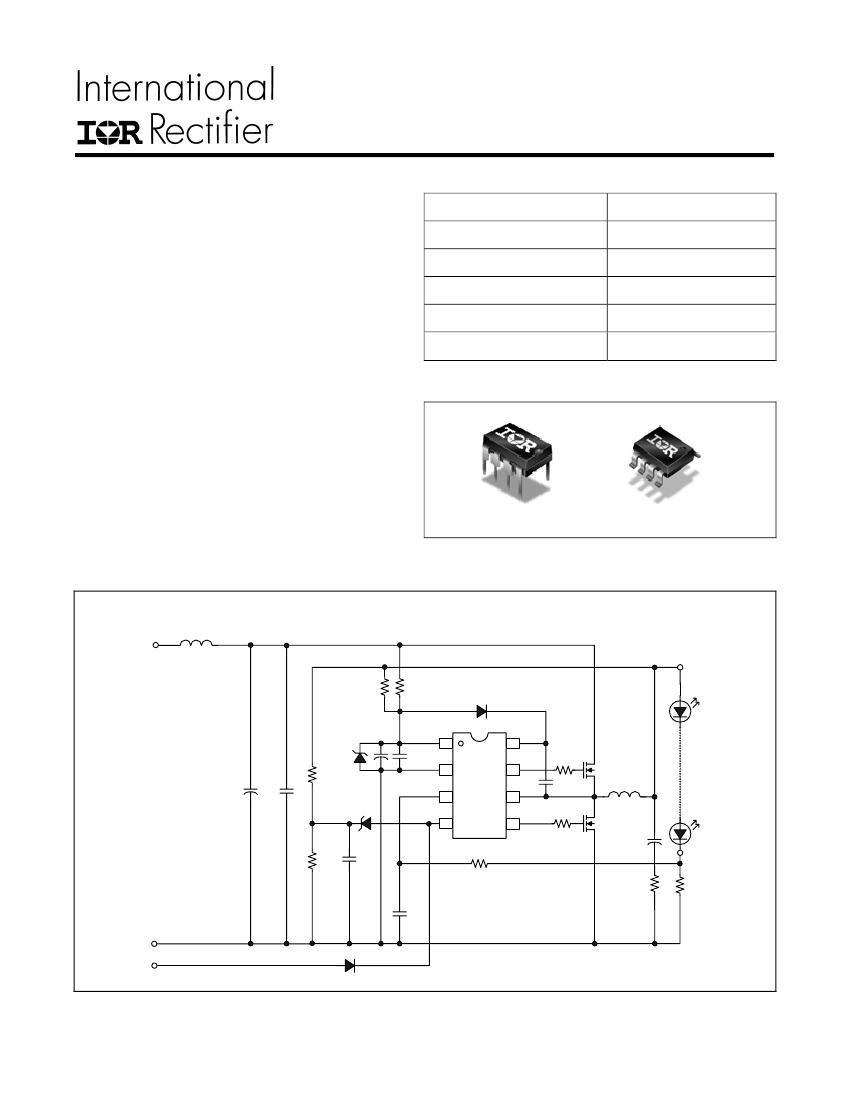

Typical Connection Diagram
VBUS
L2
VOUT
+
RS1
RS2
DBOOT
IC1
CVCC1
ROV1
CBUS2
CBUS1
DOV
ROV2
CEN
RF
ENN
VCC
COM
1
8
VB
IRS25401
DCLAMP
CVCC2
2
IFB
7
6
5
HO
RG1
CBOOT
M1
L1
3
4
VS
LO
M2
RG2
COUT
VOUT
-
RCS
ROUT
CF
COM
EN
DEN1
www.irf.com
© 2010 International Rectifier
IRS254(01,11)(S)
Table of Contents
Description
Qualification Information
Absolute Maximum Ratings
Recommended Operating Conditions
lectrical Characteristics
Functional Block Diagram
Input/Output Pin Equivalent Circuit Diagram
Lead Definitions
Lead Assignments
Application Information and Additional Details
Package Details
Tape and Reel Details
Part Marking Information
Ordering Information
Page
3
5
6
6
7
8
9
10
10
12
17
18
19
20
www.irf.com
© 2010 International Rectifier
2
IRS254(01,11)(S)
Description
The IRS254(01,11) are high voltage, high frequency buck control ICs for constant LED current regulation. They
incorporate a continuous mode time-delayed hysteretic buck regulator to directly control the average load current,
using an accurate on-chip bandgap voltage reference. These parts directly replace the IRS2540 and IRS2541
with improved latch up immunity.
The application is inherently protected against short circuit conditions, with the ability to easily add open-circuit
protection. An external high-side bootstrap circuit drives the buck switching element at high frequencies. A low-
side driver is also provided for synchronous rectifier designs. All functions are realized within a simple 8 pin DIP
or SOIC package.
