Luckylight
3.9×3.0mm Elliptical Wide Angle
Blue LED
Technical Data Sheet
Part No.: LL-434BD2J-B4-2G-T
Spec No: B405X250
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Jun/16/2009
Drawn: Yao
Page: 1 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight
Features:
◇
High luminous intensity output.
◇
Oval shape.
◇
Well defined spatial radiation.
◇
Wide viewing angle (2θ
1/2
): 110
o
/40
o
.
◇
Reliable and robust.
◇
The product itself will remain within RoHS complaint Version.
Descriptions:
◇
This precision optical performance oval LED is specially designed for passenger
information signs.
◇
The LED lamps are available with different colors, intensities.
◇
Superior performance in outdoor environment.
Applications:
◇
Single or dual color graphic signs.
◇
Message boards.
◇
Variable message signs(VMS).
◇
Commercial outdoor advertising.
Spec No: B405X250
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Jun/16/2009
Drawn: Yao
Page: 2 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight
Package Dimension:
Part No.
LL-434BD2J-B4-2G-T
Chip Material
InGaN
Lens Color
Blue Diffused
Source Color
Blue
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.25(.010″)mm unless otherwise noted.
3. Protruded resin is 1.0mm(.04″) max.
4. Specifications are subject to change without notice.
Spec No: B405X250
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Jun/16/2009
Drawn: Yao
Page: 3 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight
Absolute Maximum Ratings at Ta=25℃
Parameters
Power Dissipation
Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)
Forward Current
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature
[4mm (.157″) From Body]
Symbol
PD
IFP
IF
VR
Topr
Tstg
Tsld
Max.
90
100
25
5
Unit
mW
mA
mA
V
-40℃ to +85℃
-40℃ to +100℃
260℃ for 5 Seconds
Electrical Optical Characteristics at Ta=25℃
Parameters
Luminous Intensity
*
Symbol Min. Typ. Max. Unit
IV
X
520
---
---
---
---
---
2.80
---
740
110
40
462
468
25
3.20
---
---
---
Deg
Y
---
---
---
---
3.60
10
nm
nm
nm
V
µA
mcd
Test Condition
IF=20mA (Note 1)
Viewing Angle
*
2θ
1/2
IF=20mA (Note 2)
Peak Emission Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
λp
λd
Δλ
VF
IR
IF=20mA
IF=20mA (Note 3)
IF=20mA
IF=20mA
V
R
=5V
Notes:
1. Luminous Intensity Measurement allowance is ± 10%.
2.
θ
1/2
is the off-axis angle at which the luminous intensity is half the axial luminous
intensity.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and
represents the single wavelength which defines the color of the device.
Spec No: B405X250
Approved: JoJo
Rev No: V.2
Checked: Wu
Date: Jun/16/2009
Drawn: Yao
Page: 4 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
Luckylight

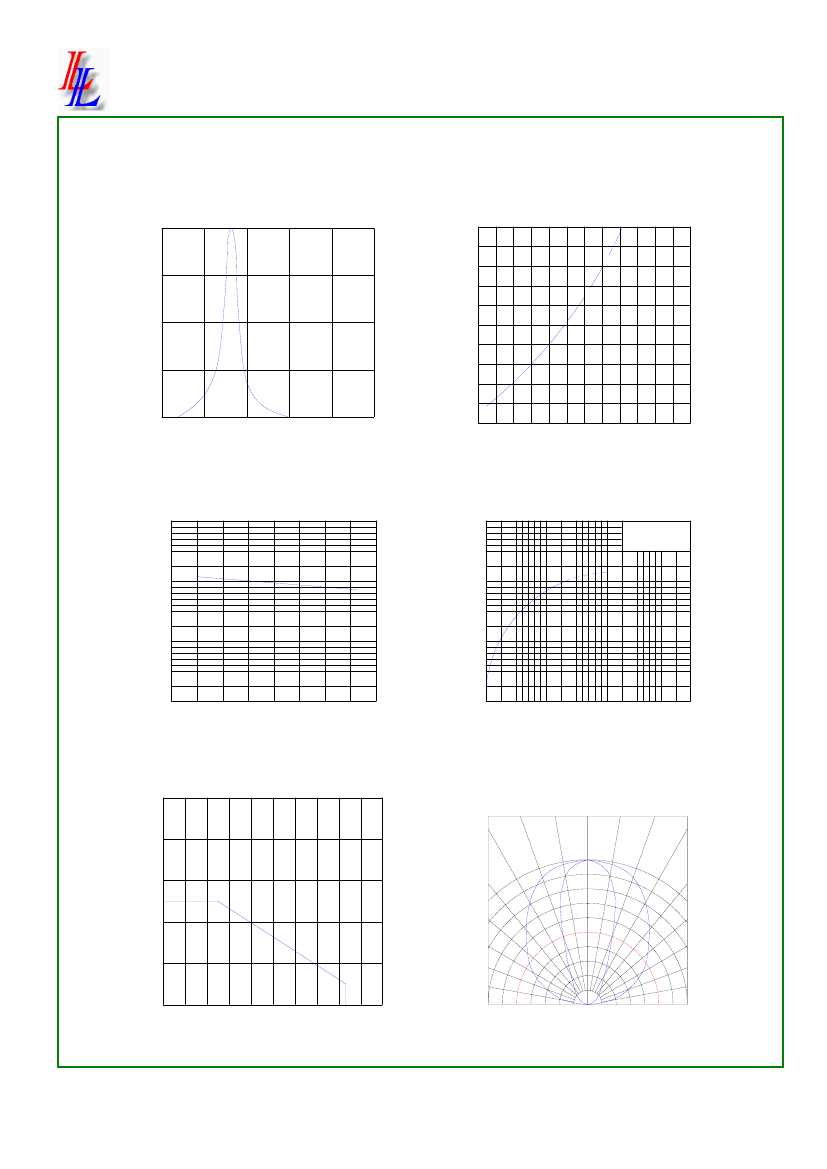

Typical Electrical / Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Spectrum Distribution
Relative Luminous Intensity (%)
100
75
50
25
0
300
Forward Current & Forward Voltage
Ta=25
℃
Ta=25
℃
Forward Current IF (mA)
400 500 600 700
Wavelength
λ
p (nm)
800
50
40
30
20
10
0
2.8 3.0 3.2 3.4 3.6 3.8 4.0
Forward Voltage VF (V)
Relative Luminous Intensity (%)
1000
Relative Luminous Intensity (%)
Luminous Intensity &
Ambient Temperature
Luminous Intensity & Forward Current
Ta=25
℃
1000
f=1KHz
Duty=1/10
100
100
10
10
1
-60 -40 -20 0 20 40 60 80 100
Ambient Temperature Ta (
℃
)
1
0
10
10
10
10
Forward Current IF (mA)
1
2
3
Forward Current Derating Curve
Forward Current IF (mA)
50
40
30
25
20
10
0
0
20
40
60
80 100
Ambient Temperature Ta (
℃
)
Rev No: V.2
Checked: Wu
Radiation Diagram
0
o
10
o
Ta=25
℃
20
o
30
40
o
o
1.0
0.9
0.8
0.7
0.5 0.3 0.10 0.2 0.4 0.6
50
o
o
60
o
70
o
80
o
90
Spec No: B405X250
Approved: JoJo
Date: Jun/16/2009
Drawn: Yao
Page: 5 OF 7
Lucky Light Electronics Co., Ltd.
Http://www.luckylightled.com
