NCP1593A

Description
5.5 A SWITCHING REGULATOR, 1130 kHz SWITCHING FREQ-MAX, PDSO10
Categorysemiconductor    Analog mixed-signal IC
File Size373KB,13 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

NCP1593A Overview

5.5 A SWITCHING REGULATOR, 1130 kHz SWITCHING FREQ-MAX, PDSO10

NCP1593A Parametric

Parameter NameAttribute value
Number of functions1
Number of terminals10
Rated input voltage5 V
Maximum limit input voltage5.5 V
Minimum limit input voltage4 V
Maximum operating temperature85 Cel
Minimum operating temperature-40 Cel
Processing package description3 × 3 MM, 0.50 MM PITCH, 铅 FREE, DFN-10
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shapeSQUARE
Package SizeSMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
surface mountYes
Terminal formNO
Terminal spacing0.5000 mm
terminal coatingMATTE Tin
Terminal locationpair
Packaging MaterialsPlastic/Epoxy
Temperature levelINDUSTRIAL
control modePEAK current
Control TechnologyPulse width MODULATION
Maximum output current5.5 A
Analog IC other typesswitching regulator
Switch configurationBUCK
Maximum switching frequency1130 kHz

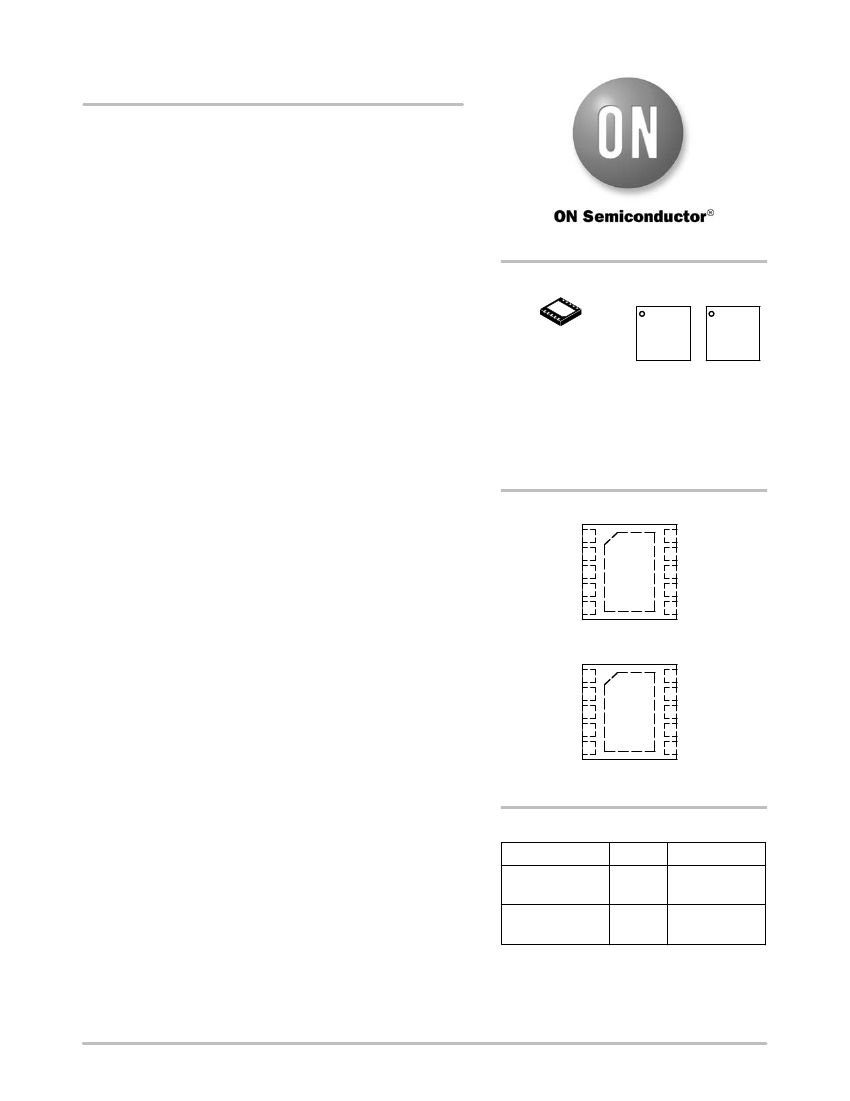

NCP1593A, NCP1593B
1 MHz, 3 A Synchronous
Buck Regulator
The NCP1593 is a fixed 1 MHz, high−output−current, synchronous
PWM converter that integrates a low−resistance, high−side P−channel
MOSFET and a low−side N−channel MOSFET. The NCP1593 utilizes
internally compensated current mode control to provide good transient
response, ease of implementation and excellent loop stability. It
regulates input voltages from 4.0 V to 5.5 V down to an output voltage
as low as 0.6 V and is able to supply up to 3 A of load current.
The NCP1593 includes an internally fixed switching frequency
(F
SW
), and an internal soft−start to limit inrush current. Other features
include cycle−by−cycle current limiting, 100% duty cycle operation,
short− circuit protection, power saving mode and thermal shutdown.
Features
http://onsemi.com
MARKING
DIAGRAMS
1593A
ALYWG
G
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
1593B
ALYWG
G
DFN10
CASE 485C
A
L
Y
W
G
Wide Input Voltage Range: from 4.0 V to 5.5 V
Internal 90 mW High−Side P−Channel MOSFET and 60 mW
Low−Side N−Channel MOSFET
Fixed 1 MHz Switching Frequency
Cycle−by−Cycle Current Limiting
Hiccup Mode Short−Circuit Protection
Overtemperature Protection
Internal Soft−Start
Start−up with Pre−Biased Output Load
Adjustable Output Voltage Down to 0.6 V
Diode Emulation During Light Load
100% Duty Cycle Operation to Extend the Battery Life
These are Pb−Free Devices
Set−Top Boxes
DVD Drives and HDD
LCD Monitors and TVs
Cable Modems
USB Modems
Telecom/Networking/Datacom Equipment
(Note: Microdot may be in either location)
PIN CONNECTIONS
NC 1
LX 2
LX 3
PG 4
EN 5
NCP1593A
(Top View)
LX 1
LX 2
LX 3
PG 4
EN 5
NCP1593B
(Top View)
GND
10 VCCP
9 VCCP
8 VCCA
7 NC
6 FB
GND
10 VCCP
9 VCCP
8 VCCA
7 SS
6 FB
Applications
ORDERING INFORMATION
Device
NCP1593AMNTWG
NCP1593BMNTWG
Package
DFN10
(Pb−Free)
DFN10
(Pb−Free)
Shipping
3000 / Tape &
Reel
3000 / Tape &
Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
©
Semiconductor Components Industries, LLC, 2012
July, 2012
Rev. 2
1
Publication Order Number:
NCP1593/D
