AM26LS30DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS30DC

AM26LS30DC: DescriptionLine Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size1MB，15 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AM26LS30DC Overview

Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16

AM26LS30DC Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PROGRAMMABLE SLEW RATE
Differential output	YES
Number of drives	4
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422; EIA-423
JESD-30 code	R-GDIP-T16
length	22.86 mm
Nominal negative supply voltage	-5 V
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
maximum transmission delay	200 ns
width	7.62 mm

AM26LS30DC Preview

REI Datasheet

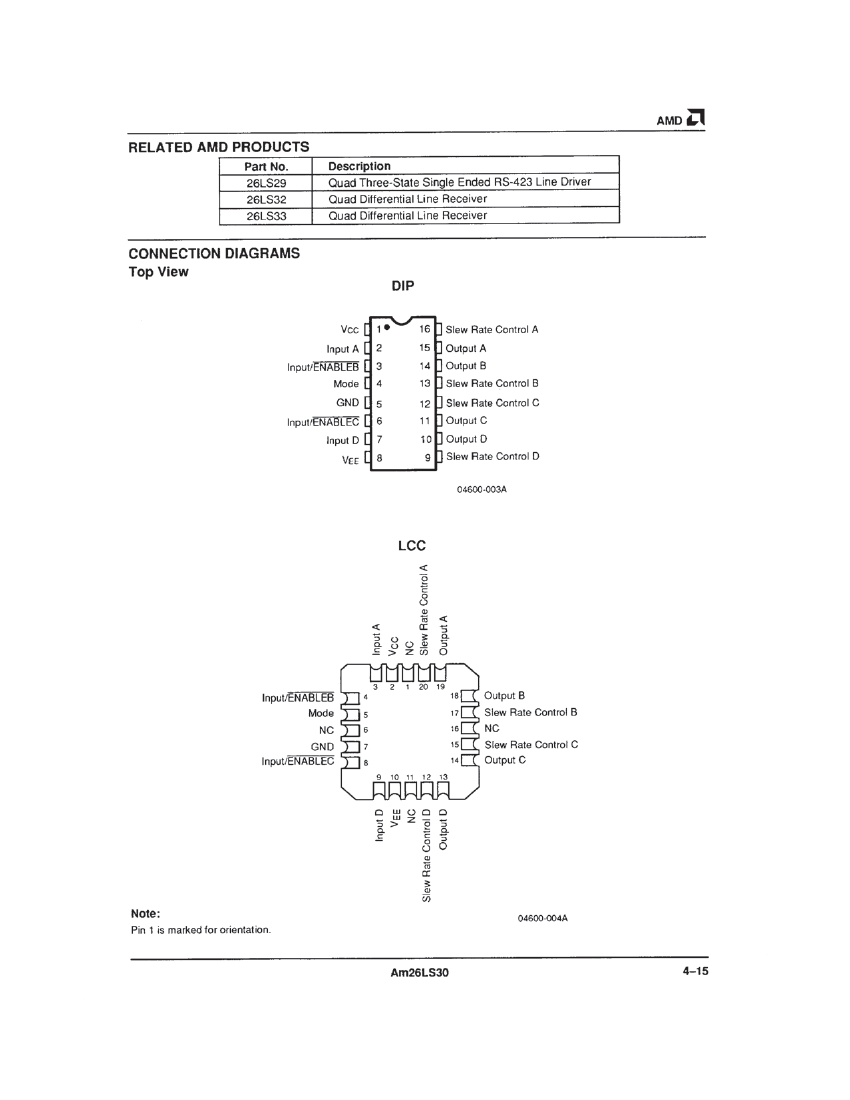

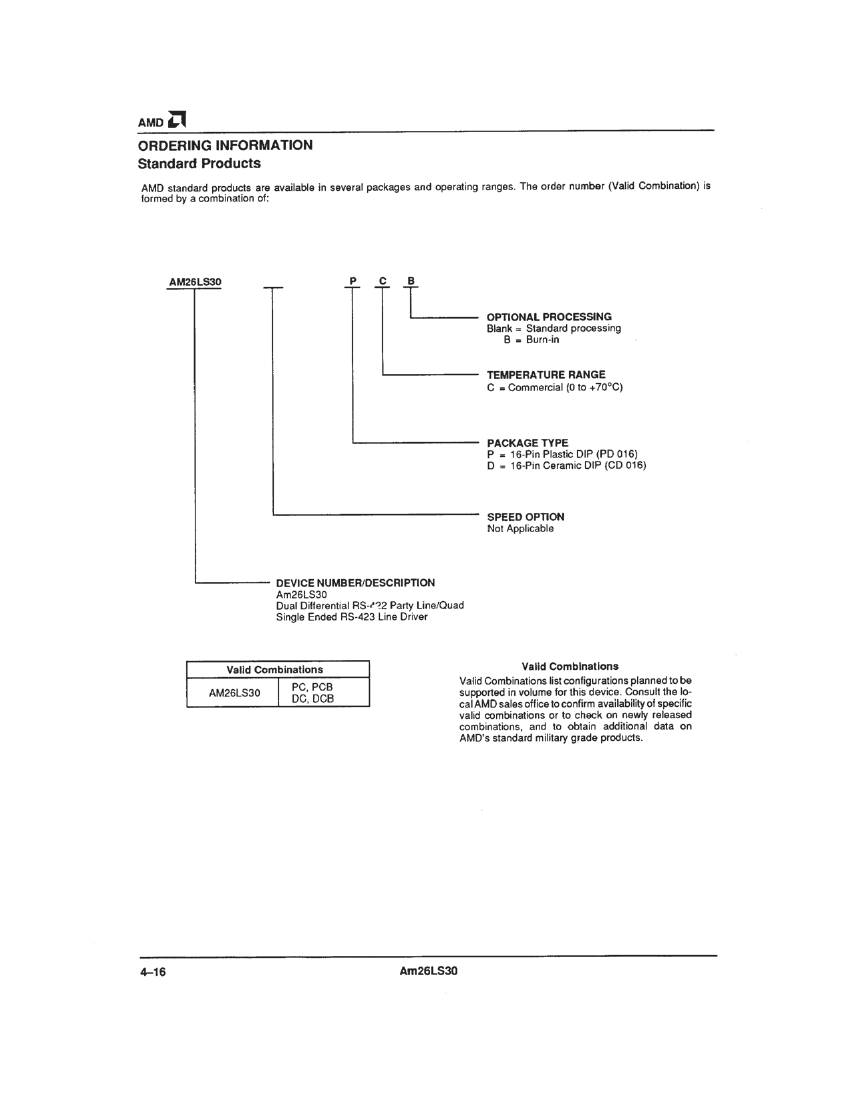

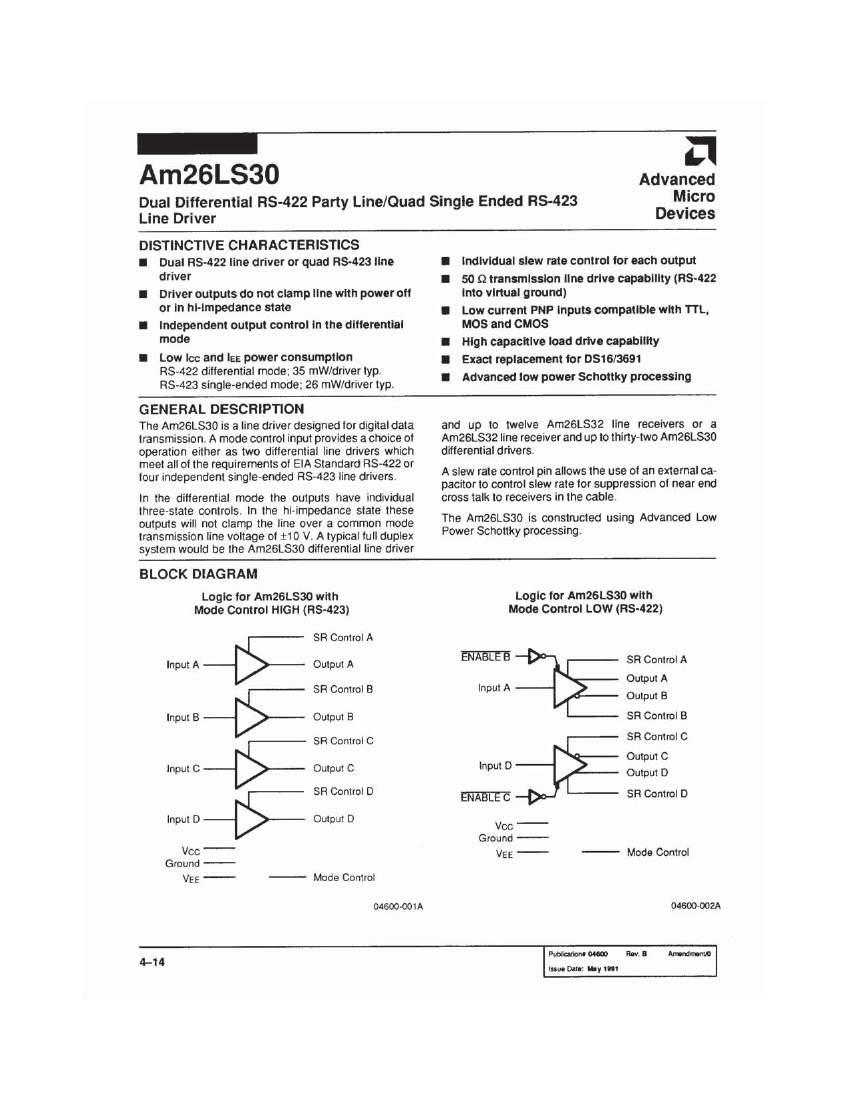

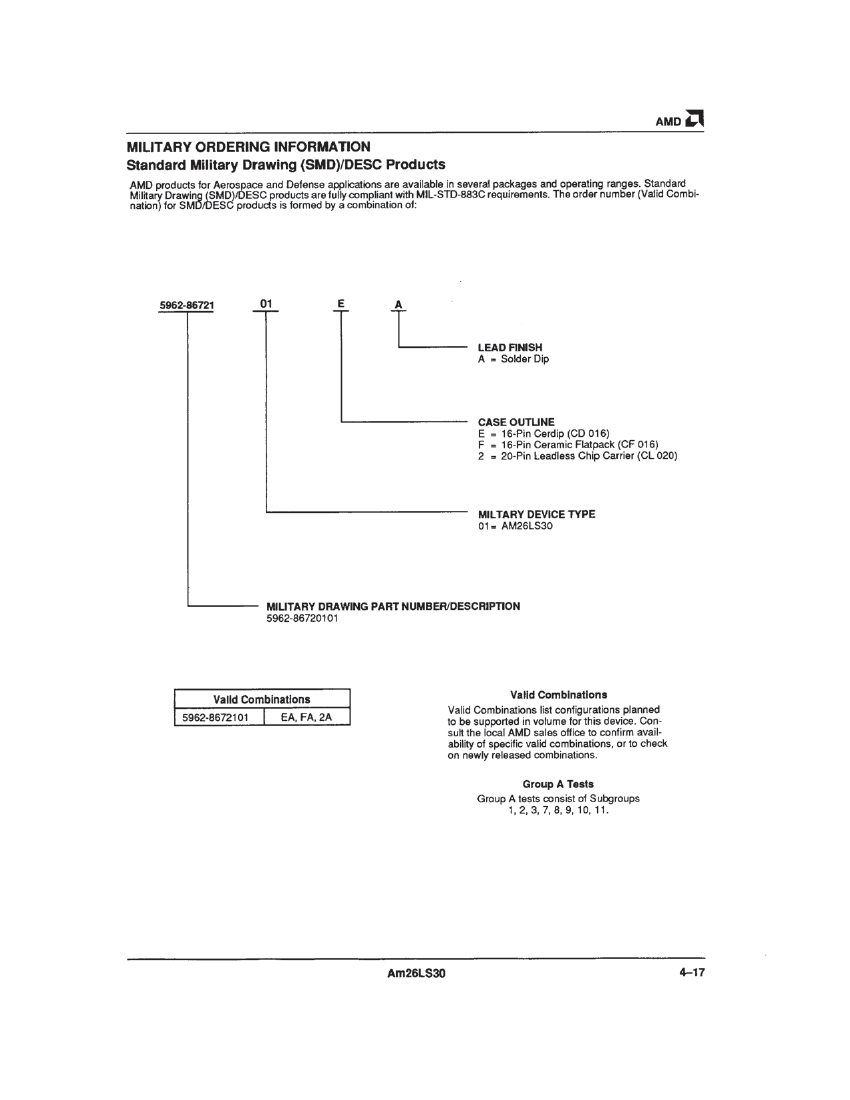

AM26LS30

Dual Differential RS-422 Party Line/Quad Single Ended RS-423 Line Driver

The AM26LS30 is a line driver designed for digital data transmission. A mode control input provides

a choice of operation either as two differential line drivers which meet all the requirements of EIA

Standard RS-422 or four independent single-ended RS-423 line drivers.

In the differential mode the outputs have individual three-state controls. In the hi-impedance state

these outputs will not clamp the line over a common mode transmission line voltage of

±10

V. A

typical full duplex system would be the AM26LS30 differential line driver and up to twelve AM26LS32

line receivers or an AM26LS32 line receiver and up to thirty-two AM26LS30 differential drivers.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

AS9120 certification

Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

Qualified Suppliers List of Distributors (QSLD)

•

Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

AM26LS30DC Related Products

	AM26LS30DC	AM26LS30DM	AM26LS30DMB	AM26LS30FM
Description	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16	Line Driver, 4 Func, 4 Driver, BIPolar, CDFP16, HERMETIC SEALED, CERPACK-16
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	DIP,	DIP,	DIP,	DFP,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES
Number of drives	4	4	4	4
Input properties	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423	EIA-422; EIA-423
JESD-30 code	R-GDIP-T16	R-CDIP-T16	R-GDIP-T16	R-CDFP-F16
length	22.86 mm	19.431 mm	22.86 mm	10.0965 mm
Number of functions	4	4	4	4
Number of terminals	16	16	16	16
Maximum operating temperature	70 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	FLATPACK
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	2.159 mm
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	6.731 mm
