UG06A THRU UG06D
MINIATURE ULTRAFAST EFFICIENT PLASTIC RECTIFIER
Reverse Voltage -
50 to 200 Volts
Case Style MPG06
Forward Current -
0.6 Ampere
♦
Plastic package has Underwriters Laboratories
Flammability Classification 94V-0
♦
Ideally suited for use in very high frequency switching
power supplies, inverters and as a free wheeling diode
♦
Ultrafast reverse
recovery times for high efficiency
♦
Soft recovery characteristics
♦
Excellent high temperature switching
♦
Glass passivated junction
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
FEATURES
0.100 (2.54)
0.090 (2.29)
DIA
1.0 (25.4)
MIN.
0.125 (3.18)
0.115 (2.92)
1.0 (25.4)
MIN.
0.025 (0.635)
0.023 (0.584)
DIA.
MECHANICAL DATA
Case:
Void free molded plastic body over passivated chip
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
WeIght:
0.0064 ounce, 0.181 gram
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
UG06A
UG06B
UG06C
UG06D
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
L
=75°C
Peak forward surge current
8.3 ms single half sine-wave superimposed
on rated load (JEDEC Method) at T
L
=75°C
Maximum instantaneous forward voltage at 0.6A
Maximum DC reverse current
at rated DC blocking voltage
Maximum reverse recovery time
(NOTE 1)
Maximum reverse recovery time
(NOTE 2)
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
t
rr
T
J
=25°C
T
J
=100°C
T
J
=25°C
T
J
=100°C
t
rr
Q
rr
C
J
R
ΘJA
R
ΘJL
T
J
, T
STG
50
35
50
100
70
100
0.6
40.0
0.95
150
105
150
200
140
200
Volts
Volts
Volts
Amp
Amps
Volts
µA
ns
ns
nC
pF
°C/W
°C
T
A
=25°C
T
A
=100°C
5.0
100.0
15.0
25.0
35.0
8.0
20.0
9.0
97.0
28.0
-55 to +150
Maximum recovered stored charge
(NOTE 2)
Typical junction capacitance
(NOTE 3)
Typical thermal resistance
(NOTE 4)
Operating junction and storage temperature range
NOTES:
(1) Reverse recovery test conditions: I
F
=0.5A, I
R
=1.0A,I
rr
=0.25A
(2) t
rr
and Q
rr
measured at I
F
=0.6A: V
R
=30V, di/dt=50A/µs, I
rr
=10% I
RM
for meaurement of t
rr
(3) Measured at 1.0 MH
Z
and applied reverse voltage of 4.0 Volts
(4) Thermal resistance from junction to ambient and junction to lead at 0.375" (9.5mm) lead length
P.C.B. mounted with 0.2 x 0.2” (5.0 x 5.0mm) copper pads
4/98

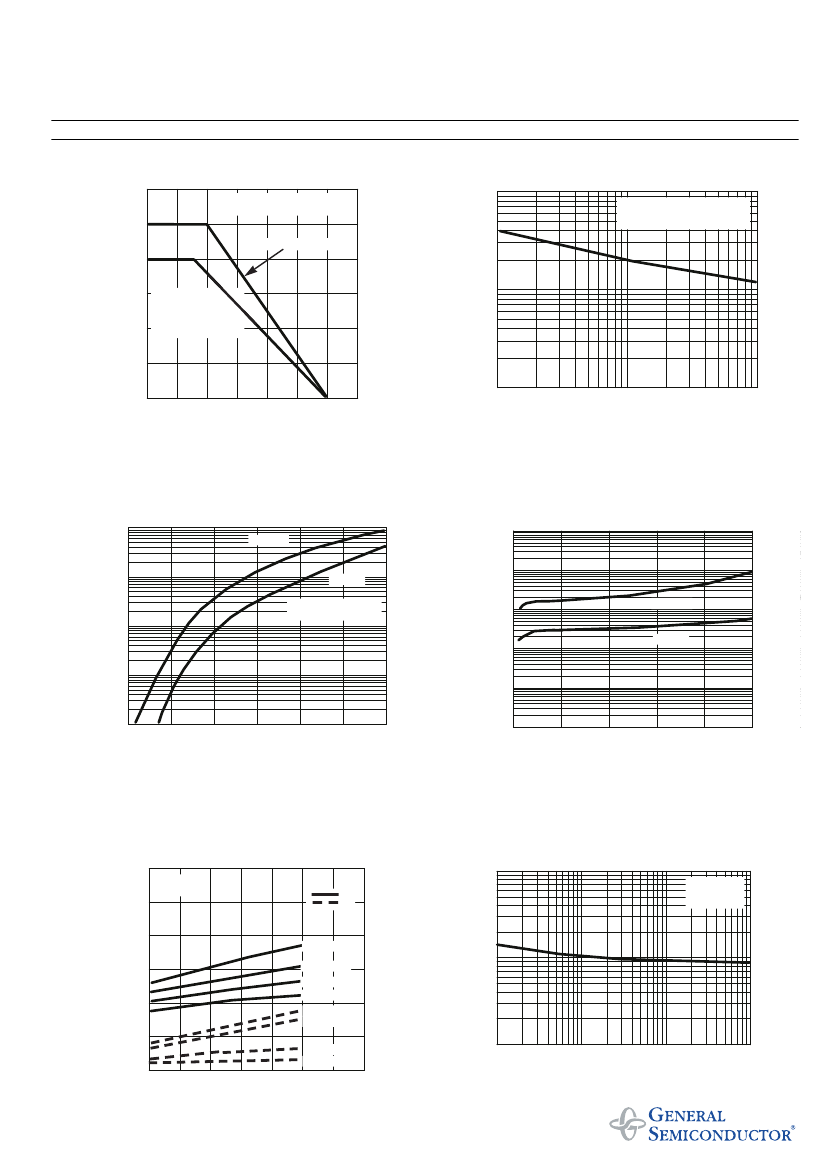

RATINGS AND CHARACTERISTIC CURVES UG06A THRU UG06D
FIG. 1 - MAXIMUM FORWARD CURRENT
DERATING CURVES
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
0.9
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
0.75
T
L
, LEAD TEMPERATURE
0.6
0.45
0.3
0.15
0
T
A
, AMBIENT
TEMPERATURE
P.C.B. MOUNTED
0.2 x 0.2" (5.0 x 5.0mm)
COPPER PADS
PEAK FORWARD SURGE CURRENT,
AMPERES
RESISTIVE OR INDUCTIVE LOAD
0.375" (9.5mm) LEAD LENGTH
100
T
J
=75°C
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
10
1
0
25
50
75
100
125
150
175
TEMPERATURE, °C
1
10
NUMBER OF CYCLES AT 60 H
Z
100
INSTANTANEOUS FORWARD CURRENT,
AMPERES
100
T
J
=100°C
INSTANTANEOUS REVERSE LEAKAGE CURRENT,
MICROAMPERES
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS
1,000
10
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
100
T
J
=100°C
10
1
T
J
=25°C
1
0.1
0.1
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.01
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
FIG. 5 - REVERSE SWITCHING
CHARACTERISTICS
FIG. 6 - TYPICAL JUNCTION CAPACITANCE
60
RECOVERED pP CHARGE/REVERSE
RECOVERY TIME, nC/ns
50
40
di/dt=20A/µs
JUNCTION CAPACITANCE, pF
I
F
=0.6A
V
R
=30V
100
t
rr
Q
rr
T
J
=25°C
f=1.0 MH
Z
Vsig=50mVp-p
30
20
10
di/dt=50A/µs
di/dt=100A/µs
di/dt=150A/µs
di/dt=150A/µs
di/dt=100A/µs
di/dt=50A/µs
di/dt=20A/µs
10
1
0.1
175
1
10
100
0
REVERSE VOLTAGE, VOLTS
0
25
50
75
100
125
150
JUNCTION TEMPERATURE °C
