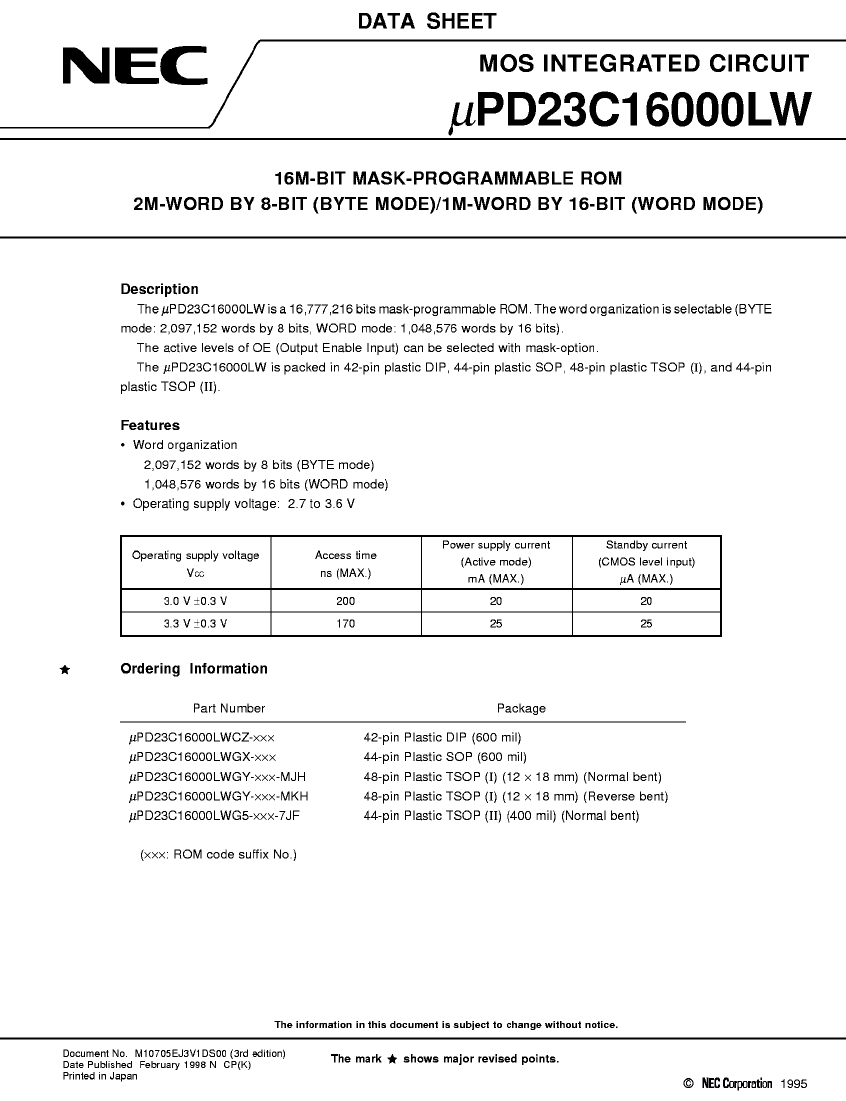

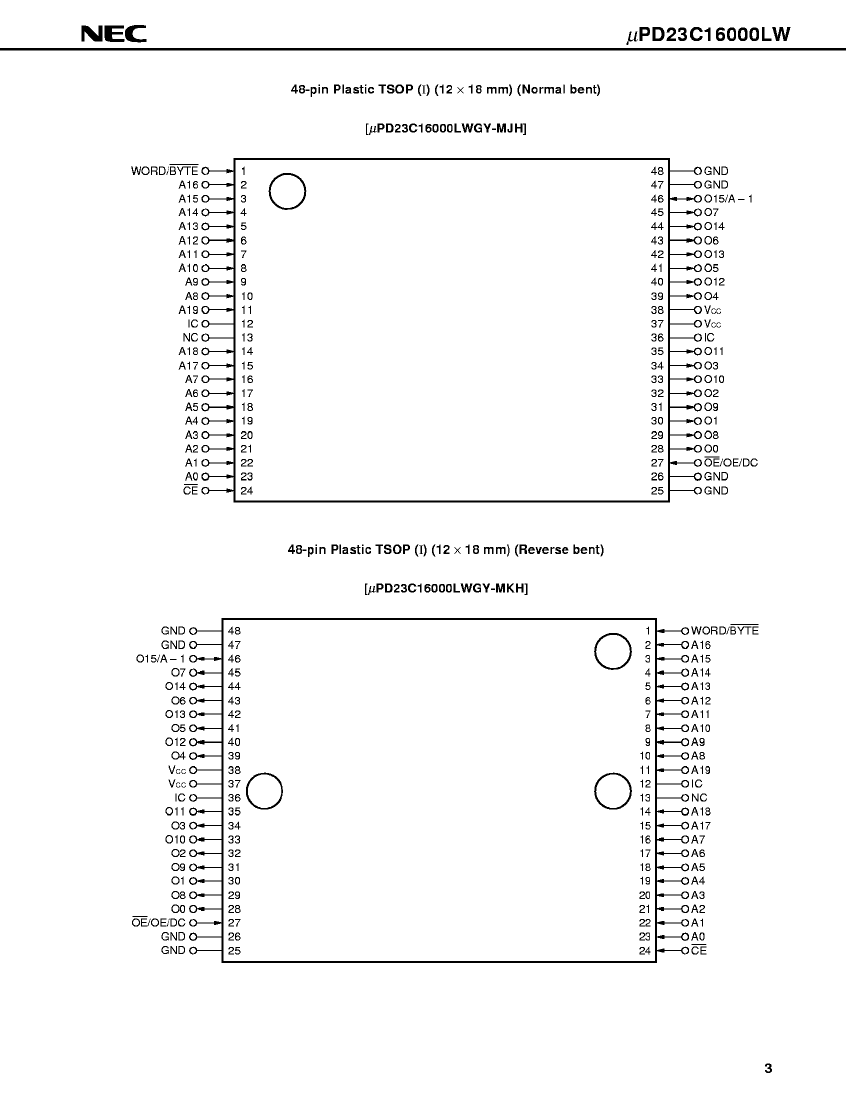

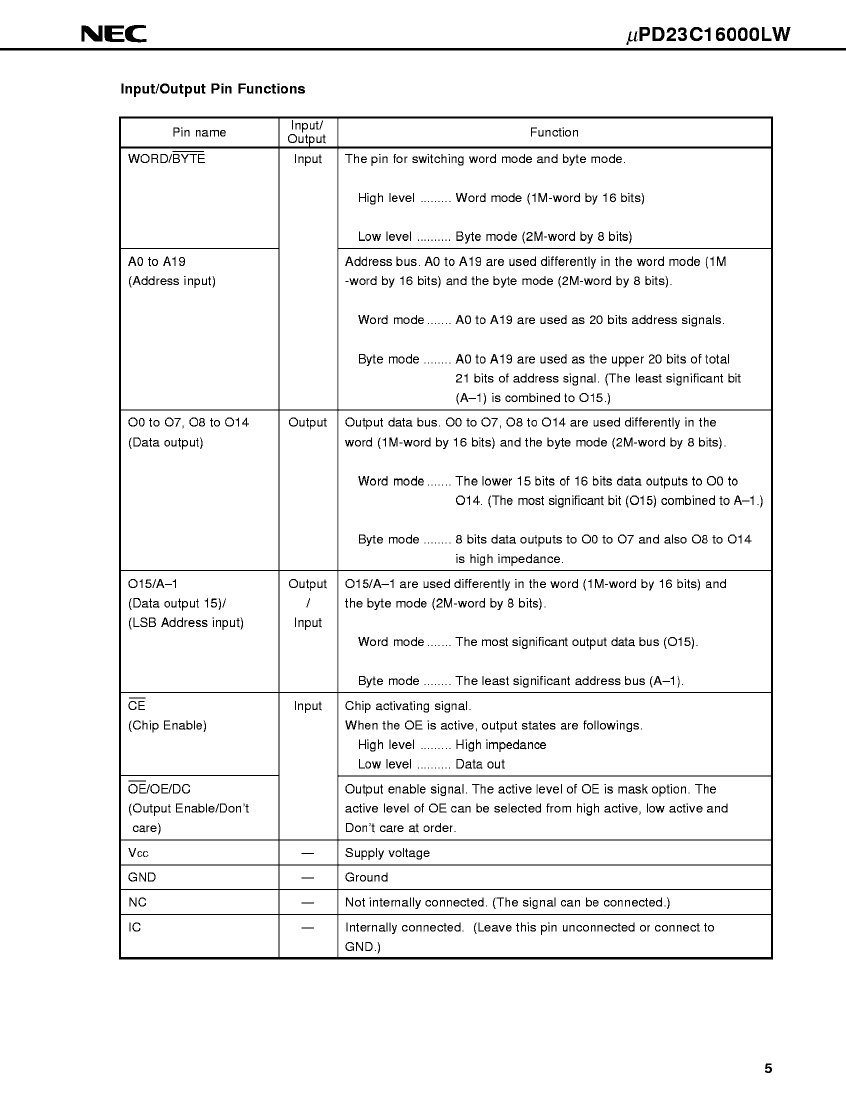

MASK ROM, 2MX8, 200ns, MOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48

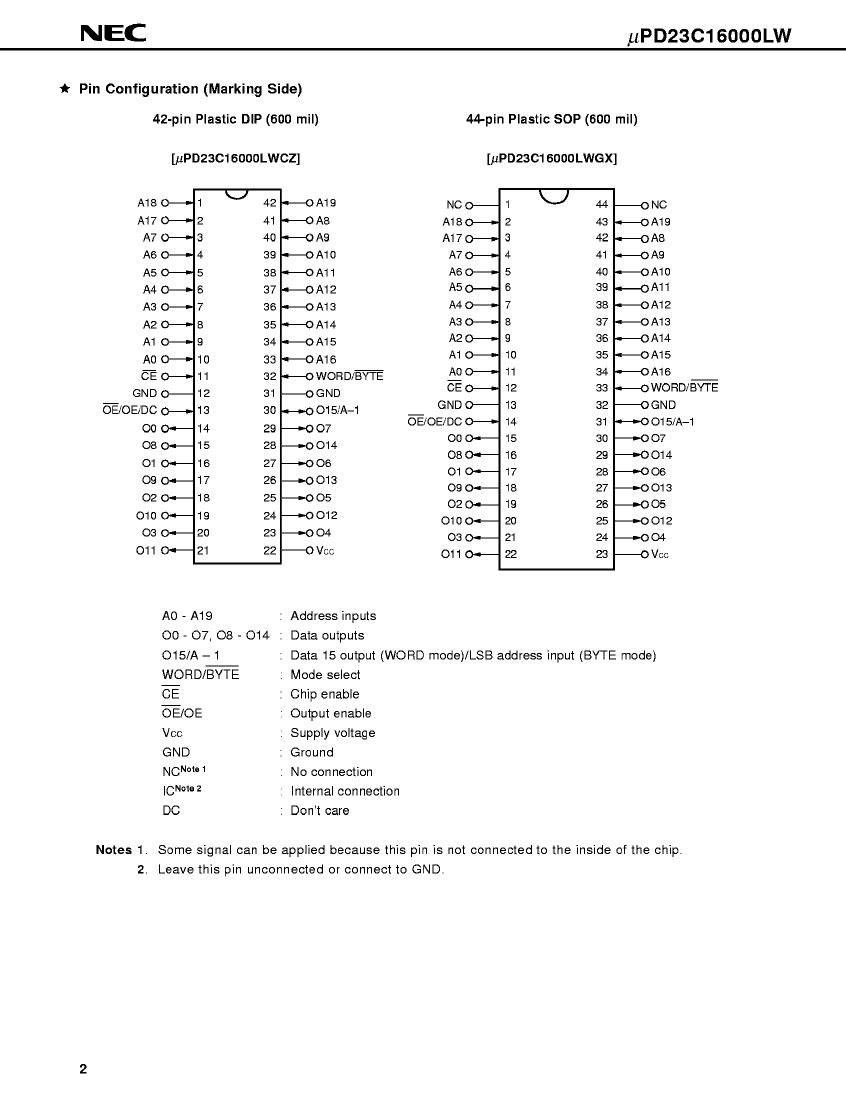

| Parameter Name | Attribute value |
| Maker | NEC Electronics |
| Parts packaging code | TSOP1 |
| package instruction | TSOP1-R, |
| Contacts | 48 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum access time | 200 ns |
| Other features | USER CONFIGURABLE AS 1M X 16 |
| JESD-30 code | R-PDSO-G48 |
| length | 16.4 mm |
| memory density | 16777216 bit |
| Memory IC Type | MASK ROM |
| memory width | 8 |
| Number of functions | 1 |
| Number of terminals | 48 |
| word count | 2097152 words |
| character code | 2000000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -10 °C |
| organize | 2MX8 |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSOP1-R |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE |
| Parallel/Serial | PARALLEL |
| Certification status | Not Qualified |
| Maximum seat height | 1.2 mm |
| Maximum supply voltage (Vsup) | 3.3 V |
| Minimum supply voltage (Vsup) | 2.7 V |
| Nominal supply voltage (Vsup) | 3 V |
| surface mount | YES |
| technology | MOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.5 mm |
| Terminal location | DUAL |
| width | 12 mm |
| UPD23C16000LWGY-XXX-MKH | UPD23C16000LWCZ-XXX | UPD23C16000LWGX-XXX | UPD23C16000LWGY-XXX-MJH | UPD23C16000LWG5-XXX-7JF | |
|---|---|---|---|---|---|
| Description | MASK ROM, 2MX8, 200ns, MOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48 | MASK ROM, 2MX8, 200ns, MOS, PDIP42, 0.600 INCH, PLASTIC, DIP-42 | MASK ROM, 2MX8, 200ns, MOS, PDSO44, 0.600 INCH, PLASTIC, SOP-44 | MASK ROM, 2MX8, 200ns, MOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48 | MASK ROM, 2MX8, 200ns, MOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-44 |
| Maker | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics |
| Parts packaging code | TSOP1 | DIP | SOIC | TSOP1 | TSOP2 |
| package instruction | TSOP1-R, | DIP, | SOP, | TSOP1, | TSOP2, |
| Contacts | 48 | 42 | 44 | 48 | 44 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum access time | 200 ns | 200 ns | 200 ns | 200 ns | 200 ns |
| Other features | USER CONFIGURABLE AS 1M X 16 | USER CONFIGURABLE AS 1M X 16 | USER CONFIGURABLE AS 1M X 16 | USER CONFIGURABLE AS 1M X 16 | USER CONFIGURABLE AS 1M X 16 |
| JESD-30 code | R-PDSO-G48 | R-PDIP-T42 | R-PDSO-G44 | R-PDSO-G48 | R-PDSO-G44 |
| memory density | 16777216 bit | 16777216 bit | 16777216 bit | 16777216 bit | 16777216 bit |
| Memory IC Type | MASK ROM | MASK ROM | MASK ROM | MASK ROM | MASK ROM |
| memory width | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 48 | 42 | 44 | 48 | 44 |
| word count | 2097152 words | 2097152 words | 2097152 words | 2097152 words | 2097152 words |
| character code | 2000000 | 2000000 | 2000000 | 2000000 | 2000000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Minimum operating temperature | -10 °C | -10 °C | -10 °C | -10 °C | -10 °C |
| organize | 2MX8 | 2MX8 | 2MX8 | 2MX8 | 2MX8 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSOP1-R | DIP | SOP | TSOP1 | TSOP2 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.2 mm | 5.72 mm | 3 mm | 1.2 mm | 1.2 mm |
| Maximum supply voltage (Vsup) | 3.3 V | 3.3 V | 3.3 V | 3.3 V | 3.3 V |
| Minimum supply voltage (Vsup) | 2.7 V | 2.7 V | 2.7 V | 2.7 V | 2.7 V |
| Nominal supply voltage (Vsup) | 3 V | 3 V | 3 V | 3 V | 3 V |
| surface mount | YES | NO | YES | YES | YES |
| technology | MOS | MOS | MOS | MOS | MOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.5 mm | 2.54 mm | 1.27 mm | 0.5 mm | 0.8 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 12 mm | 15.24 mm | 13.24 mm | 12 mm | 10.16 mm |
| length | 16.4 mm | - | 27.83 mm | 16.4 mm | 18.41 mm |
