PARM433.92K04R: DescriptionSAW Resonator, 1-PORT SAW RESONATOR, 433.92 MHz, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN; CategoryPassive components Crystal/resonator; File Size172KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

PARM433.92K04R Overview

SAW Resonator, 1-PORT SAW RESONATOR, 433.92 MHz, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN

PARM433.92K04R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Crystal/Resonator Type	1-PORT
Frequency tolerance(MHz)	0.075
Insertion loss	2.5 dB
Manufacturer's serial number	PARM
Installation features	SURFACE MOUNT
Nominal operating frequency	433.92 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Parallel capacitor	4 pF
physical size	L3.0XB3.0XH1.5 (mm)/L0.118XB0.118XH0.059 (inch)
surface mount	YES

Preview

Download Datasheet

View All

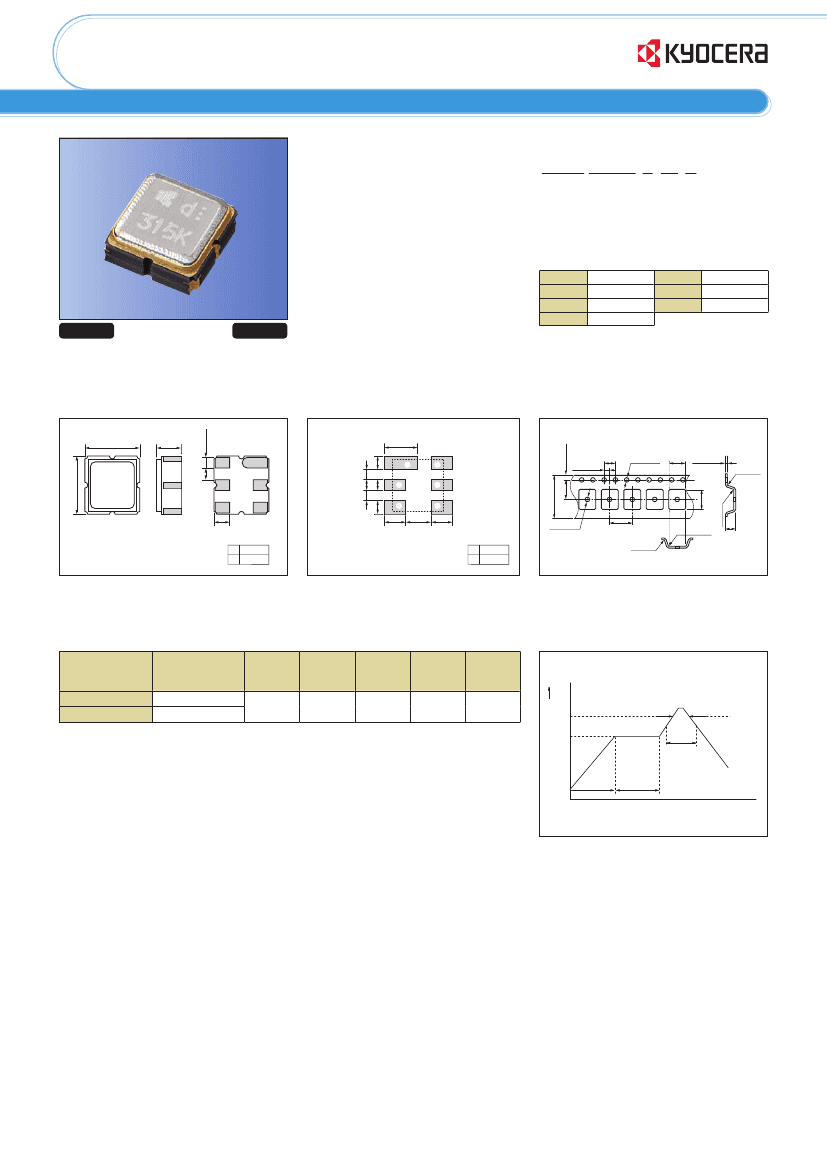

SAW Resonators

PARM Series

Surface Acoustic Wave Resonator for

Remote Keyless Entry System (RKE)

How to Order

PARM 315.00 K 04 R

①

②

Features

• Ultra-miniature size

• 1 port type SMD resonator

• High reliability

• Excellent temperature characteristics

③ ④ ⑤

①

Series

②

Resonant Frequency (MHz)

③

Marking Code

④

Frequency Tolerance or Custom Spec.

00

01

02

03

±250kHz

±200kHz

±150kHz

±100kHz

04

05

11≤

±75kHz

±50kHz

Custom Spec.

Applications

Pb Free

RoHS Compliant

• Remote Keyless Entry System (RKE)

• Garage Openers

• Security Systems

⑤

Type

Dimensions

½½½½½½

½½½½½½½½

½½½½½½

②

(Unit: mm)

Recommended Land Pattern

½½½

(Unit: mm)

Packaging

½½½½½½½ ½½½½½½½

(Unit: mm)

②

½½½

½½½½½½

②

①

②

½½½½

½½½

②

½½½½½½½

½½½½½½

½½½½½½½

½½½½½½½½ ½½½½½½ ½½½½½½½

½½½½½½

½½½½½½½½

½½½½½½

½½½½½½½½

½½½

①

②

½½½½

½①½ ½½½

½②½ ½½½½½½

②

½½½½½½½

½①½ ½½½

½②½ ½½½½½½

②

½½½

½½½½½½½½

½½½½½½

½½½½½½½½

½½½½½½½

Speciﬁcations

Part Number

PARM315.00K04R

PARM433.92K04R

Resonant

Frequency (MHz)

315.000±0.075

433.920±0.075

Temperature

Parallel

Operating

Storage

Resonant

Characteristics

Loss (dB) Capacitance (pF) (ppm/

°C

2

) Temperature (°C) Temperature (°C)

2.5 max.

4.0 max.

−0.03

typ.

−40

to 85

−40

to 85

Recommended Temperature IR Reﬂow

Temp. (°C)

250

200

150

100

50

0

0 to 60 sec. 60 to 120 sec.

Time

180°C min.

40 sec. max.

200°C min.

15 sec. max.

Peak Temp.

230°C5°C

PARM433.92K04R Related Products

	PARM433.92K04R	PARM315.00K04R
Description	SAW Resonator, 1-PORT SAW RESONATOR, 433.92 MHz, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN	SAW Resonator, 1-PORT SAW RESONATOR, 315 MHz, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Kyocera	Kyocera
Reach Compliance Code	unknown	unknown
Other features	TAPE AND REEL	TAPE AND REEL
Crystal/Resonator Type	1-PORT	1-PORT
Frequency tolerance(MHz)	0.075	0.075
Insertion loss	2.5 dB	2.5 dB
Manufacturer's serial number	PARM	PARM
Installation features	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	433.92 MHz	315 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Parallel capacitor	4 pF	4 pF
physical size	L3.0XB3.0XH1.5 (mm)/L0.118XB0.118XH0.059 (inch)	L3.0XB3.0XH1.5 (mm)/L0.118XB0.118XH0.059 (inch)
surface mount	YES	YES
