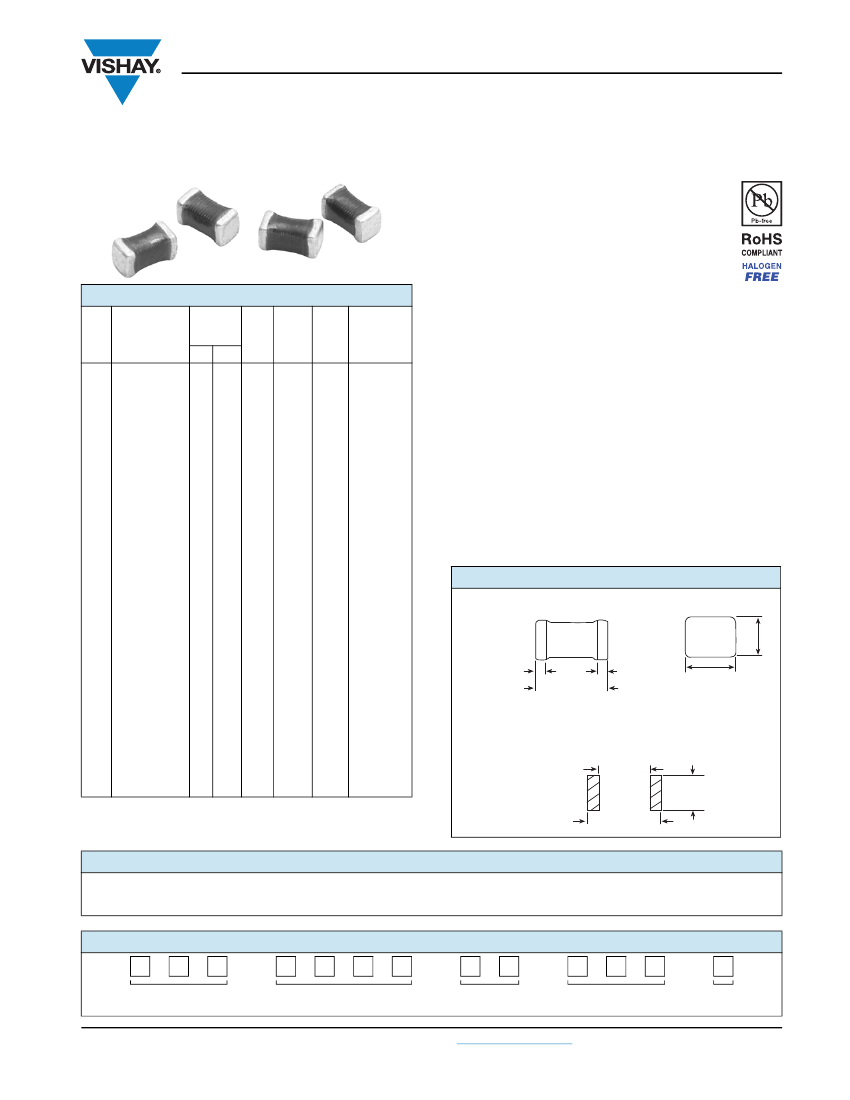

IMC-0603

Vishay Dale

High Frequency, Surface Mount, Laser Spiral, Coated Inductors

FEATURES

• Very small size

• High self-resonant frequency values

• High Q values relative to size at higher

frequencies

• Coated coil provides protection and moisture

resistance

• Compatible with vapor phase and infrared reflow

soldering

• Tape and reel packaging for automatic handling,

3000/reel, EIA-481

• L and Q value not affected by mounting orientation

• Compliant to RoHS Directive 2002/95/EC

• Halogen-free according to IEC 61249-2-21 definition

STANDARD ELECTRICAL SPECIFICATIONS

RATED

SRF DCR

IND.

MIN. MAX. CURRENT

(nH)

TOL.

Q MIN. (MHz) ()

(mA)

(1)

1.0 0.3 nH, 0.2 nH 100 1000 30

6000 0.06

500

1.2 0.3 nH, 0.2 nH 100 1000 30

6000 0.06

500

1.5 0.3 nH, 0.2 nH 100 1000 30

6000 0.07

500

1.8 0.3 nH, 0.2 nH 100 1000 30

6000 0.08

500

2.2 0.3 nH, 0.2 nH 100 1000 30

6000 0.09

500

2.7 0.3 nH, 0.2 nH 100 1000 30

6000 0.10

500

3.3 0.3 nH, 0.2 nH 100 1000 30

5500 0.12

500

3.9

100 1000 30

5500 0.15

450

4.7

100 1000 30

4800 0.17

450

5.6

100 1000 30

4600 0.19

430

6.8

100 1000 30

3550 0.20

430

8.2

100 1000 30

3500 0.28

400

5 %, 2 %

100 500 30

2800 0.32

400

5 %, 2 %

100 500 30

2800 0.35

400

5 %, 2 %

100 500 30

2500 0.41

350

5 %, 2 %

100 500 30

2300 0.45

350

5 %, 2 %

100 500 30

2000 0.50

300

5 %, 2 %

100 500 30

2000 0.55

300

5 %, 2 %

100 500 30

1800 0.60

300

5 %, 2 %

100 500 30

1800 0.80

300

5 %, 2 %

100 500 30

1800 0.95

250

5 %, 2 %

100 500 30

1800 1.20

250

5 %, 2 %

100 500 30

1500 1.30

250

5 %, 2 %

100 500 30

1500 1.50

250

100

5 %, 2 %

100 500 26

1300 1.80

200

120

5 %, 2 %

100 500 26

1200 3.00

130

150

5 %, 2 %

100 500 26

1100 4.50

100

180

5 %, 2 %

100 500 20

1000 6.50

220

5 %, 2 %

100 500 20

900

7.50

Note

(1)

Value obtained when current flows and temperature has risen 15 °C

TEST

FREQ.

(MHz)

ELECTRICAL SPECIFICATIONS

Inductance Range:

1.0 nH to 220 nH

Inductance and Tolerance:

± 0.3 nH for 1.0 nH to 3.3 nH,

± 5 % for 3.9 nH to 220 nH

Operating Temperature:

- 40 °C to + 100 °C

Core Material:

Ceramic

TEST EQUIPMENT

• Inductance and Q measured on HP4291B

• SRF measured on HP8753E

• DCR measured on HP4338B

DIMENSIONS

in inches [millimeters]

0.031 ± 0.008

[0.8 ± 0.20]

0.016 ± 0.008

[0.4 ± 0.20]

0.063 ± 0.008

[1.6 ± 0.20]

0.016 ± 0.004

[0.4 ± 0.10]

0.031 ± 0.006

[0.8 ± 0.15]

Recommended Pad Layout

0.039

[1.0]

0.031

[0.8]

0.083

[2.1]

DESCRIPTION

IMC-0603

MODEL

10 nH

INDUCTANCE VALUE

±5%

INDUCTANCE TOLERANCE

PACKAGE CODE

JEDEC LEAD (Pb)-FREE STANDARD

GLOBAL PART NUMBER

PRODUCT

FAMILY

Document Number: 34039

Revision: 23-Feb-11

SIZE

TOL.

PACKAGE

CODE

INDUCTANCE

VALUE

For technical questions, contact:
