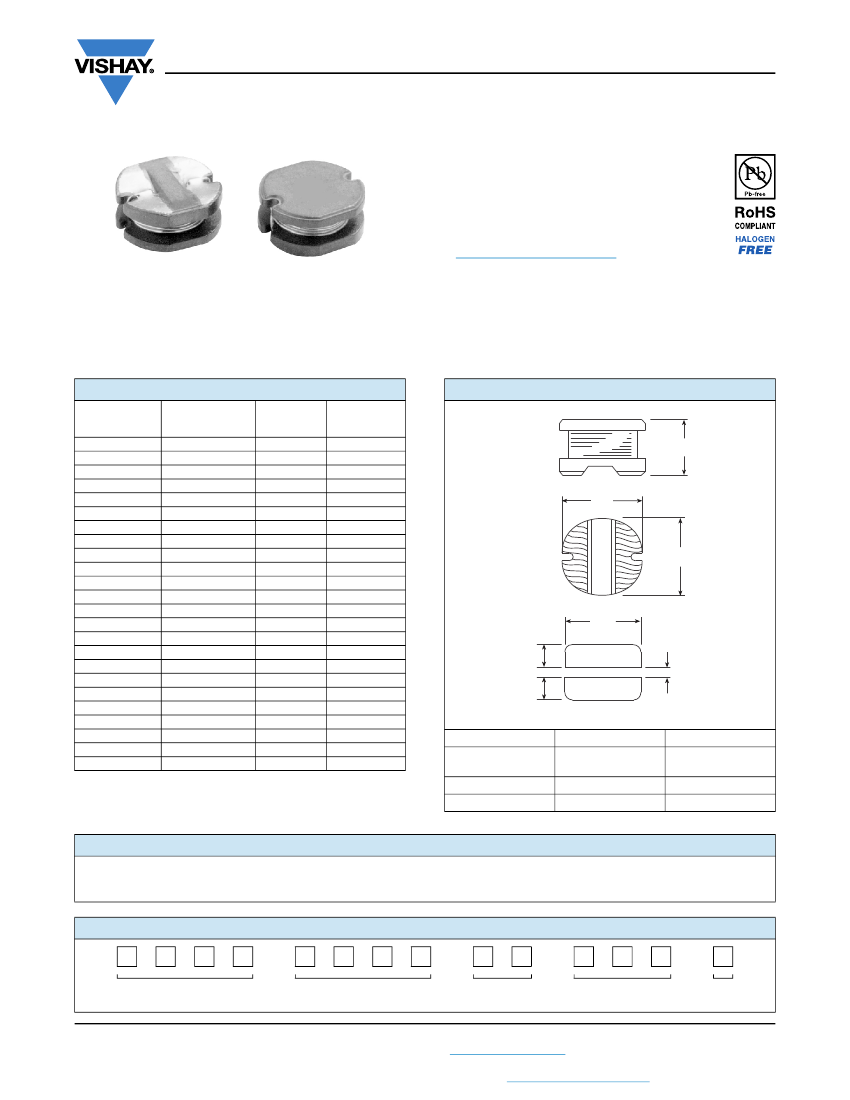

IDCP-3722
www.vishay.com
Vishay Dale
High Current, Surface Mount Inductors - Non-Shielded
FEATURES
•
•
•
•
High energy storage
Low resistance
Tape and reel packaging for automatic handling
Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
ELECTRICAL SPECIFICATIONS
Inductance Range:
10 μH to 820 μH
Inductance Tolerance:
20 %
Operating Temperature:
- 25 °C to + 105 °C
Storage Temperature:
- 40 °C to + 125 °C
Resistance to Solder Heat:
260 °C for 10 s
MATERIALS
Core:
Ferrite
Wire:
Enamelled copper wire
Terminals:
Ni and Sn/Ag/Cu
STANDARD ELECTRICAL SPECIFICATIONS
TEST
RATED DC
FREQUENCY
CURRENT
INDUCTANCE
DCR MAX.
L
(A)
(1)
(μH)
()
10.0
2.52 MHz
0.06
2.60
12.0
2.52 MHz
0.07
2.45
15.0
2.52 MHz
0.08
2.27
18.0
2.52 MHz
0.09
2.15
22.0
2.52 MHz
0.10
1.95
27.0
2.52 MHz
0.11
1.76
33.0
2.52 MHz
0.12
1.50
39.0
2.52 MHz
0.14
1.37
47.0
2.52 MHz
0.17
1.28
56.0
2.52 MHz
0.19
1.17
68.0
2.52 MHz
0.22
1.11
82.0
2.52 MHz
0.25
1.00
100.0
1 kHz
0.35
0.97
120.0
1 kHz
0.40
0.89
150.0
1 kHz
0.47
0.78
180.0
1 kHz
0.63
0.72
220.0
1 kHz
0.73
0.66
270.0
1 kHz
0.97
0.57
330.0
1 kHz
1.15
0.52
390.0
1 kHz
1.30
0.48
470.0
1 kHz
1.48
0.42
560.0
1 kHz
1.90
0.33
680.0
1 kHz
2.25
0.28
820.0
1 kHz
2.55
0.24
Note
(1)
Rated Current: Value obtained when current flows and the
temperature has risen 40 °C or when DC current flows and the
initial value of inductance has fallen by 10 %, whichever is smaller.
DIMENSIONS
in inches [millimeters]
B
A
C
D
E
F
E
TYPICAL PAD LAYOUT
A
0.394 ± 0.02
[10.0 ± 0.4]
D
0.374 [9.5]
B
0.213 ± 0.02
[5.4 ± 0.4]
E
0.148 [3.75]
C
0.355 ± 0.02
[9.0 ± 0.4]
F
0.099 [2.5]
DESCRIPTION
IDCP-3722
MODEL
10 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e1
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
D
C
P
3
7
SIZE
2
2
E
R
1
0
INDUCTANCE
VALUE
0
M
INDUCTANCE
TOLERANCE
PRODUCT FAMILY
PACKAGE
CODE
Revision: 20-Sep-13
Document Number: 34090
1
For technical questions, contact:
magnetics@vishay.com
