UFT2030 datasheet, PDF - EEWORLD Datasheet

UFT2030: DescriptionULTRA FAST RECOVERY RECTIFIERS; CategoryDiscrete semiconductor diode; File Size128KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

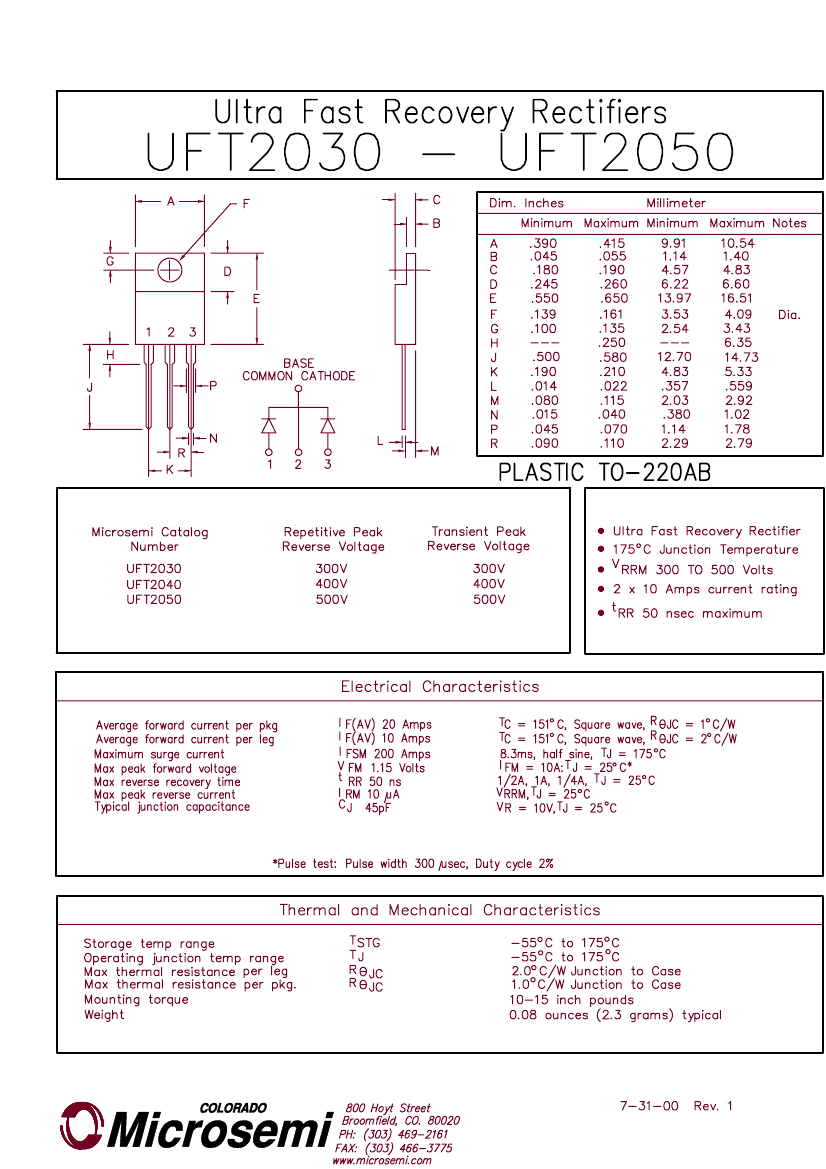

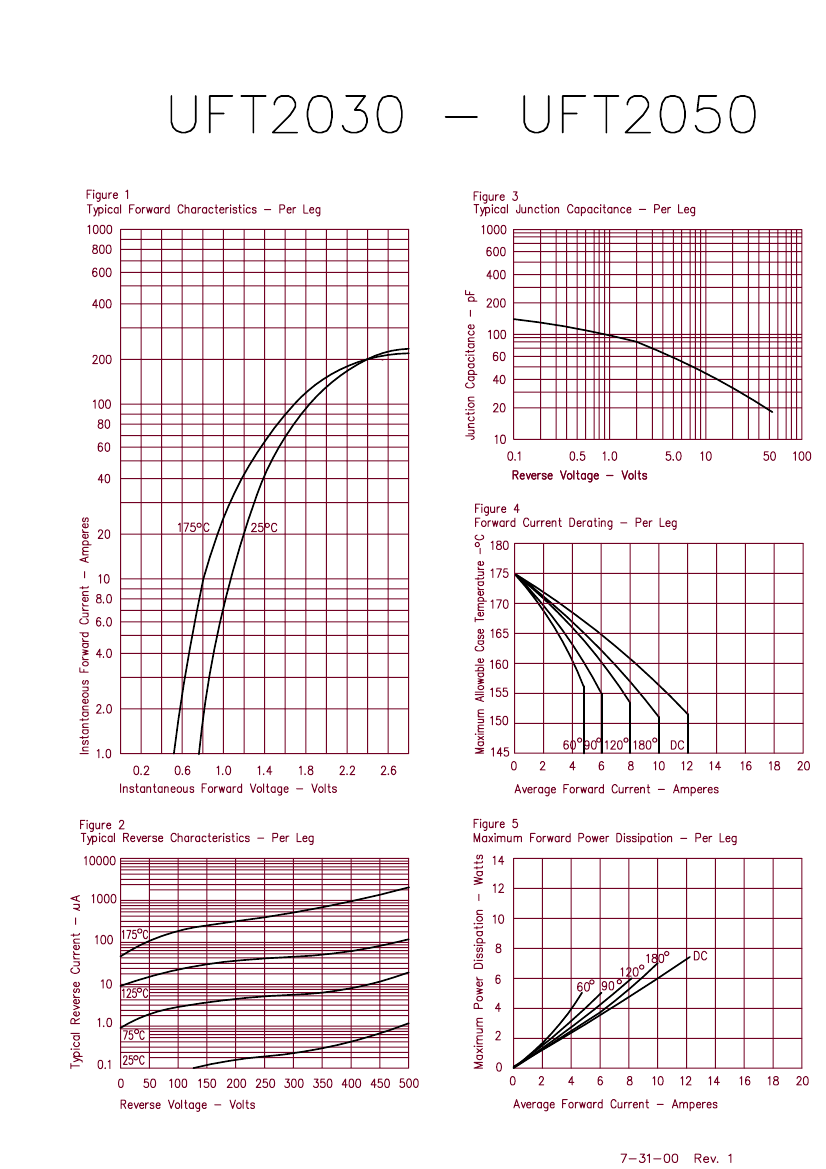

UFT2030 Overview

ULTRA FAST RECOVERY RECTIFIERS

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TO-220AB
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	UFT2030	UFT2050
Description	ULTRA FAST RECOVERY RECTIFIERS	ULTRA FAST RECOVERY RECTIFIERS
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	TO-220AB	TO-220AB
package instruction	R-PSFM-T3	R-PSFM-T3
Contacts	3	3
Reach Compliance Code	unknow	compli
ECCN code	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V	1.15 V
JEDEC-95 code	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A	200 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	500 V
Maximum reverse recovery time	0.05 µs	0.05 µs
surface mount	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
