M5M44800ATP-10S datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> M5M44800ATP-10S

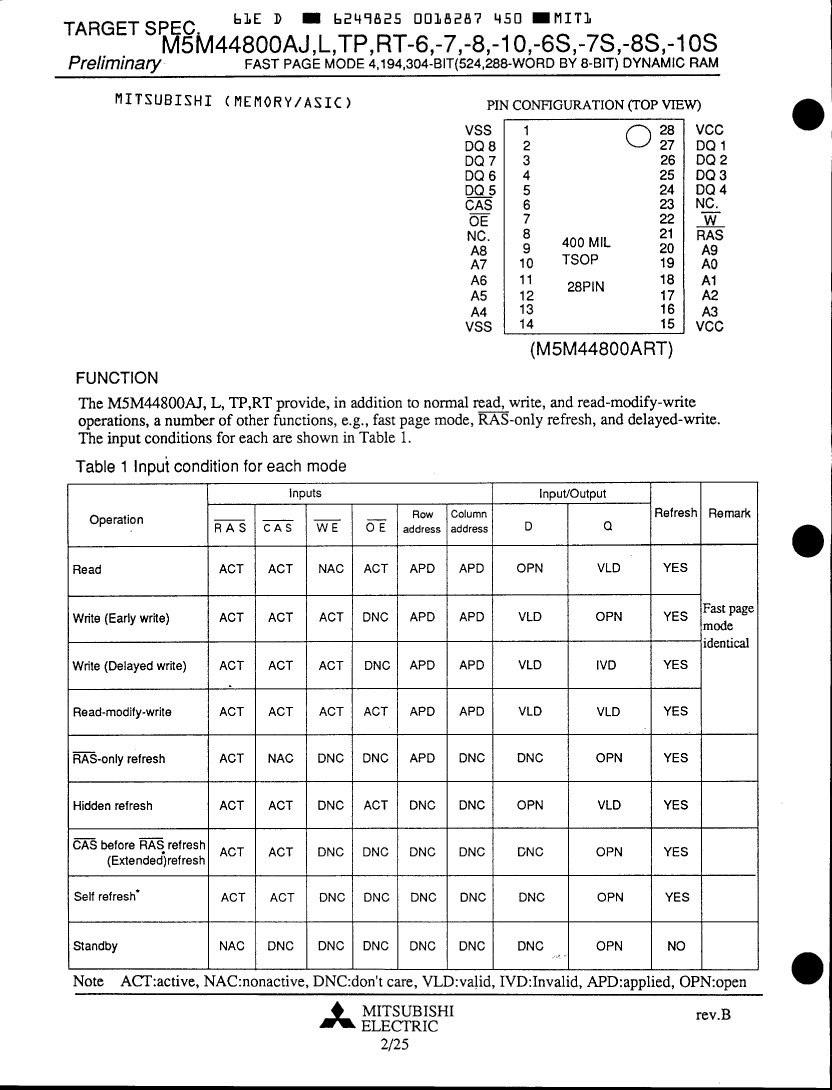

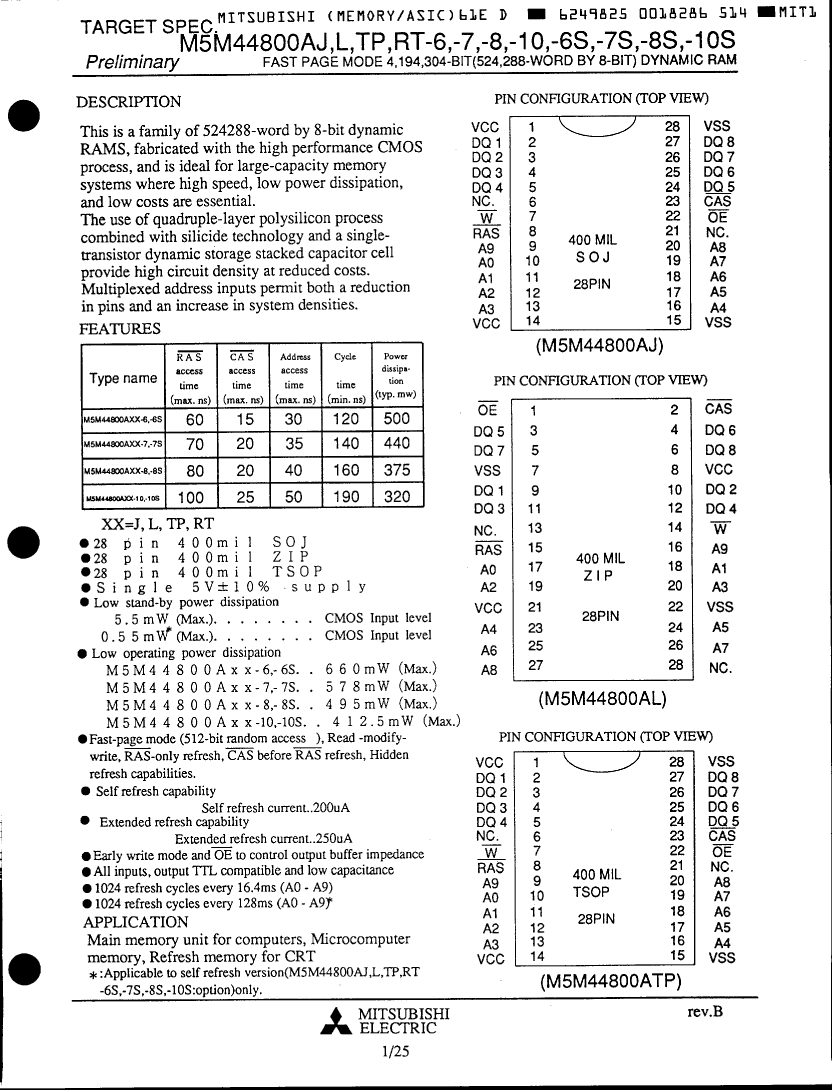

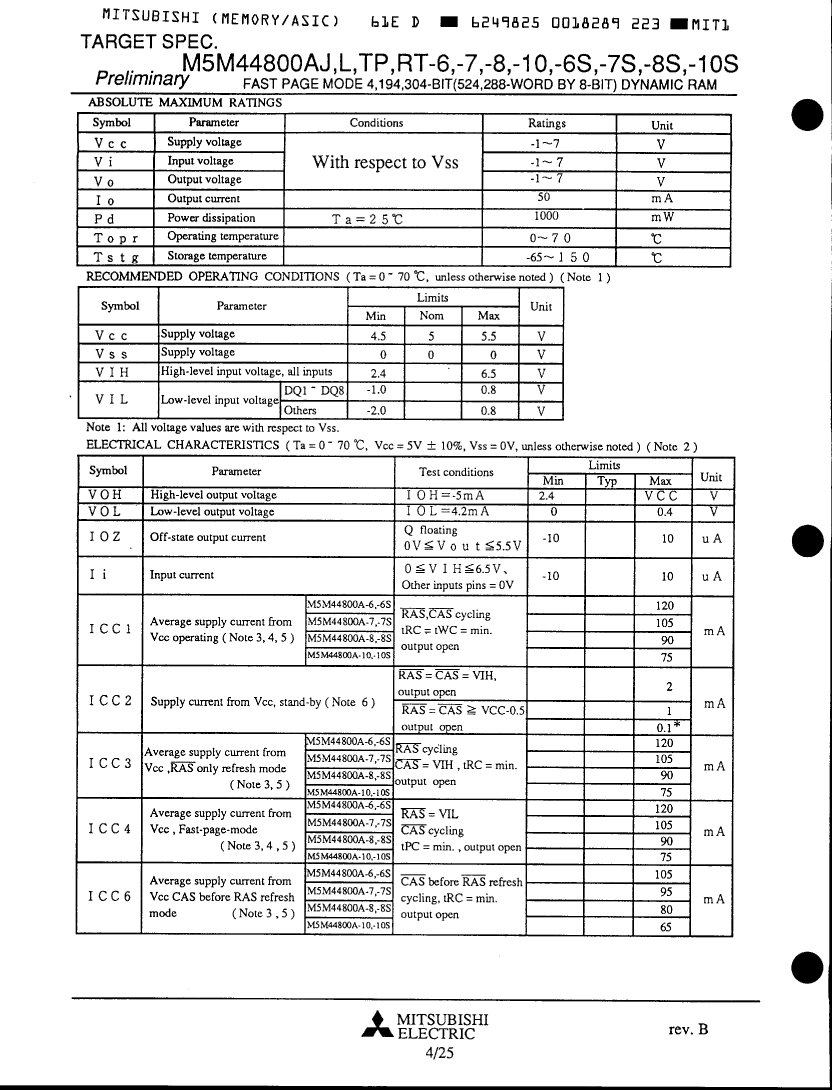

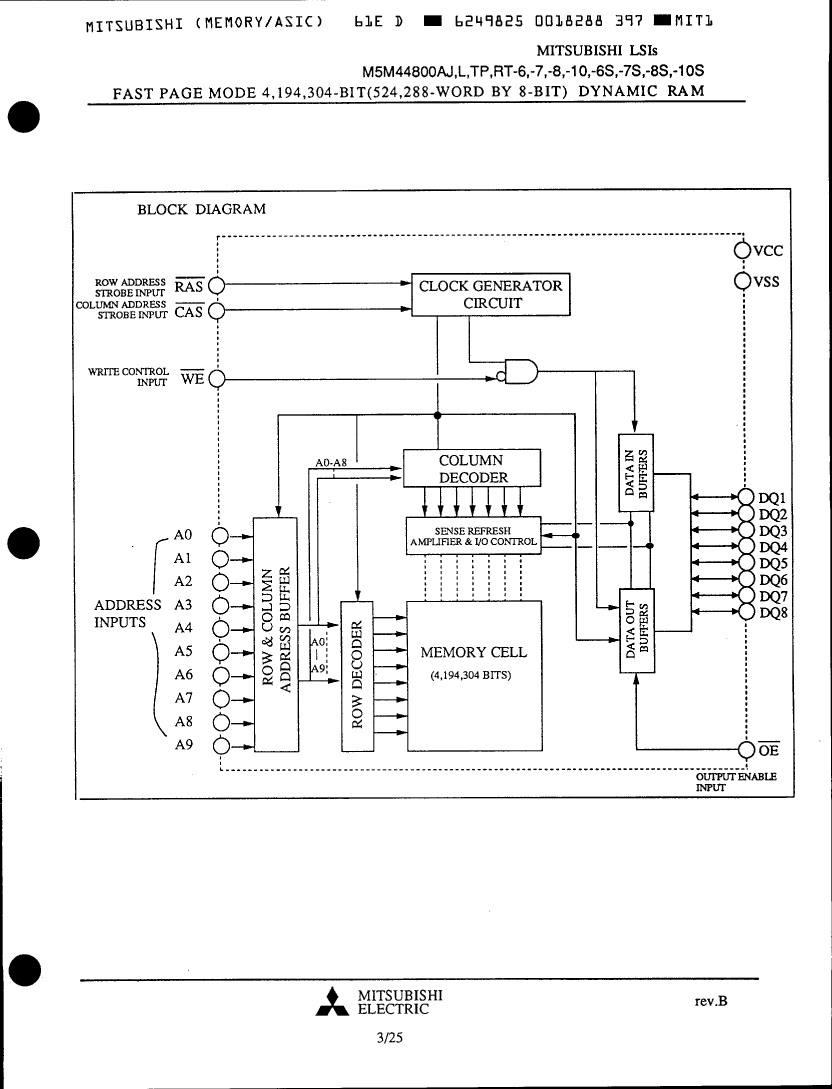

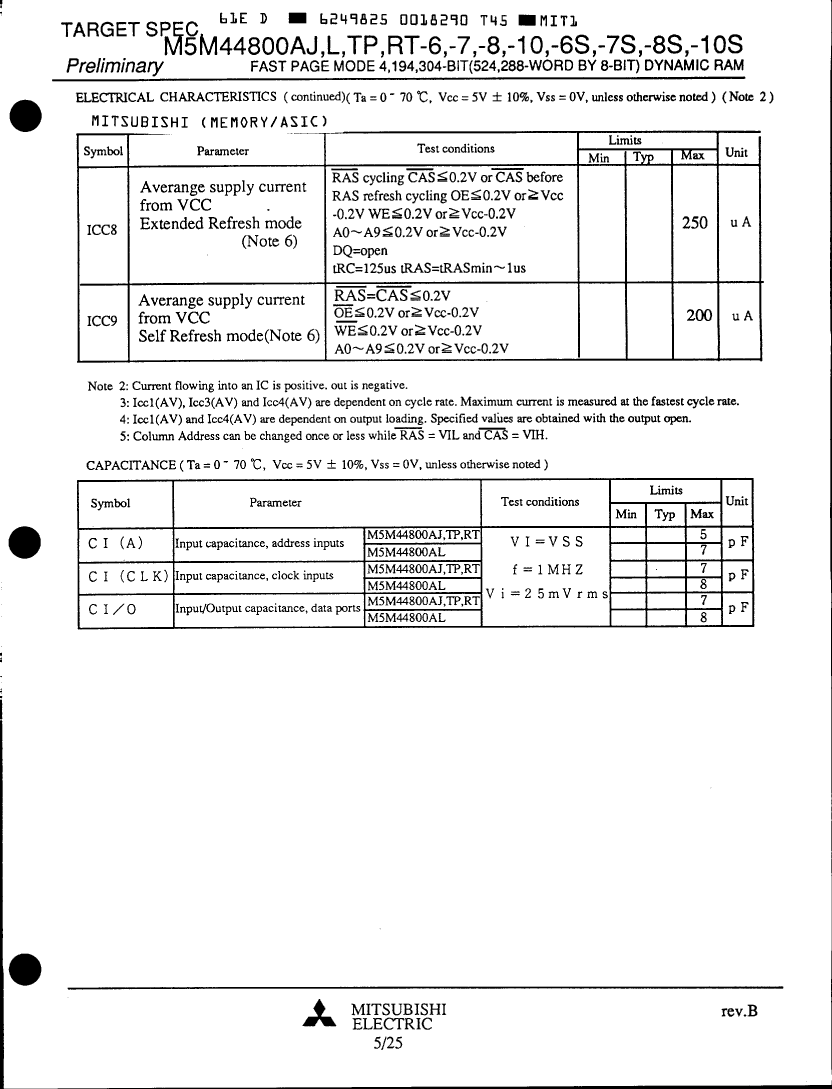

Preview

M5M44800ATP-10S: DescriptionFast Page DRAM, 512KX8, 100ns, CMOS, PDSO28; Categorystorage storage; File Size2MB，25 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M5M44800ATP-10S Overview

Fast Page DRAM, 512KX8, 100ns, CMOS, PDSO28

M5M44800ATP-10S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
package instruction	TSOP, TSOP28,.46
Reach Compliance Code	unknown
Maximum access time	100 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	8
Number of terminals	28
word count	524288 words
character code	512000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP28,.46
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	YES
Maximum standby current	0.0001 A
Maximum slew rate	0.075 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

M5M44800ATP-10S Related Products

	M5M44800ATP-10S	M5M44800ART-10S	M5M44800AJ-10S	M5M44800AL-10S	M5M44800AL-8S
Description	Fast Page DRAM, 512KX8, 100ns, CMOS, PDSO28	Fast Page DRAM, 512KX8, 100ns, CMOS, PDSO28	Fast Page DRAM, 512KX8, 100ns, CMOS, PDSO28	Fast Page DRAM, 512KX8, 100ns, CMOS, PZIP28	Fast Page DRAM, 512KX8, 80ns, CMOS, PZIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
package instruction	TSOP, TSOP28,.46	TSOP, TSOP28,.46	SOJ, SOJ28,.44	ZIP, ZIP28,.1	ZIP, ZIP28,.1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum access time	100 ns	100 ns	100 ns	100 ns	80 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-J28	R-PZIP-T28	R-PZIP-T28
JESD-609 code	e0	e0	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	8	8	8	8	8
Number of terminals	28	28	28	28	28
word count	524288 words	524288 words	524288 words	524288 words	524288 words
character code	512000	512000	512000	512000	512000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	SOJ	ZIP	ZIP
Encapsulate equivalent code	TSOP28,.46	TSOP28,.46	SOJ28,.44	ZIP28,.1	ZIP28,.1
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024
self refresh	YES	YES	YES	YES	YES
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.075 mA	0.075 mA	0.075 mA	0.075 mA	0.09 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	ZIG-ZAG	ZIG-ZAG
