UT54ACS109-UVXR datasheet, PDF

UT54ACS109-UVXR: DescriptionJ-K Flip-Flop, 2-Func, Positive Edge Triggered, CMOS, CDFP16,; Categorylogic logic; File Size264KB，6 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric View All

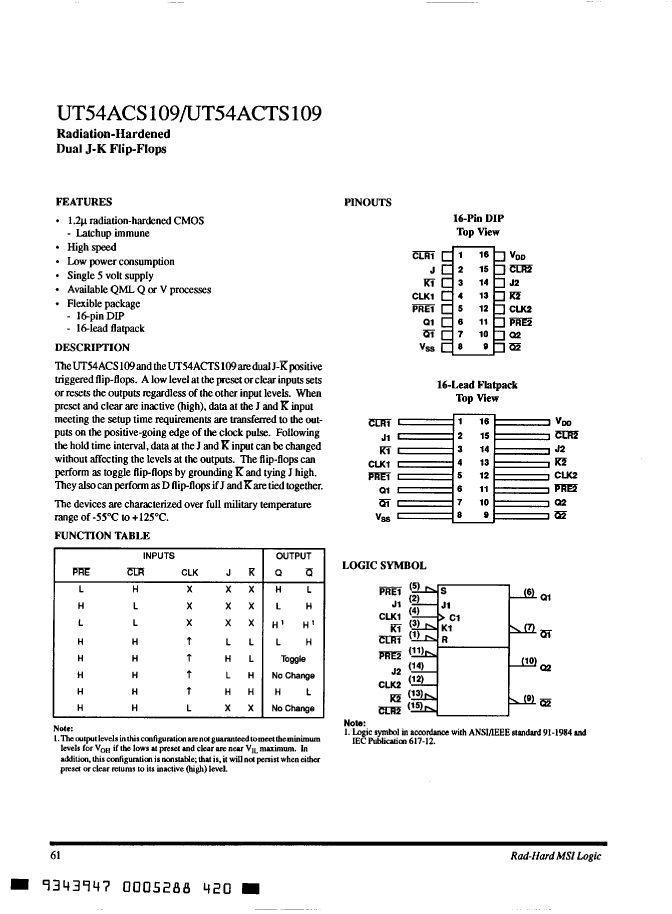

UT54ACS109-UVXR Overview

J-K Flip-Flop, 2-Func, Positive Edge Triggered, CMOS, CDFP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Aeroflex
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
MaximumI(ol)	0.0001 A
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

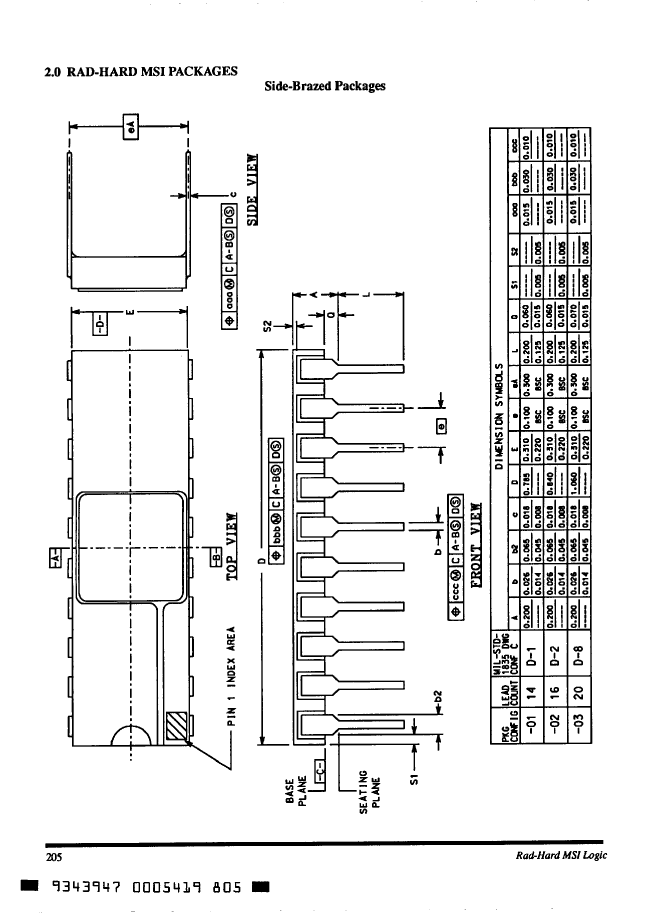

Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK

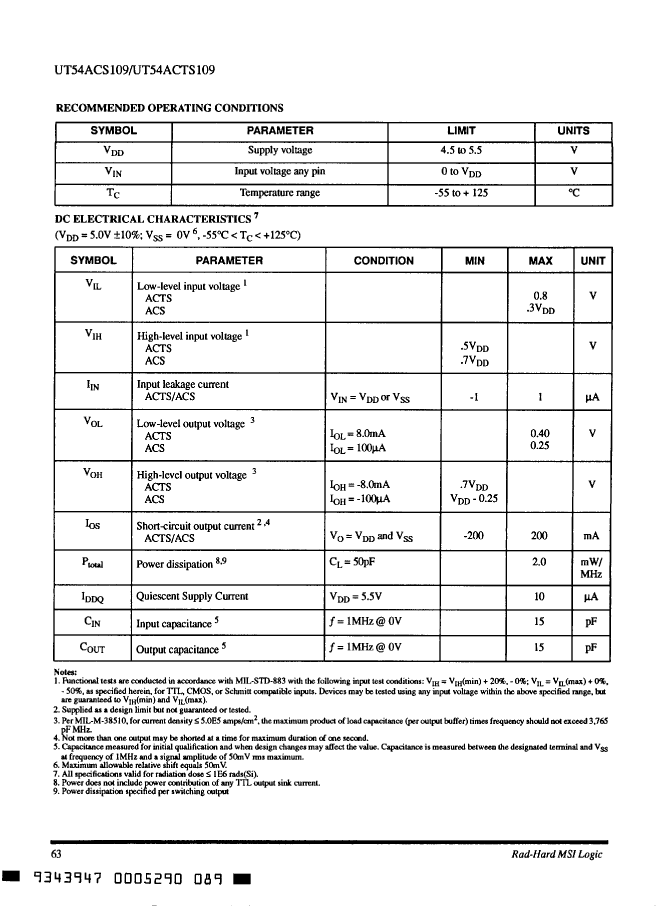

power supply	5 V

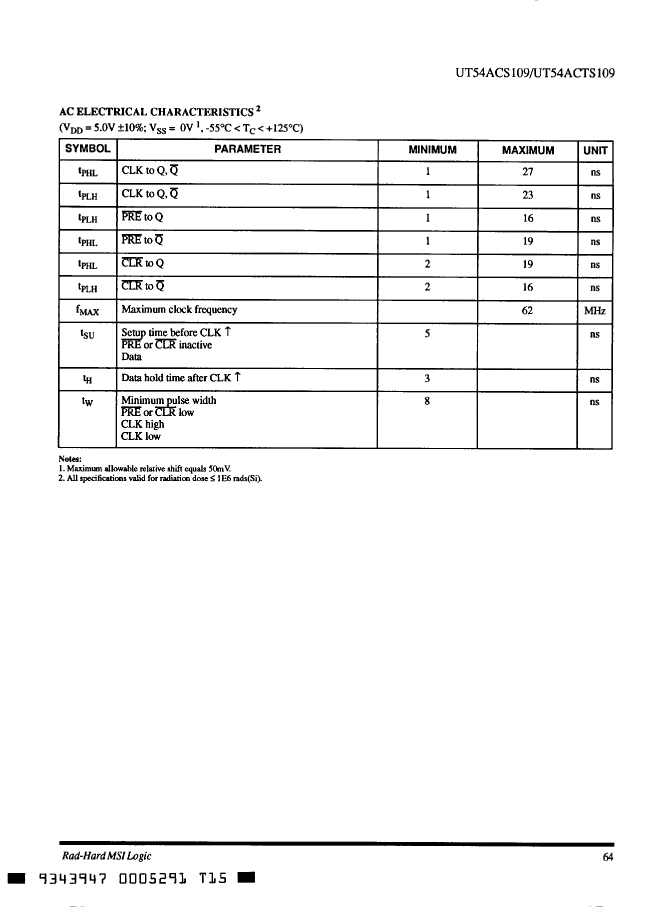

Prop。Delay @ Nom-Sup	27 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

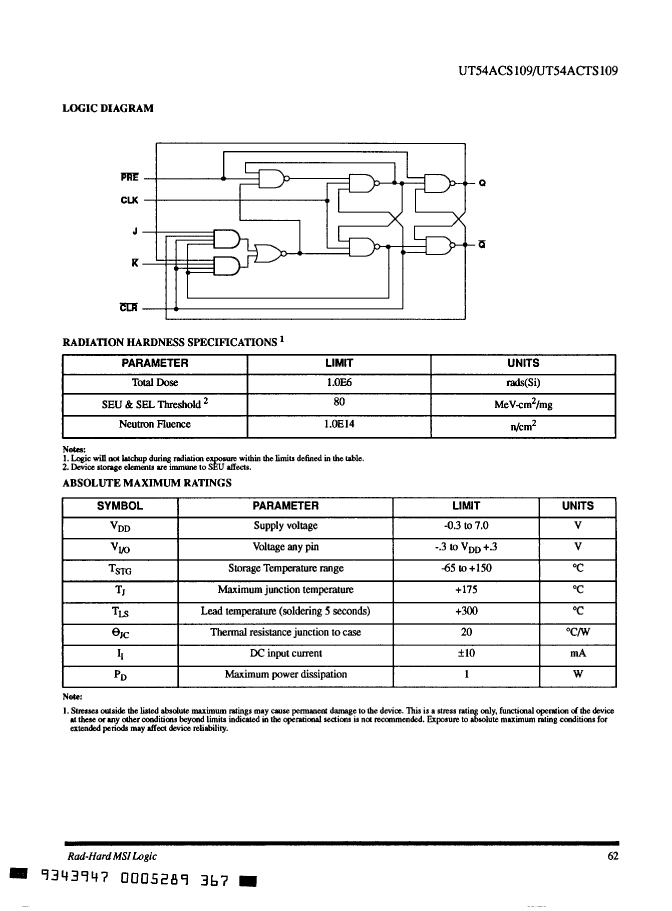

total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
