474RZM050M_13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 474RZM050M_13

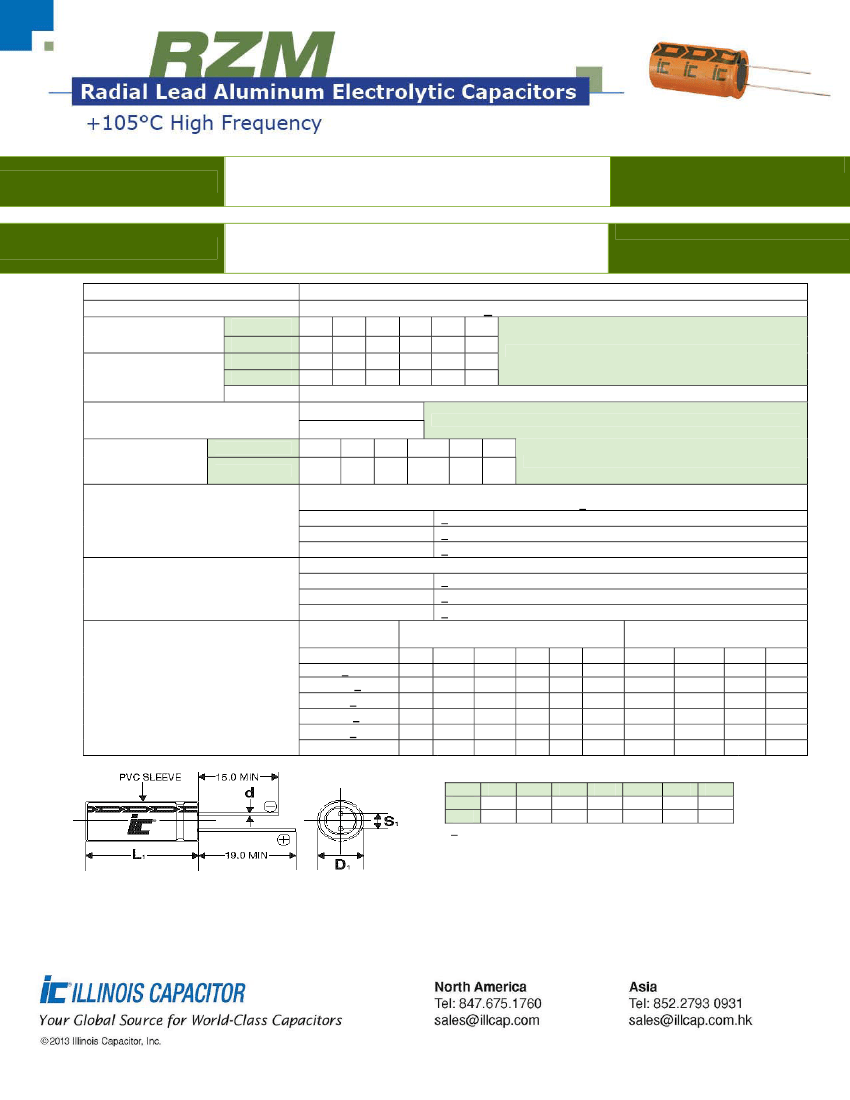

474RZM050M_13: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 330 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size83KB，2 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/

Download Datasheet Parametric View All

474RZM050M_13 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 330 uF, THROUGH HOLE MOUNT

474RZM050M_13 Parametric

Parameter Name	Attribute value
Maximum operating temperature	105 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	16 V
Processing package description	RADIAL LEADED
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	RZM
capacitance	330 uF
packaging shape	CYLINDRICAL PACKAGE
Capacitor type	NON SOLID
Terminal shape	WIRE
equivalent series resistance	0.904ohm
polarity	POLARIZED
tangent angle	0.18
ripple current	327.85mA
leakage current	158.4uA

Preview

Download Datasheet

View All

FEATURES

Low ESR

High Ripple Current

–

Multiple case sizes

APPLICATIONS

Filtering

–

Bypass

–

Coupling

–

Blocking

-55°C to +105°C

+20% at 120 Hz, 20°C

6.3

7.9

6.3

.26

.22

.18

.16

Operating Temperature Range

Capacitance Tolerance

WVDC

Surge voltage

SVDC

WVDC

Tan

Dissipation Factor

Leakage current

Low temperature

stability

Impedance ratio

(120 Hz)

.14

.12

Add .02 for every 1000uF above 1000uF

1 Minute

.03CV

6.3

WVDC

-55°C to +20°C

Load Life

Shelf Life

3000 hours at 105°C with rated WVDC and ripple current applied

(2000 hrs for D<6.3)

Capacitance change

<20% of initial measured value

Dissipation factor

<200% of maximum specified value

Leakage current

<100% of maximum specified value

1000 hours at 105°C with no voltage applied

Capacitance change

<20% initial measured value

Dissipation factor

<200% of maximum specified value

Leakage current

<100% of maximum specified value

Frequency (Hz)

Capacitance

C<4.7

4.7<C<33

33<C<100

100<C<270

270<C<1000

C>1000

.38

.48

.68

.82

120

.43

.51

.72

.83

.91

300

.62

.71

.98

.54

.76

.85

.91

.96

.98

10k

.83

.87

.95

1.0

100k

1.0

+105

1.0

Temperature (°C)

+85

1.73

+65

2.19

+50

2.4

Ripple Current Multipliers

6.3

2.0

2.5

3.5

0.5

0.6

L<16mm, L

=L+1.5mm Max.

L>16mm, L

=L+2mm Max.

=D+0.5mm Max.

=S+0.5 mm

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8
