BL-HF033A: DescriptionSingle Color LED, Super Red, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size89KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HF033A Overview

Single Color LED, Super Red, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2

BL-HF033A Parametric

Parameter Name	Attribute value
Maker	BRIGHT
Objectid	1543620971
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
compound_id	7768178
color	SUPER RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	90.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.4 mm
method of packing	BULK
peak wavelength	660 nm
shape	ROUND
size	1.1 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	60 deg

Preview

Download Datasheet

View All

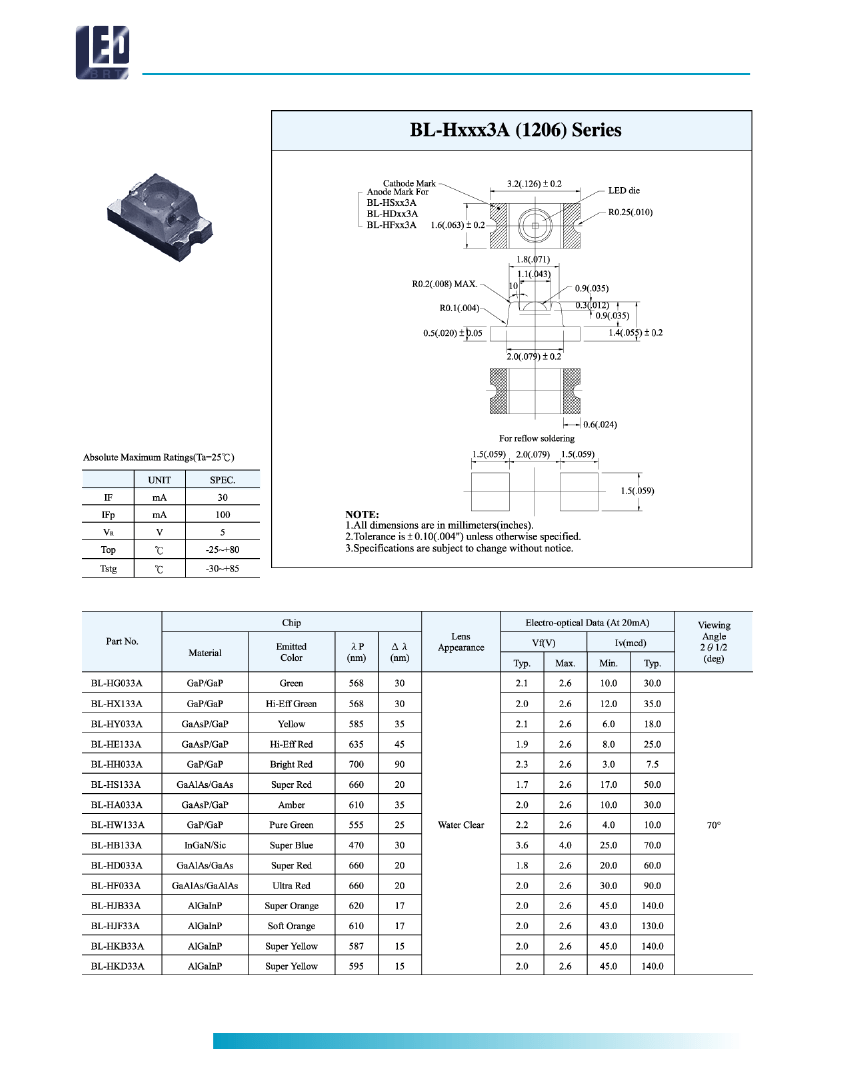

Surface Mount Chip LED Lamps

BL-H Series 1206

Inner Lens

AMERICAN BRIGHT

6

w w w. a m e r i c a n b r i g h t l e d . c o m

.

BL-HF033A Related Products

	BL-HF033A	BL-HG033A	BL-HKD33A	BL-HJF33A	BL-HE133A	BL-HY033A	BL-HH033A	BL-HKB33A
Description	Single Color LED, Super Red, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow Green, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Super Yellow, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Super Amber, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2	Single Color LED, High Efficiency Red, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Yellow, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2	Single Color LED	Single Color LED, Super Yellow, Water Clear, 1.1mm, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
Maker	BRIGHT	BRIGHT	BRIGHT	-	-	BRIGHT	BRIGHT	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2	-	SURFACE MOUNT PACKAGE-2
color	SUPER RED	YELLOW GREEN	SUPER YELLOW	SUPER AMBER	HIGH EFFICIENCY RED	YELLOW	-	SUPER YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	-	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	-	WATER CLEAR
Nominal luminous intensity	90.0 mcd	25.0 mcd	200.0 mcd	160.0 mcd	20.0 mcd	15.0 mcd	-	130.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	-	1
Number of terminals	2	2	2	2	2	2	-	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	-	80 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-	-25 °C
total height	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	1.4 mm	-	1.4 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	-	BULK
peak wavelength	660 nm	568 nm	595 nm	610 nm	640 nm	583 nm	-	590 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	-	ROUND
size	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	1.1 mm	-	1.1 mm
surface mount	YES	YES	YES	YES	YES	YES	-	YES
Terminal pitch	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	-	3.5 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg	60 deg	-	60 deg
