NACX2R2M50V4X5.5TR13: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1717, 5.5MMH CHIP; CategoryPassive components capacitor; File Size99KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

NACX2R2M50V4X5.5TR13 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 2.2uF, Surface Mount, 1717, 5.5MMH CHIP

NACX2R2M50V4X5.5TR13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	, 1717
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	6600 mΩ
high	5.5 mm
JESD-609 code	e0
leakage current	0.003 mA
length	4.6 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	45 mA
series	NACX
size code	1717
surface mount	YES
Delta tangent	0.1
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	FLAT
width	4.3 mm

Preview

Download Datasheet

View All

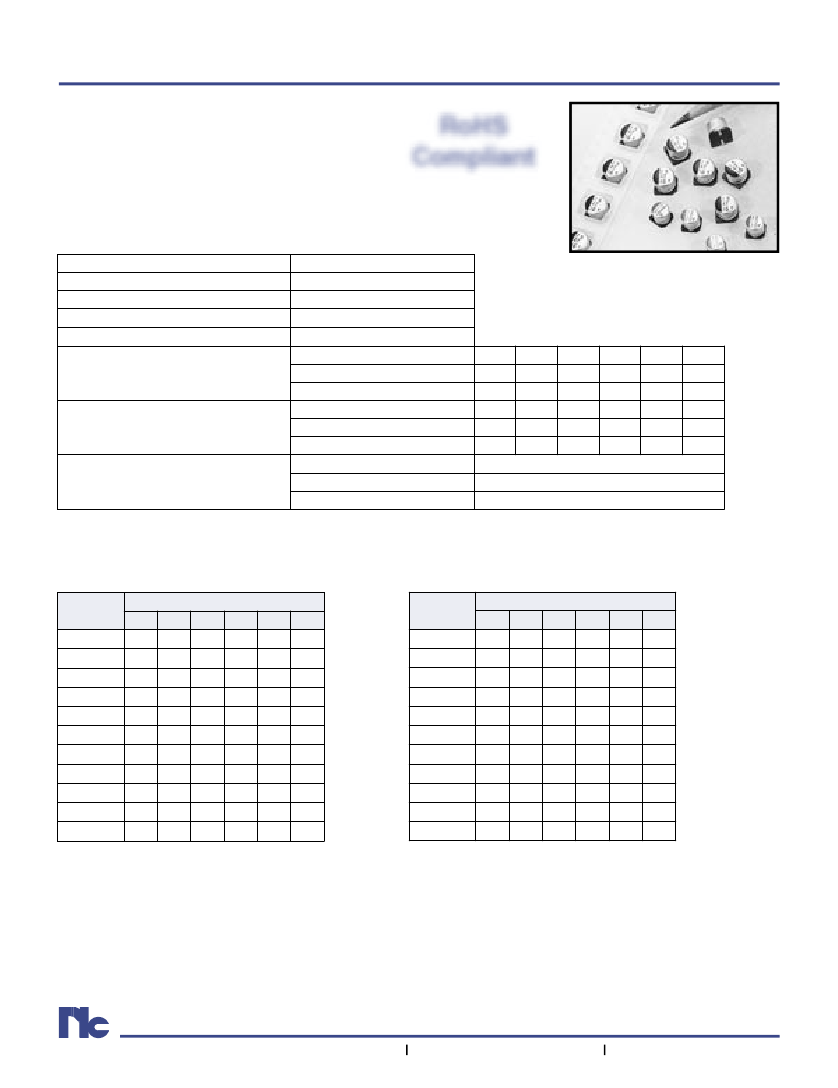

Surface Mount Aluminum Electrolytic Capacitors

FEATURES

• CYLINDRICAL V-CHIP

• VERY LOW IMPEDANCE AT 100KHz

• WIDE TEMPERATURE RANGE (-55 +105

*See Part Number System for Details

• MAXIMUM 5.5mm HEIGHT

• ANTI-SOLVENT (2 MINUTES)

• DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW

SOLDERING

CHARACTERISTICS

NACX Series

RoHS

Compliant

Rated Voltage Range

Rated Capacitance Range

Operating Temperature Range

Capacitance Tolerance

6.3 ~ 50 Vdc

0.47 ~ 150

µF

-55° ~ +105°C

±20%(M), ±10%(K)*

W.V. (Vdc)

6.3

8.0

0.24

6.3

0.20

0.16

0.14

0.12

0.10

Max. Leakage Current After 2 Minutes at 20°C 0.01CV or 3

A, whichever is greater

Surge Voltage & Max. Tan

Low Temperature

Stability

(Impedance Ratio at 120Hz)

Load Life

Test

105°C 1,000 Hours

S.V. (Vdc)

Tand @ 120Hz/20°C

W.V. (Vdc)

Z-40°C/Z +20°C

Z-55°C/Z +20°C

Capacitance Change

Tan

Leakage Current

Within + 25% of initial measured value

Less than 200% of specified value

Less than specified value

* Optional ± 10% (K) Tolerance available on most values. Contact factory for availability.

MAXIMUM PERMISSIBLE RIPPLE CURRENT

(mA rms AT 100KHz AND 105

Cap (

0.47

1.0

2.2

3.3

4.7

100

150

140

Working Voltage (Vdc)

6.3

140

120

MAXIMUM IMPEDANCE

(Ω AT 20

C AND 100KHz)

Cap (

0.47

1.0

2.2

3.3

4.7

100

150

3.6

1.5

0.8

0.7

1.5

0.8

3.6

1.5

0.8

3.6

1.5

0.8

Working Voltage (Vdc)

6.3

6.5

3.6

1.5

0.8

8.0

7.4

6.6

5.4

2.9

1.3

NIC COMPONENTS

www.niccomp.com

www.lowESR.com

www.RFpassives.com
