DR24D06_13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> DR24D06_13

DR24D06_13: DescriptionTRANSISTOR OUTPUT SOLID STATE RELAY, 4000V ISOLATION-MAX; CategoryLED optoelectronic/LED; File Size763KB，7 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml

Download Datasheet Parametric View All

DR24D06_13 Overview

TRANSISTOR OUTPUT SOLID STATE RELAY, 4000V ISOLATION-MAX

DR24D06_13 Parametric

Parameter Name	Attribute value
Maximum operating temperature	80 Cel
Minimum operating temperature	-30 Cel
Number of functions	1
Processing package description	ROHS COMPLIANT PACKAGE-4
state	ACTIVE
Optoelectronic device type	TRANSISTOR OUTPUT
Maximum input control current	11 mA
Maximum insulation voltage	4000 V
On-state resistance	0.0450 ohm
Maximum output current	12000 A

Preview

Download Datasheet

View All

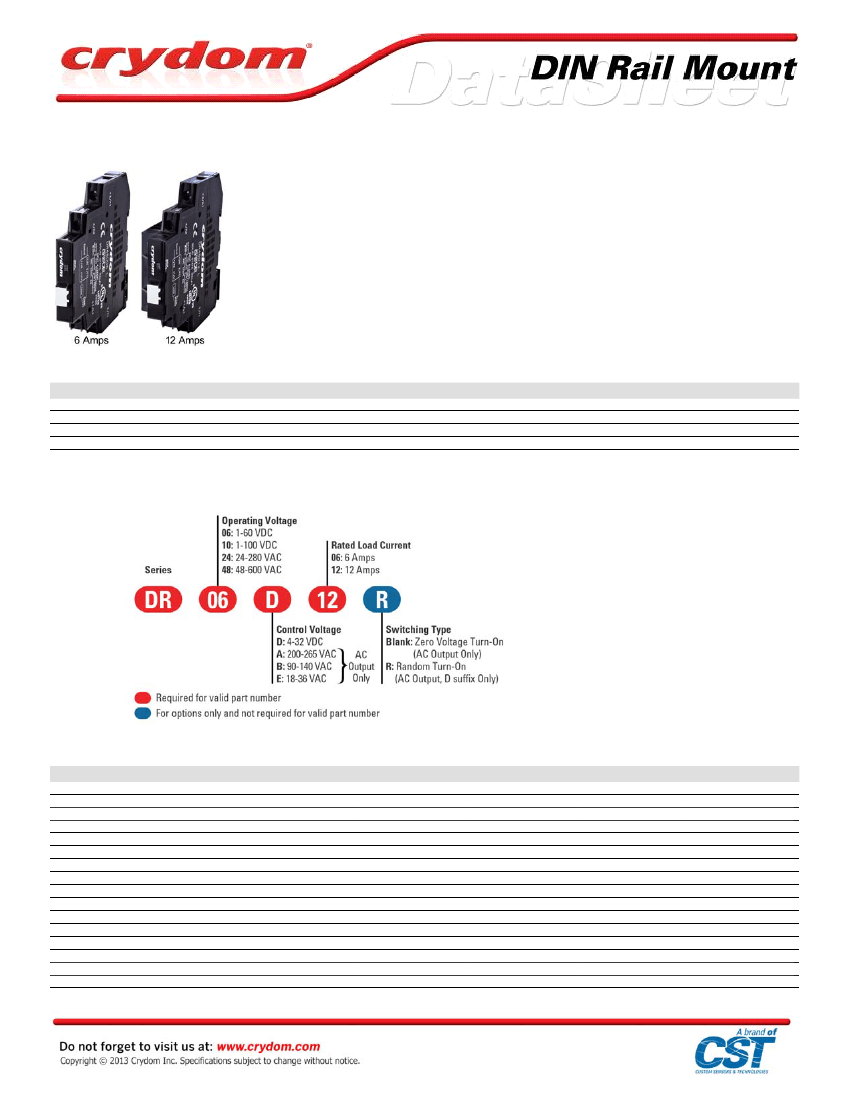

SeriesOne DR Series

• Ratings of 6 & 12 Amps

• Load voltage ratings of 1-60VDC, 1-100VDC, 24-280VAC and 48-600VAC

• Fits standard 35mm DIN-RAIL

• LED input status indicator

• AC or DC control

• Zero-crossing (resistive loads) or random turn-on (inductive loads) output

• UL and cUL Listed, HP Rated CE & RoHS Compliant

• UL 508 Endurance Rating for Enhanced Reliability

PRODUCT SELECTION

Description

4-32 VDC Control

90-140 VAC Control

200-265 VAC Control

18-36 VAC Control

280V, 6A

DR24D06

DR24B06

DR24A06

280V, 12A

DR24D12

DR24B12

DR24A12

600V, 6A

DR48D06

600V, 12A

DR48D12

DR48B12

DR48A12

60V, 6A

DR06D06

60V, 12A

DR06D12

100V, 6A

DR10D06

100V, 12A

DR10D12

DR24E06

AVAILABLE OPTIONS

OUTPUT SPECIFICATIONS AC Output (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Load Current, resistive [Arms] (2)

Minimum Load Current [Arms]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (3)

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Maximum Surge Current (50/60 Hz, 1 cycle) [Apk]

Maximum I²t for Fusing (50/60 HZ, 1/2 cycle) [A² sec]

HP Rating UL 508/IEC60947 [HP (KW)] @ 240V

HP Rating UL 508/IEC60947 [HP (KW)] @ 380V

HP Rating UL 508/IEC60947 [HP (KW)] @ 480V

Minimum Power Factor (with Maximum Load)

Min/Max stranded wire

Min/Max solid wire

Weight (typical)

DR24x06

24-280

600

0.15

0.1

500

1.3

285/300

410/375

1/2 (.37)

1 (.75)

2 (1.5)

0.5

22/14 AWG

1.76 oz. (50g)

DR24x12

24-280

600

0.15

0.1

500

1.3

715/750

2560/2330

1 (.75)

2 (1.5)

3 (2.2)

0.5

22/14 AWG

3.17 oz. (90g)

DR48X06

48-600

1200

0.15

0.1

500

1.3

285/300

410/375

1/2 (.37)

1 (.75)

2 (1.5)

0.5

22/14 AWG

1.76 oz. (50g)

DR48x12

48-600

1200

0.15

0.2

500

1.3

715/750

2560/2330

1 (.75)

2 (1.5)

3 (2.2)

0.5

22/14 AWG

3.17 oz. (90g)
