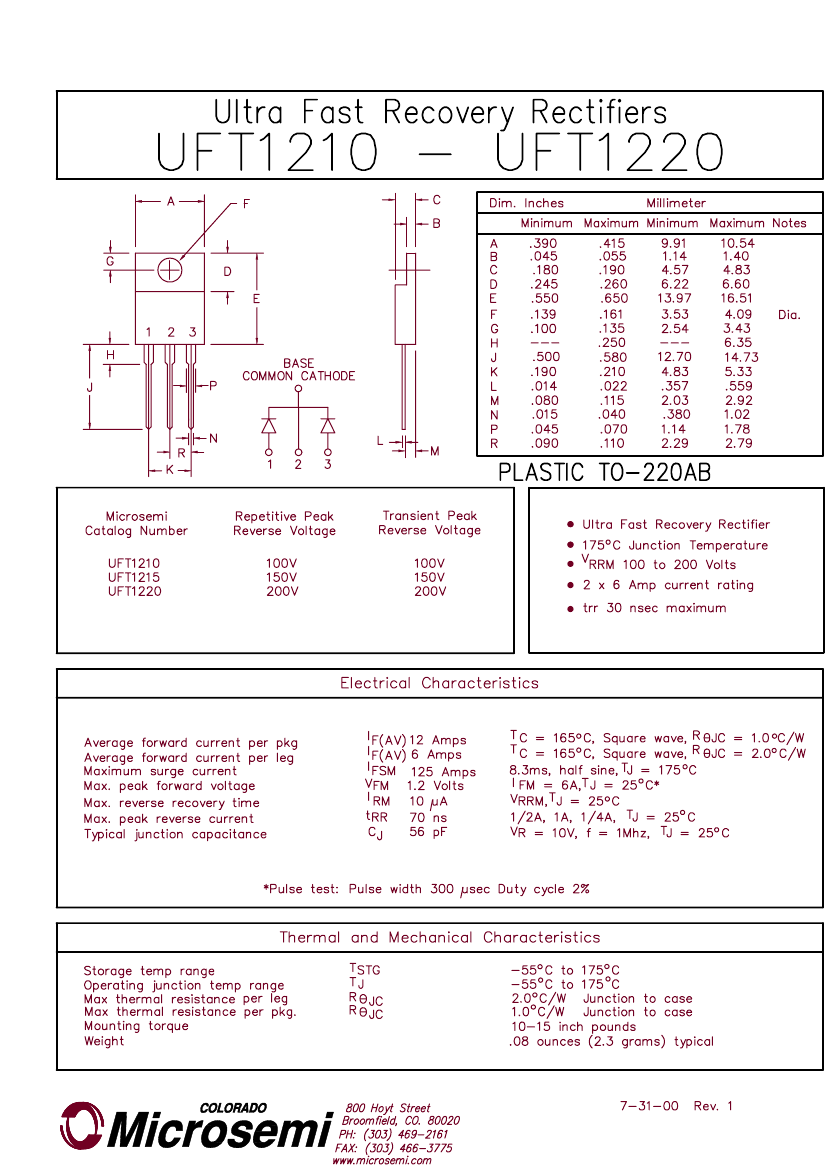

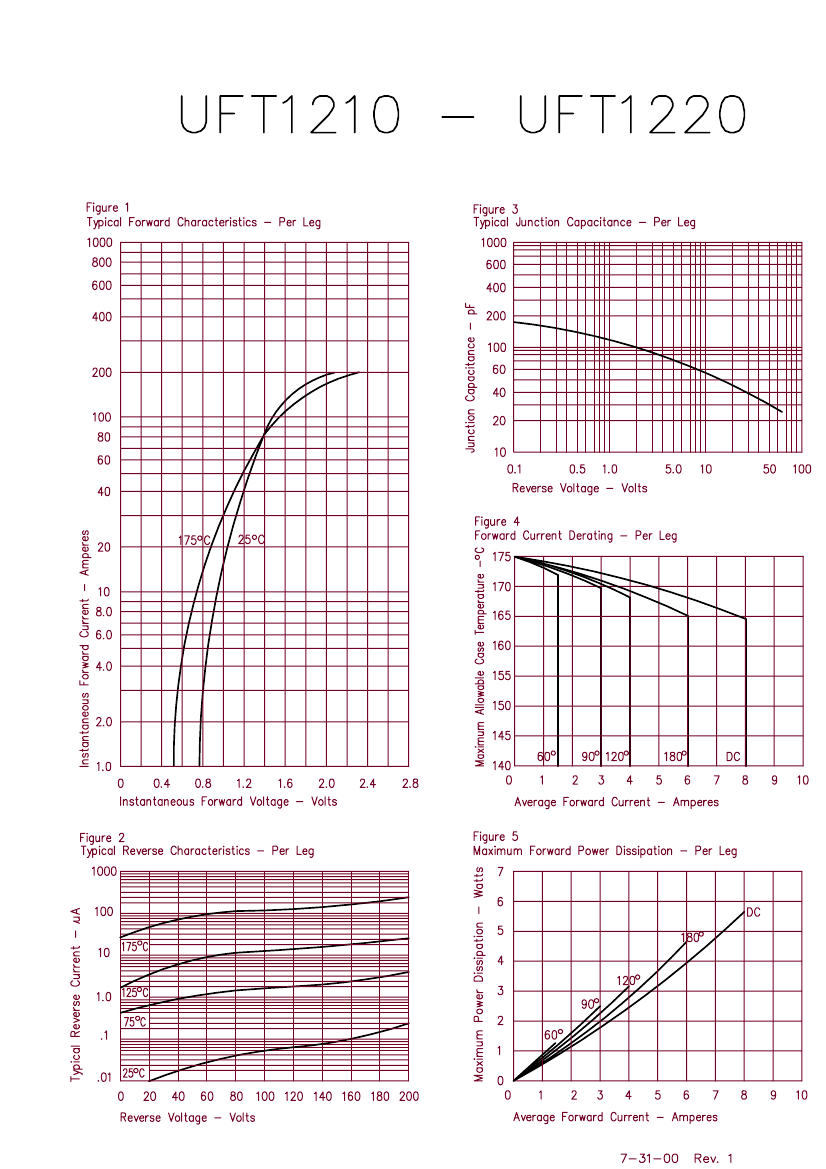

UFT1220: DescriptionRectifier Diode, 1 Phase, 2 Element, 6A, 200V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size125KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFT1220 Overview

Rectifier Diode, 1 Phase, 2 Element, 6A, 200V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3

UFT1220 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1439108342
Parts packaging code	TO-220AB
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	125 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

UFT1220 Related Products

	UFT1220	UFT1215	UFT1210
Description	Rectifier Diode, 1 Phase, 2 Element, 6A, 200V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3	ULTRA FAST RECOVERY RECTIFIERS	ULTRA FAST RECOVERY RECTIFIERS
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	TO-220AB	TO-220AB	TO-220AB
package instruction	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3
Contacts	3	3	3
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	125 A	125 A	125 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	6 A	6 A	6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	150 V	100 V
Maximum reverse recovery time	0.03 µs	0.03 µs	0.03 µs
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
