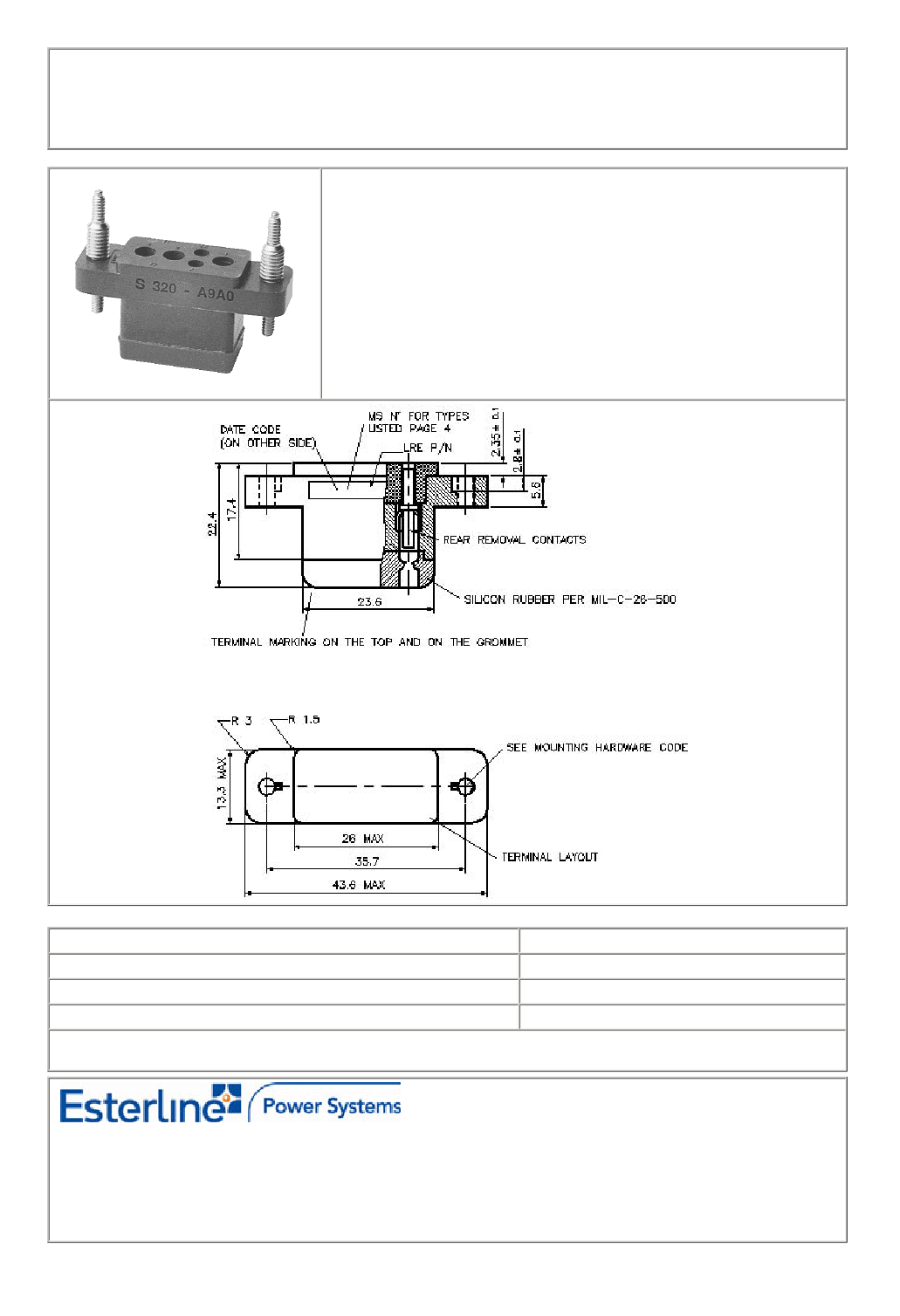

S320
ENGINEERING DATA SHEET
RELAY SOCKET
25 AMP
BASIC SOCKET SERIES DESIGNATION FOR:
Series M320
GENERAL CHARACTERISTICS
Crimp tool
Insertion and extraction tool
Weight
Temperature range
M 22520/1-01 with turret M 22520/1-02 or MS 3191-1
NAS 1664-12 / 1664-16.
25g max.
-70° C to +125° C.
This connection is designed to the standards and requirements of MIL-S-12883 Contacts and hardware to be delivered disassembled in
a plastic bag. Tolerances, unless otherwise, specified ±0.25mm.
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Featuring
LEACH
©
power and control solutions
www.esterline.com
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 3/06
- 21 -
Page 1 of 3

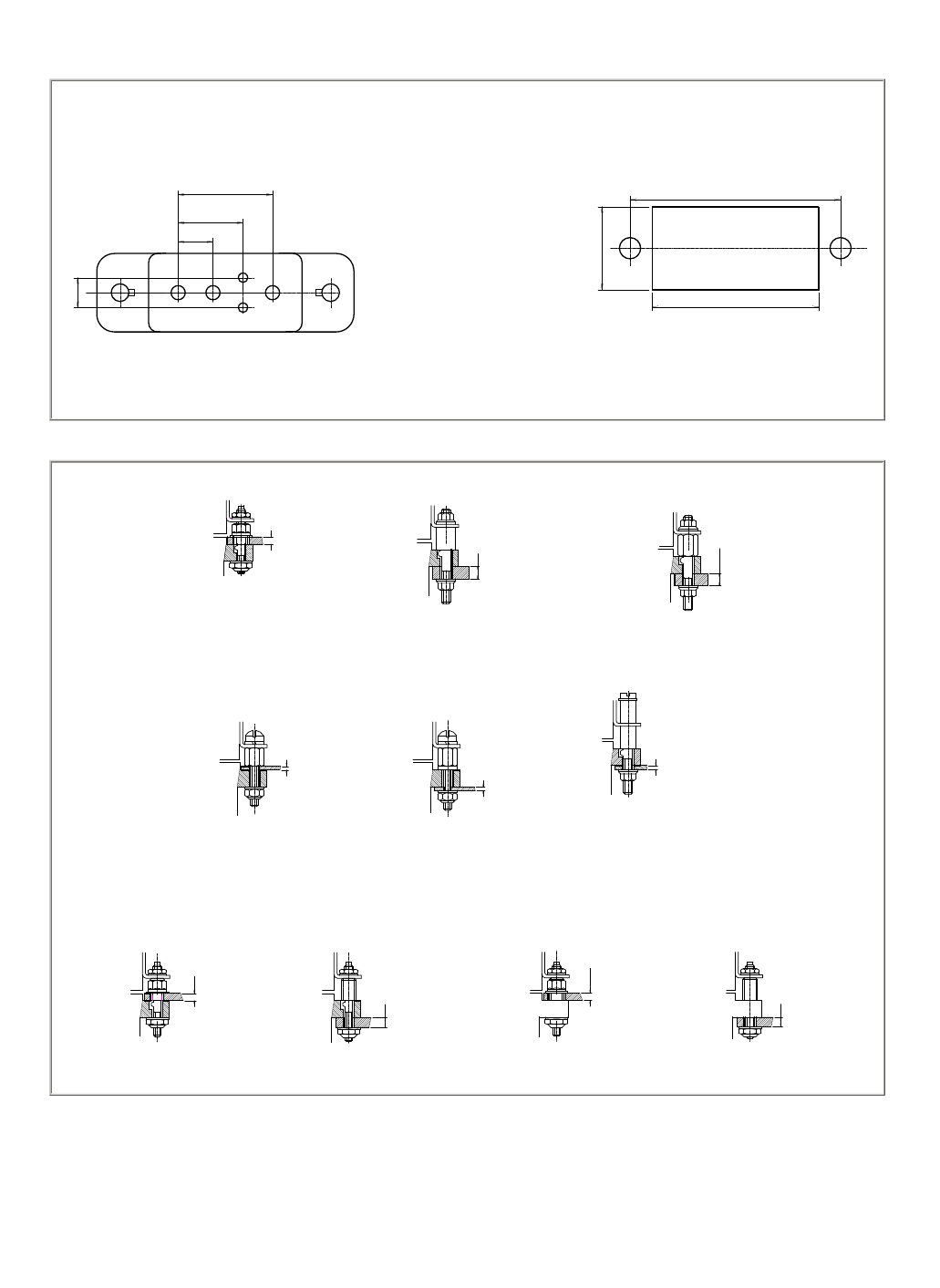

TERMINAL LAYOUT
CODE B S320
S320
MOUNTING HOLE LAYOUT
16.0
11.0
5.9
35.7
0.3
± 0.1
3
5.08
2
X2
X1
1
28.2
14.1
±
± 0.3
FOR HOLE CLEARANCE,
SEE HARDWARE CODE
MOUNTING HARDWARE
CODE 1 : 05-284-12
LOOSE UNC HARDWARE
BOTTOM MOUNT
2.4 MAX
CODE 2 : 05-284-00
LOOSE METRIC HARDWARE
TOP MOUNT
CODE 3 : 05-284-07
LOOSE METRIC HARDWARE
TOP MOUNT
MOUNTING TORQUE
NUT 4/40:0,45 ±0,1 Nm
NUT 10-32:1,2 MAX
:3,6 mm
MOUNTING TORQUE:0,45 ±0,1 Nm
:3,6 mm
MOUNTING TORQUE:0,45 ±0,1 Nm
:3,6 mm
CODE 6 : 05-284-13
UNC HARDWARE
BOTTOM MOUNT
TOP MOUNT
CODE 7 : 05-284-15
METRIC HARDWARE
TOP MOUNT
1.2
1.2
MOUNTING TORQUE:0,45 ±0,1 Nm
MOUNTING HOLE:3,6 mm
MOUNTING HOLE:3,6 mm
MOUNTING TORQUE:0,45 ±0,1 Nm
FOR RELAYS WITH CODE B TERMINALS
MOUNTING HOLE:3,6 mm
CODE 8 : 05-284-20
LOOSE UNC STUDS MIL-S-12883/41 - EDIT C
BOTTOM MOUNT
TOP MOUNT
CODE 9 : 05-284-21
FIXED UNC STUDS PER MIL-S-12883/41 - EDIT C
BOTTOM MOUNT
TOP MOUNT
2.4
2.4 MAX
1.2
4.0 MAX
4.0
MOUNTIONG TORQUE: NUT 4/40:0,45 ±0,1 Nm - NUT 10-32: 1,2 MAX
MOUNTING HOLE: 5,3 mm
MOUNTING HOLE: 3,6 mm
MOUNTING TORQUE: NUT 4/40:0,45 ±0,1 Nm - NUT 10-32: 1,2 MAX
MOUNTING HOLE: 5,3 mm
MOUNTING HOLE: 3,6 mm
Date of issue: 3/06
- 22 -
3.2 MAX
3.2
Page 2 of 3
GROMMET TO SEAL ON WIRE INSULATION DIA
Code A
Diam from 2.8 ......3.4mm
S320
CONTACT SIZE AND STYLE
Code 8
05 910 00
Crimp end to
accomodate
AWG12-14
Contact mating end #12
Code 10
05 910 01
Crimp end to
accomodate
AWG16
Contact mating end #12
Coil contacts X1-X2
05 911 00
Crimp end to
accomodate
AWG16-18-20
Coil contacts X1-X2
05 910 01
Crimp end to
accomodate
AWG16-18-20
Contact mating end #16
Contact mating end #16
Code 0
Without contacts
Code 11
30 976 00
MIL-C-39029/92-535
Bin Code color bands
or Bin Code numbering
on crimpside
Code 13
31 099 00
MIL-C-39029/92-536
Bin Code color bands
or Bin Code numbering
on crimpside
Crimp end to accomodate
AWG 12
Contact mating end #12
Crimp end to accomodate
AWG 16
Contact mating end #12
Coil contacts
X1-X2
30 315 00
MIL-C-39029/92-533
Bin Code color bands
or Bin Code numbering
on crimpside
Coil contacts
X1-X2
30 315 00
MIL-C-39029/92-533
Bin Code color bands
or Bin Code numbering
on crimpside
Crimp end to accomodate
AWG16-18-20
Contact mating end #16
Crimp end to accomodate
AWG16-18-20
Contact mating end #16
SOCKET NUMBERING SYSTEM
S320 A
1
A
8
1-Basic socket designation________________________|
|
|
|
|
2-Terminal Layout_____________________________________|
|
|
|
3-Mounting Hardware_______________________________________|
|
|
4-Grommet to seal on wire insulation__________________________|
|
5-Contact size and style___________________________________________|
Date of issue:
3/06
- 23 -
Page 3 of 3
