IL-Y-10S-S15C3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> IL-Y-10S-S15C3

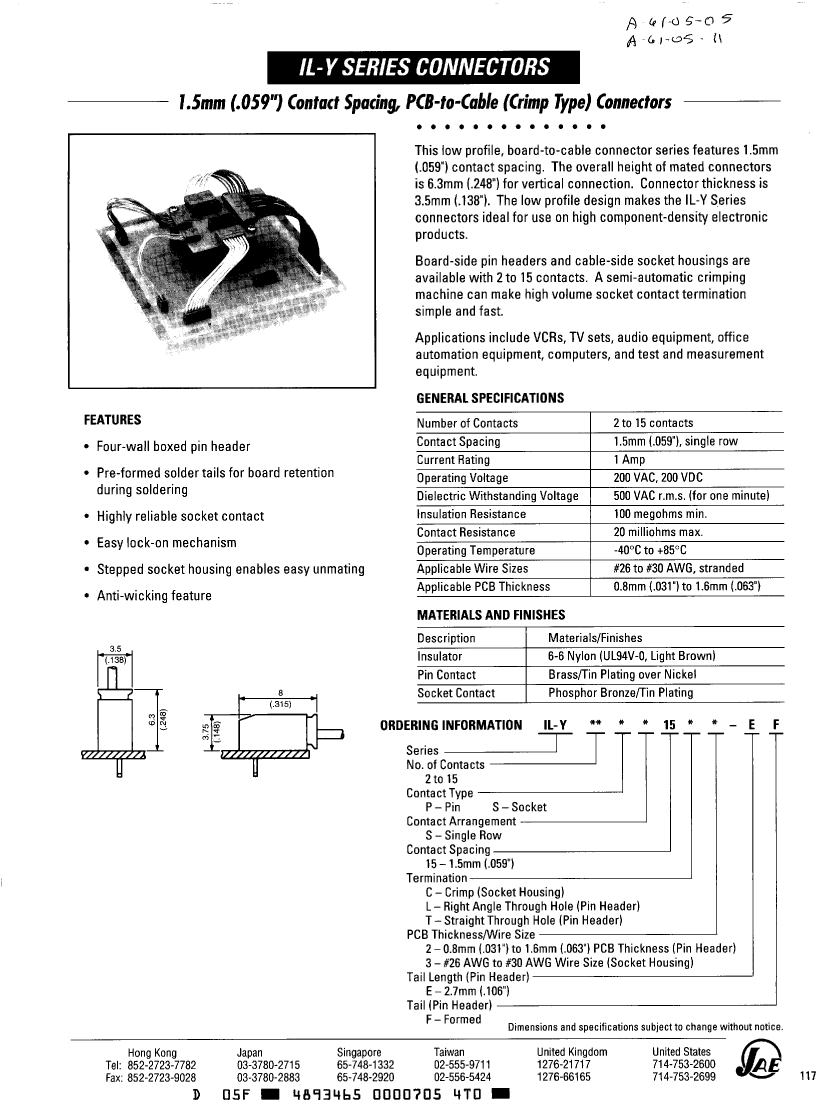

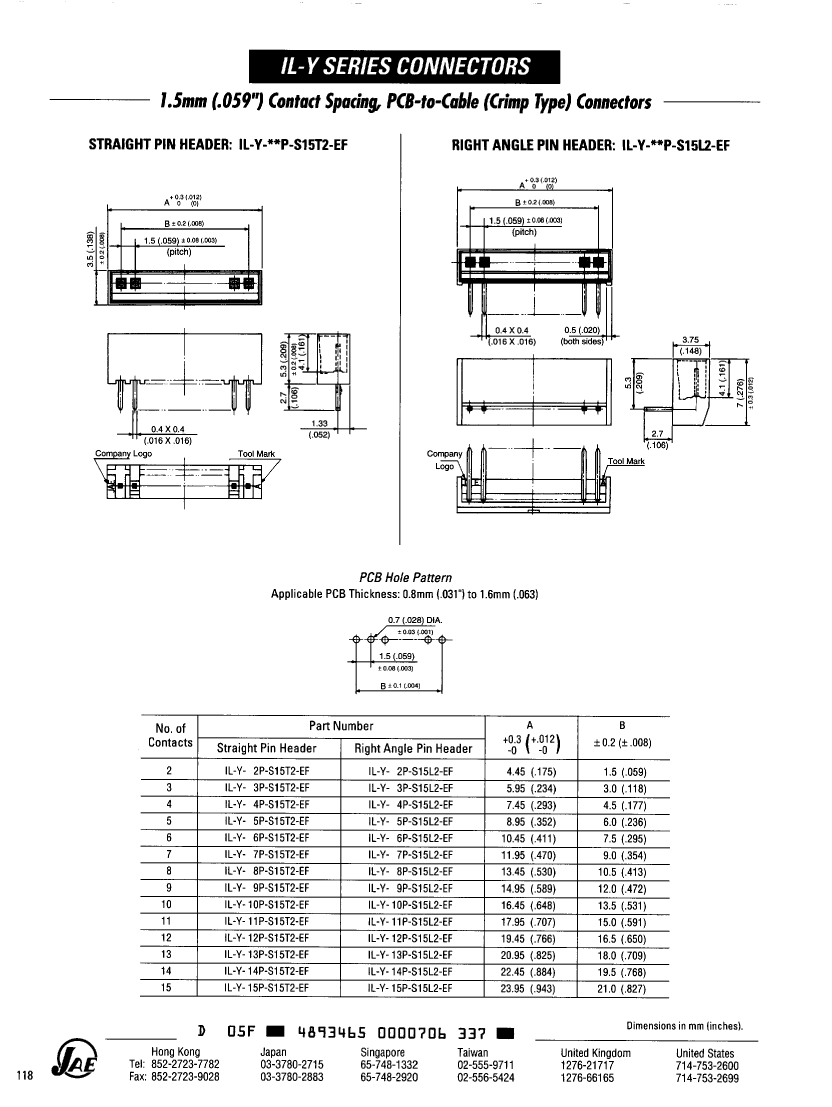

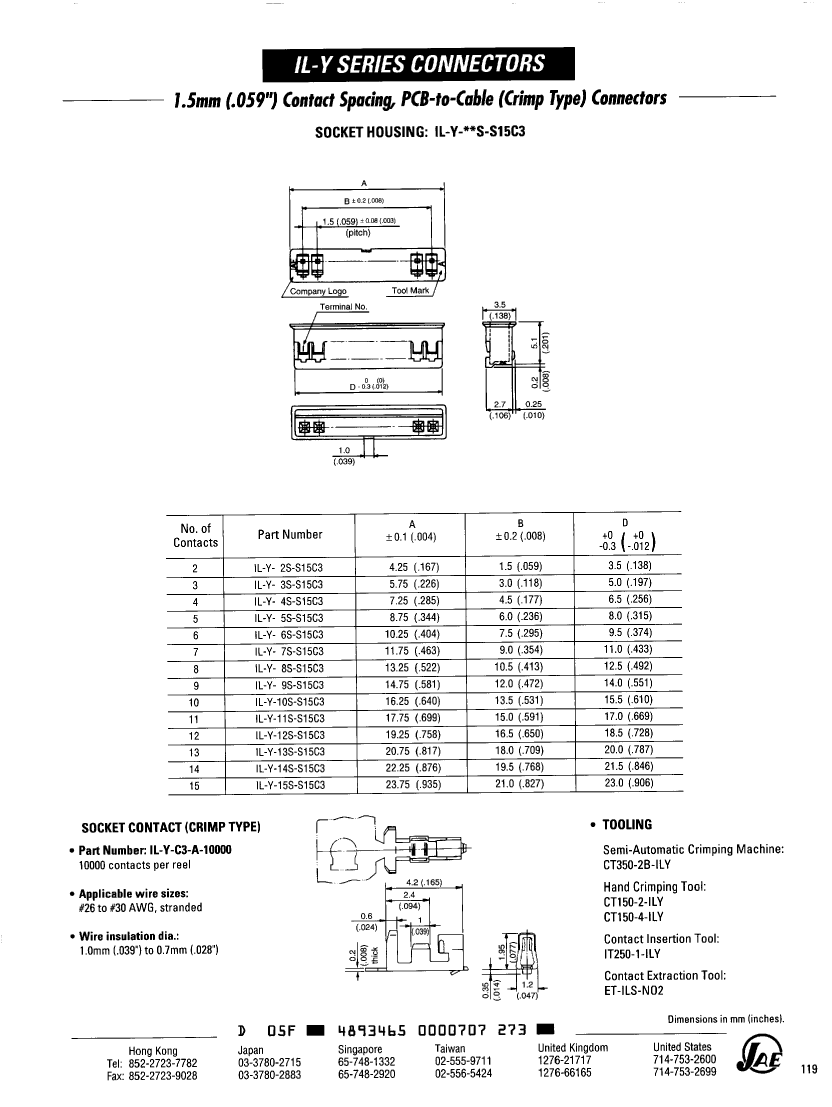

IL-Y-10S-S15C3: DescriptionBoard Connector, 10 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Brown Insulator, Plug; CategoryThe connector The connector; File Size245KB，3 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

IL-Y-10S-S15C3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IL-Y-10S-S15C3	-	-	View	Buy Now

IL-Y-10S-S15C3 Overview

Board Connector, 10 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Brown Insulator, Plug

IL-Y-10S-S15C3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
body width	0.138 inch
subject depth	0.209 inch
body length	0.64 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Insulator color	BROWN
insulator material	NYLON
Manufacturer's serial number	IL-Y
Plug contact pitch	0.059 inch
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	10

Preview

Download Datasheet

View All

IL-Y-10S-S15C3 Related Products

	IL-Y-10S-S15C3	IL-Y-05S-S15C3	IL-Y-13P-S15T2-EF	IL-Y-15S-S15C3	IL-Y-10P-S15T2-EF	IL-Y-12P-S15T2-EF	IL-Y-09P-S15T2-EF
Description	Board Connector, 10 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Brown Insulator, Plug	Board Connector, 5 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Brown Insulator, Plug	Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.059 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Female, 0.059 inch Pitch, Brown Insulator, Plug	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.059 inch Pitch, Solder Terminal, Brown Insulator, Receptacle	Board Connector	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.059 inch Pitch, Solder Terminal, Brown Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Manufacturer's serial number	IL-Y	IL-Y	IL-Y	IL-Y	IL-Y	IL-Y	IL-Y
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	-
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	-	-	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
body width	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	-	0.138 inch
subject depth	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	-	0.209 inch
body length	0.64 inch	0.344 inch	0.825 inch	0.935 inch	0.648 inch	-	0.589 inch
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	RECEPTACLE	-	RECEPTACLE
Contact point gender	FEMALE	FEMALE	MALE	FEMALE	MALE	-	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Insulator color	BROWN	BROWN	BROWN	BROWN	BROWN	-	BROWN
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	-	NYLON
Plug contact pitch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	-	0.059 inch
Number of rows loaded	1	1	1	1	1	-	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Guideline	UL	UL	UL	UL	UL	-	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Total number of contacts	10	5	13	15	10	-	9
Contact to complete cooperation	-	-	SN ON NI	-	SN ON NI	TIN OVER NICKEL	SN ON NI
Contact completed and terminated	-	-	GOLD	-	GOLD	Tin (Sn) - with Nickel (Ni) barrier	GOLD
