CPB8614-0262 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CPB8614-0262

CPB8614-0262: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug,; CategoryThe connector The connector; File Size106KB，3 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CPB8614-0262 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug,

CPB8614-0262 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/O FRAME & BOSS,TRAY PACK
Board mount options	SOLDER HOLDING FLANGE
body width	0.199 inch
subject depth	0.177 inch
body length	0.413 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	PB-10
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2418 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

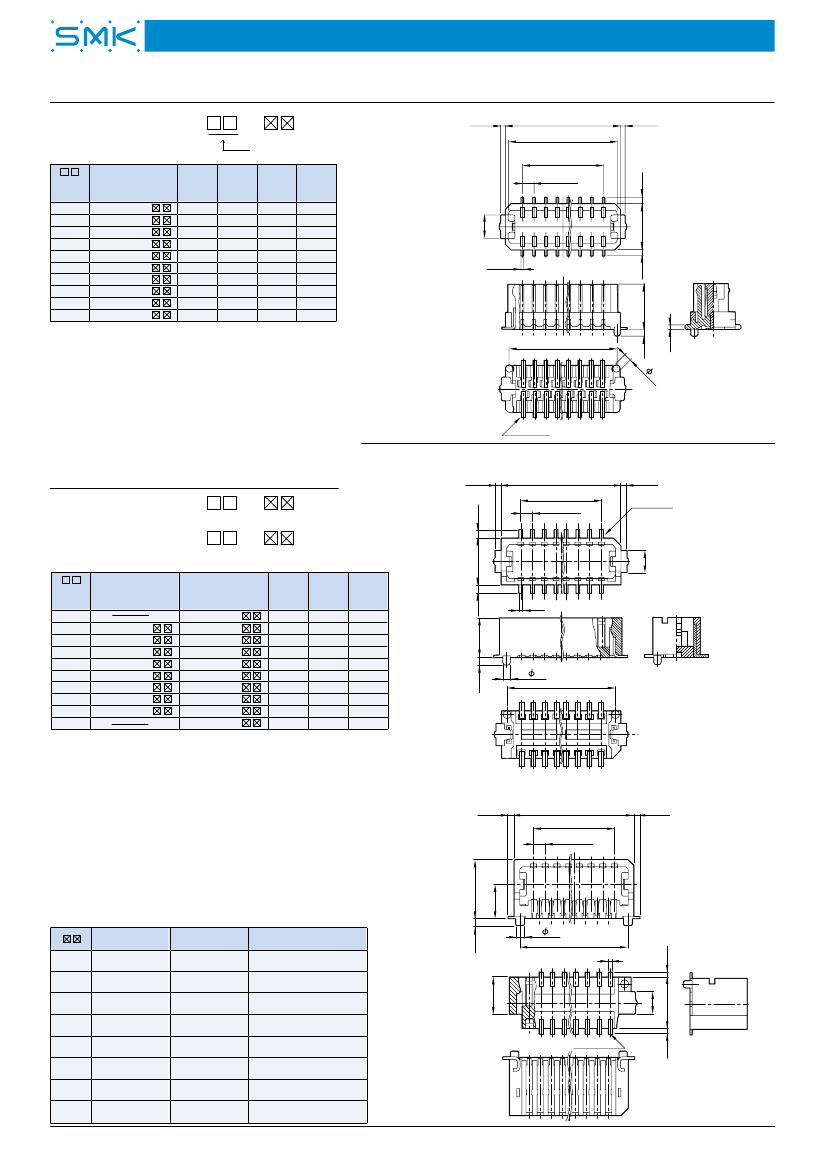

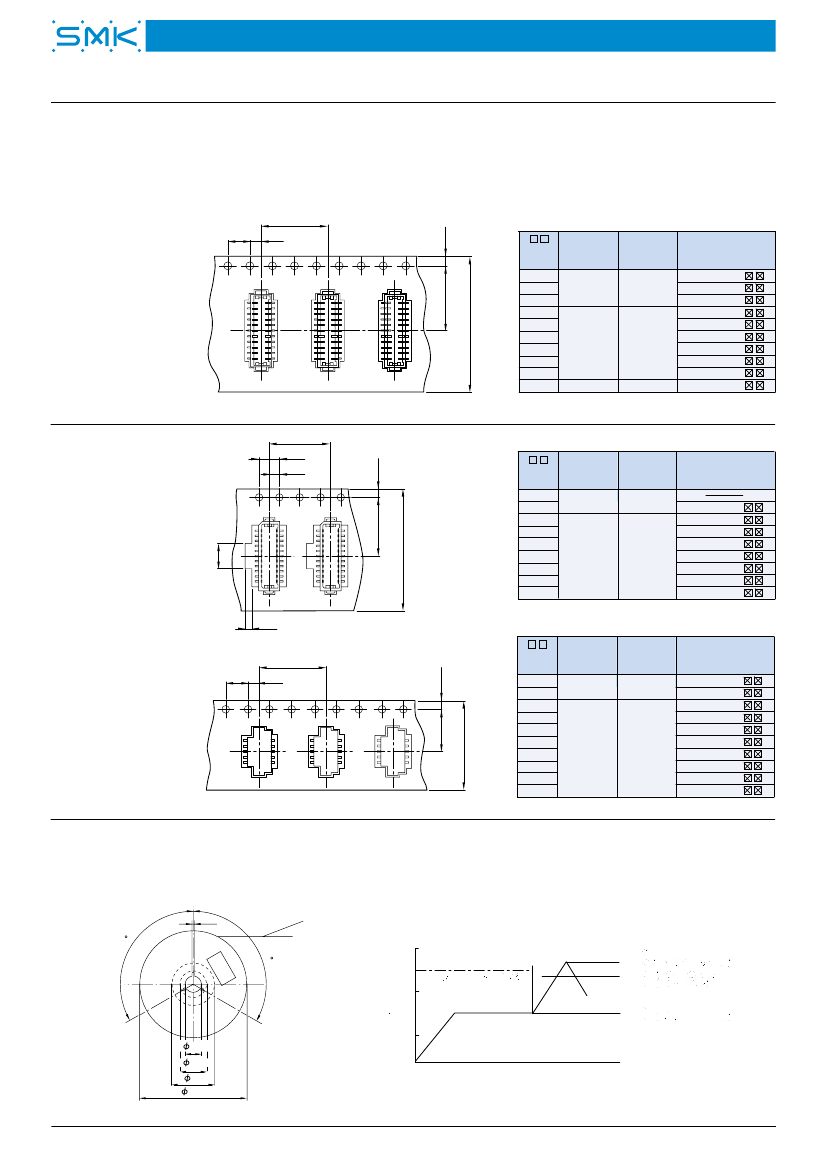

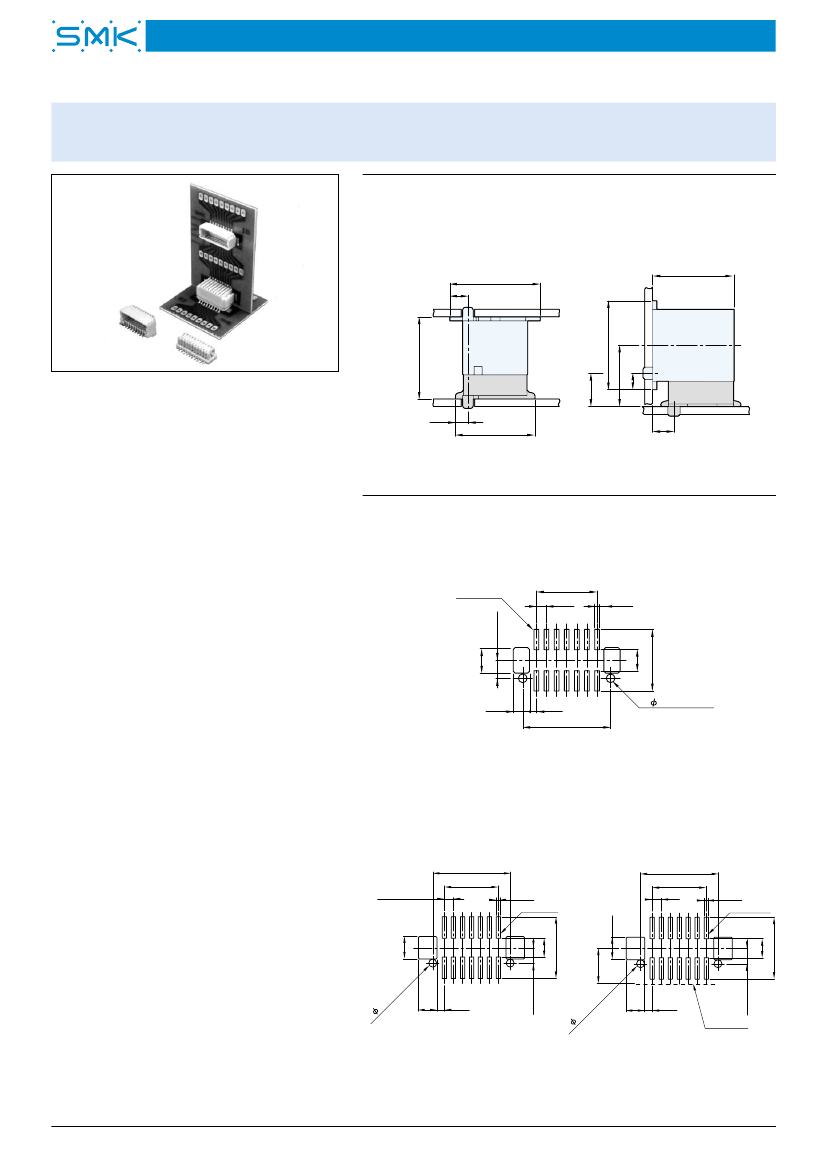

Board to Board Connector

PB-10

Series

1.0mm Spacing

Connection Diagram

嵌合図

Straight Type

5.6

1.1

Right-Angle Type

5.05

5.5

Features

1. The connectors in this series of apply to the 1.0

mm pitch SMT.

2. The series is fed also in the embossed taping

system to cope with the automatic mounter.

3. Non-pin type construction assures easy, light

insertion.

0.8

2.0

3.75

1.05

1.3

Specifications

1. Rating : 0.5A 50A AC/DC

2. Contact Resistance : 20mΩ max.

3. Insulation Resistance : 500MΩ min.at 100V DC

4. Withstanding Voltage : AC 100V for one minute

5. Operating Temperature Range : –30˚C to +85˚C

Note

Custom made models will be available upon

request.

PC Board Dimension

取付基板参考図

Socket

½ケット

Pin No.1

1.7

0.05

0.03(Spacing)

(0.5)

(2.4)

■ 特長

1. 1.0mmピッチのSMT対応ボードtoボードコネク

タです。

2. 自動マウンタ対応でエンボステーピング方式に

よる供給です。

3. ノンピンタイプ構造の採用により、½挿入性を

確保しています。

(2)

(1.6)

0.6

0.05

2- 0.8

0.05

Hole

■ 仕様

1. 定格電圧電流

2. 接触抵抗

3. 絶縁抵抗

4. 耐電

圧

5. ½用温度範囲

■ 特記

掲載以外の仕様につきましては、別途御相談下さ

い。

Straight Plug

ストレートプラグ

AC／DC50V 0.5A

20mΩ以下

DC100V 500MΩ以上

AC100V 1分間

ー30℃∼＋85℃

Right-Angle Plug

ライトアングルプラグ

0.05

0.03(Spacing)

(0.5)

Pin No.1

(2.4)

(6)

0.05

0.03

(0.5)

Pin No.1

(2.4)

(6.6)

1.7

0.05

(2)

0.8

(2)

0.8

PCB edge

1.7

0.05

max.3.6

(2)

(6.5)
