L77HDB44P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> L77HDB44P

L77HDB44P: DescriptionD Subminiature Connector, 44 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size343KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

L77HDB44P Overview

D Subminiature Connector, 44 Contact(s), Male, Solder Terminal,

L77HDB44P Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED THERMOPLASTIC POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	77HD
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0

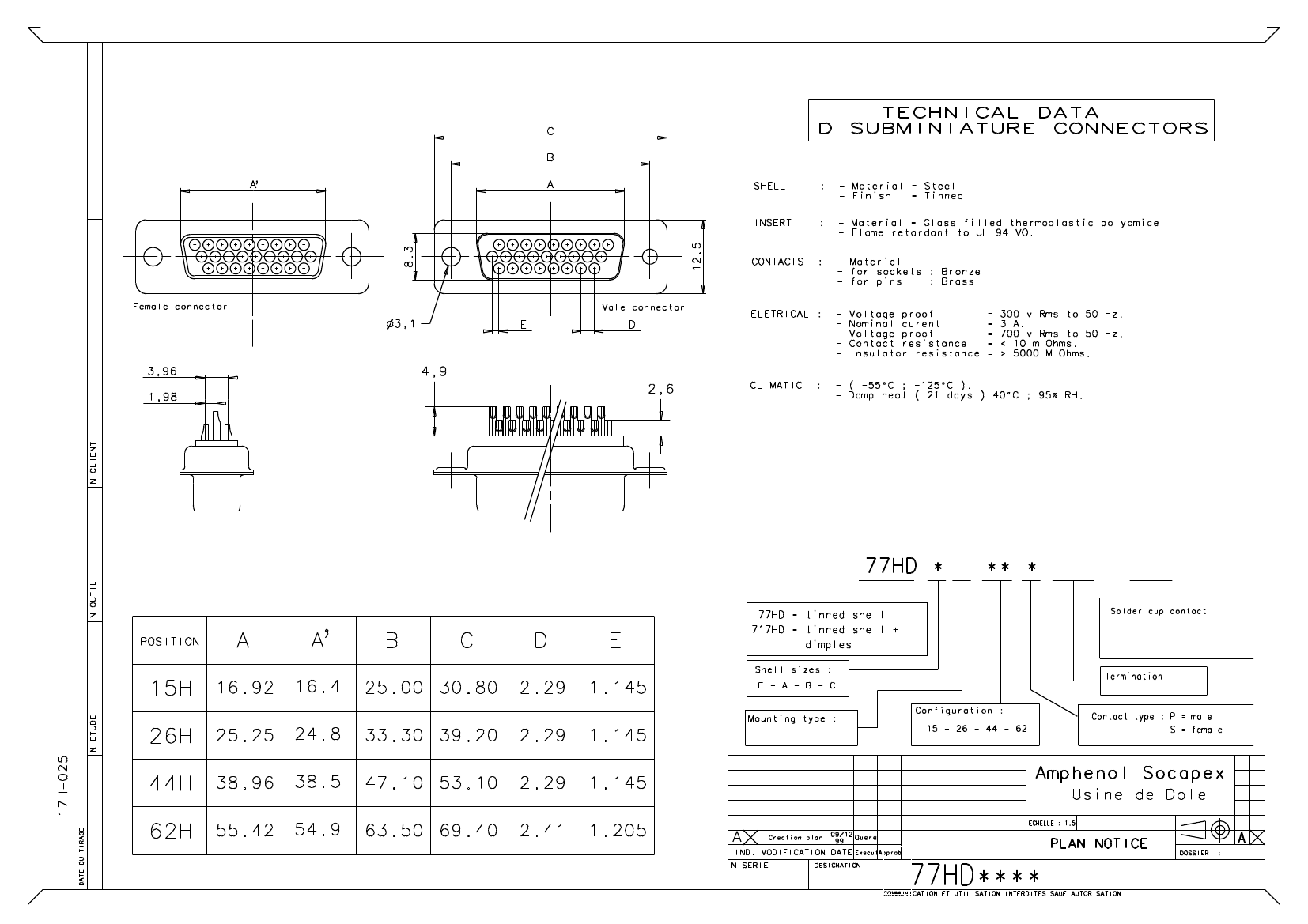

Preview

Download Datasheet

View All

L77HDB44P Related Products

	L77HDB44P	L77HDC62P	L717HDC62S	L717HDA26S	L717HDB44S	L717HDE15S
Description	D Subminiature Connector, 44 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 62 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 62 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 26 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 44 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal,
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow	unknow
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	GLASS FILLED THERMOPLASTIC POLYAMIDE	GLASS FILLED THERMOPLASTIC POLYAMIDE	GLASS FILLED THERMOPLASTIC POLYAMIDE	GLASS FILLED THERMOPLASTIC POLYAMIDE	GLASS FILLED THERMOPLASTIC POLYAMIDE	GLASS FILLED THERMOPLASTIC POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	77HD	77HD	717HD	717HD	717HD	717HD
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	4/C	4/C	2/A	3/B	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	44	62	62	26	44	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
