1210YG106ZAJ2A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 10uF, Surface Mount, 1210, CHIP; CategoryPassive components capacitor; File Size67KB，3 Pages; ManufacturerAVX

Download Datasheet Parametric Compare View All

1210YG106ZAJ2A Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 10uF, Surface Mount, 1210, CHIP

1210YG106ZAJ2A Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2013262595
package instruction	, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	10 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e0
Manufacturer's serial number	1210
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	80%
Rated (DC) voltage (URdc)	16 V
size code	1210
surface mount	YES
Temperature characteristic code	Y5V
Temperature Coefficient	-82/+22% ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

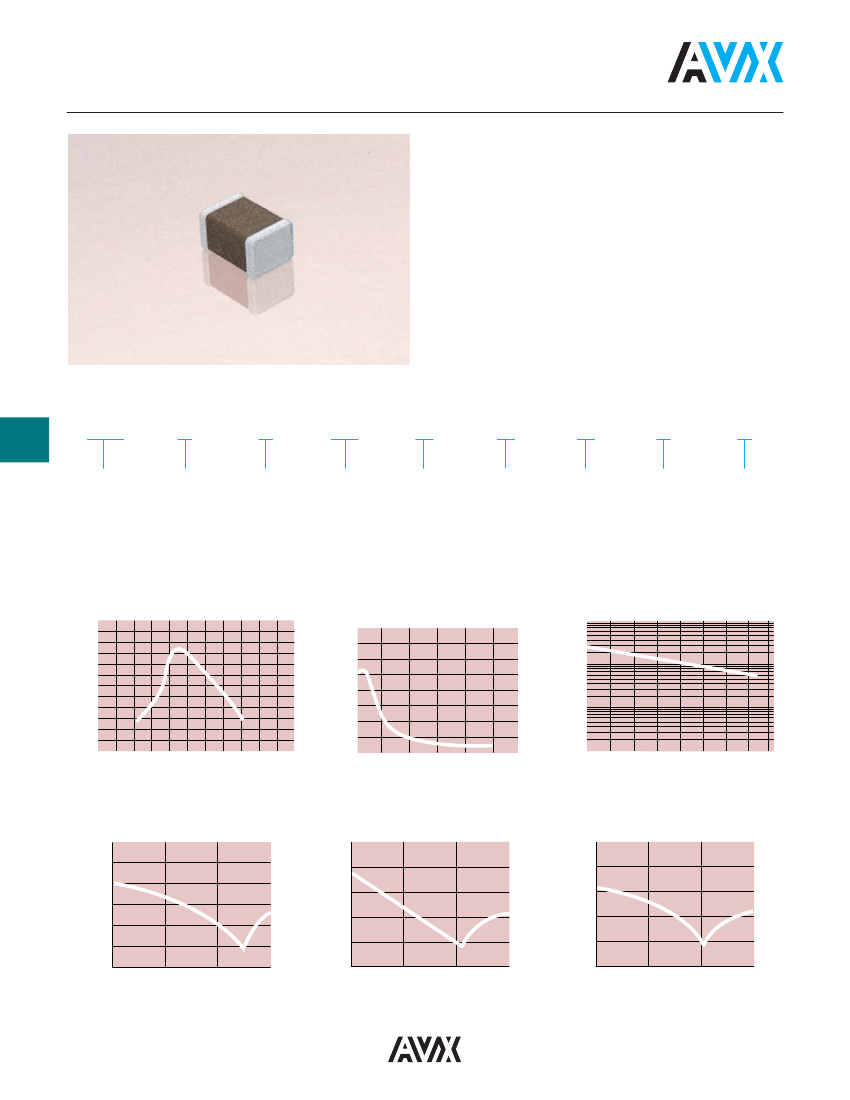

Y5V Dielectric

General Specifications

Y5V formulations are for general-purpose use in a limited

temperature range. They have a wide temperature

characteristic of +22% –82% capacitance change over the

operating temperature range of –30°C to +85°C.

These characteristics make Y5V ideal for decoupling

applications within limited temperature range.

PART NUMBER (see page 2 for complete part number explanation)

0805

Size

(L" x W")

Voltage

6.3V = 6

10V = Z

16V = Y

25V = 3

50V = 5

Dielectric

Y5V = G

104

Capacitance

Code (In pF)

2 Sig. Digits +

Number of

Zeros

Capacitance

Tolerance

Z = +80 –20%

Failure

Rate

A = Not

Applicable

Terminations

T = Plated Ni

and Sn

Packaging

2 = 7" Reel

4 = 13" Reel

Special

Code

A = Std.

Product

Insulation Resistance (Ohm-Farads)

Temperature Coefficient

+20

+10

-10

-20

-30

-40

-50

-60

-70

-80

-55

-35 -15

+5 +25 +45 +65 +85 +105 +125

+40

+20

Capacitance Change

vs. DC Bias Voltage

Insulation Resistance vs. Temperature

10,000

Capacitance

1,000

c/c (%)

-20

-40

-60

-80

-100

100

+20

+30

+40

+50

+60

+70

+80

+90

Temperature

°C

% DC Bias Voltage

Temperature

°C

0.1 F - 0603

Impedance vs. Frequency

10,000

1,000

100

0.22 F - 0805

Impedance vs. Frequency

1,000

100

1 F - 1206

Impedance vs. Frequency

|Z| (Ohms)

100

0.1

0.01

10,000

0.1

0.01

10,000

0.1

0.01

10,000

100,000

1,000,000

10,000,000

100,000

1,000,000

10,000,000

100,000

1,000,000

10,000,000

Frequency (Hz)
