CMRD2435_11 Overview

DIN rail mount

Preview

Download Datasheet

View All

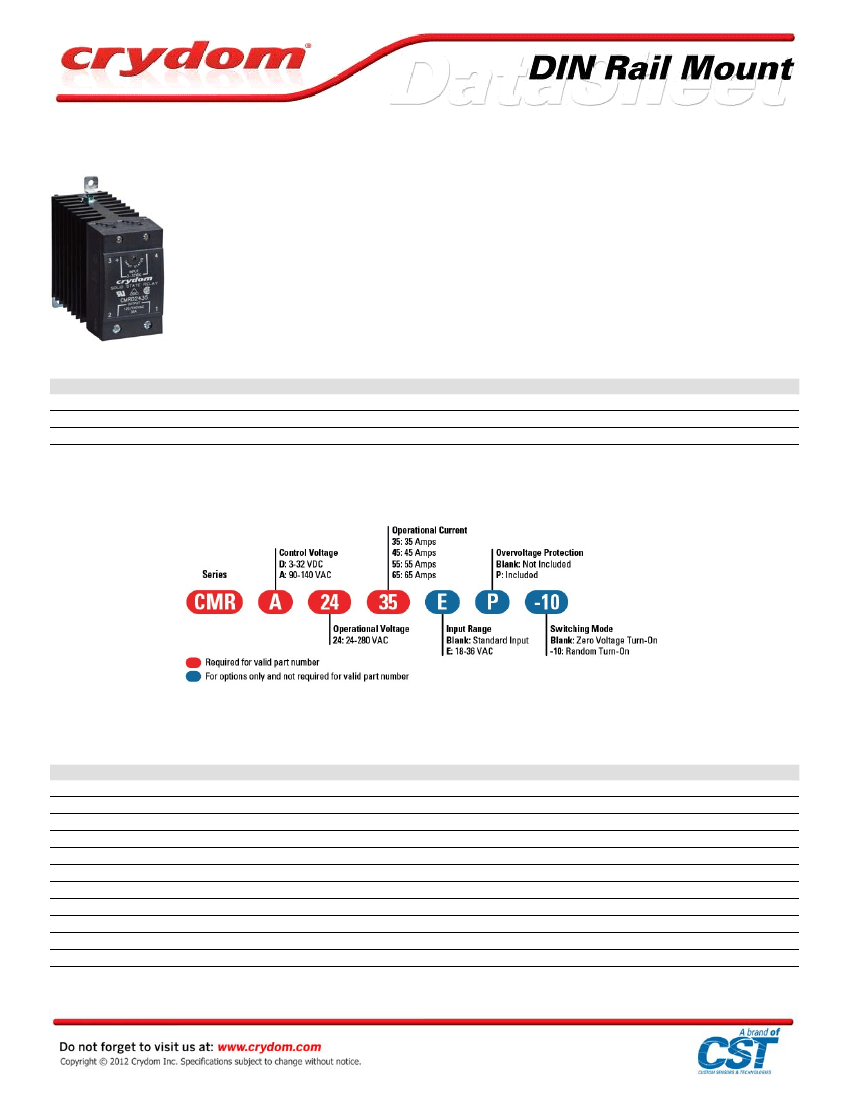

CMR24 Series

• Ratings from 35A to 65A @ 280 VAC

• 45mm (width) package

• SCR output for heavy industrial loads

• LED input status indicator

• AC or DC control

• Zero-crossing (resistive loads) or random-fire (inductive loads) output

PRODUCT SELECTION

Description

3-32 VDC Control

90-140 VAC Control

18-36 VAC Control

35 A

CMRD2435

CMRA2435

CMRA2435E

45 A

CMRD2445

CMRA2445

CMRA2445E

55 A

CMRD2455

CMRA2455

CMRA2455E

65 A

CMRD2465

CMRA2465

CMRA2465E

AVAILABLE OPTIONS

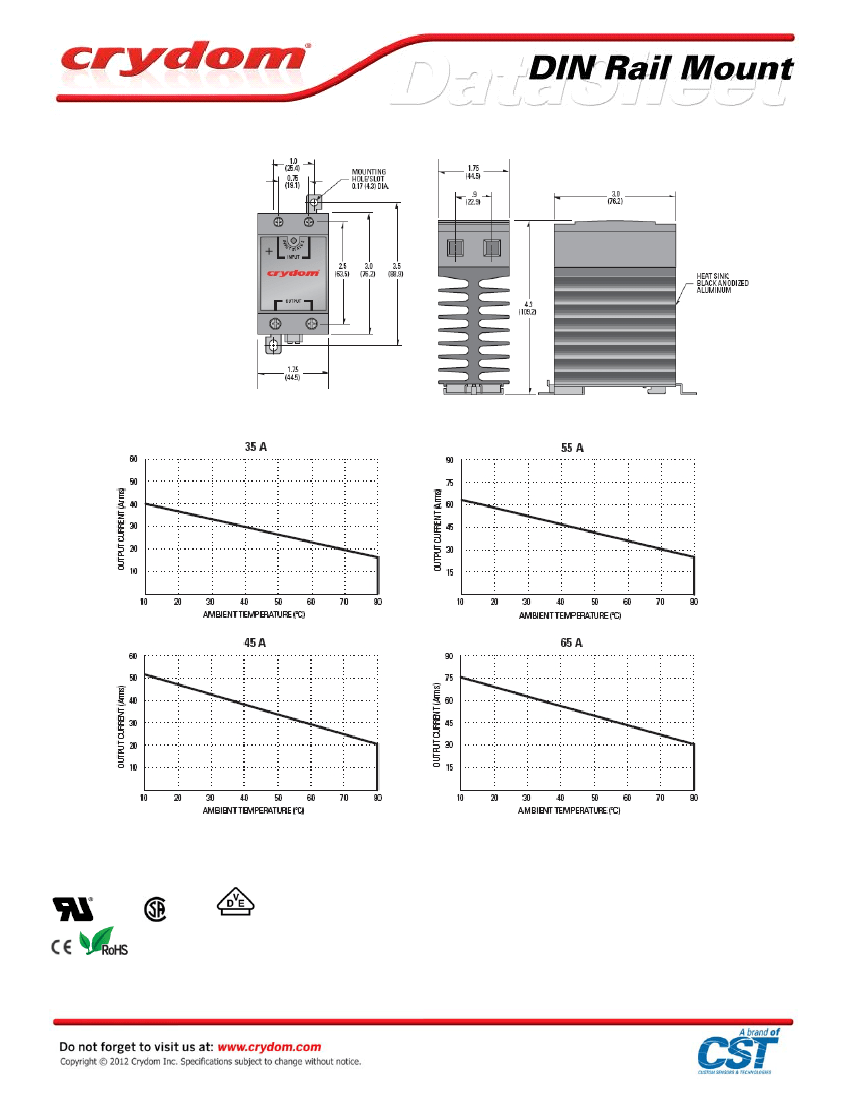

OUTPUT SPECIFICATIONS (1)

Description

Operating Voltage (47-63Hz) [Vrms]

Transient Overvoltage [Vpk]

Maximum Off-State Leakage Current @ Rated Voltage [mArms]

Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)

Maximum Load Current [Arms]

Minimum Load Current [Arms]

Maximum 1 Cycle Surge Current (50/60Hz) [Apk]

Maximum On-State Voltage Drop @ Rated Current [Vpk]

Thermal Resistance Junction to Case (Rjc) [°C/W]

Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]

Minimum Power Factor (with Maximum Load)

35A

24-280

600

500

0.15

239/250

1.6

1.02

285/259

0.5

45A

24-280

600

500

0.15

597/625

1.6

0.63

1779/1621

0.5

55A

24-280

600

500

0.25

954/1000

1.6

0.31

4555/4150

0.5

65A

24-280

600

500

0.25

1145/1200

1.6

0.28

6560/5976

0.5
