UBJ110-027: DescriptionFEMALE, RF CONNECTOR, JACK; CategoryThe connector The connector; File Size523KB，2 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

UBJ110-027 Overview

FEMALE, RF CONNECTOR, JACK

UBJ110-027 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Objectid	1910269465
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	180125053
Other features	STANDARD: IEC 169-13
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	110
Installation method	STRAIGHT
Maximum operating frequency	3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.22

Preview

Download Datasheet

View All

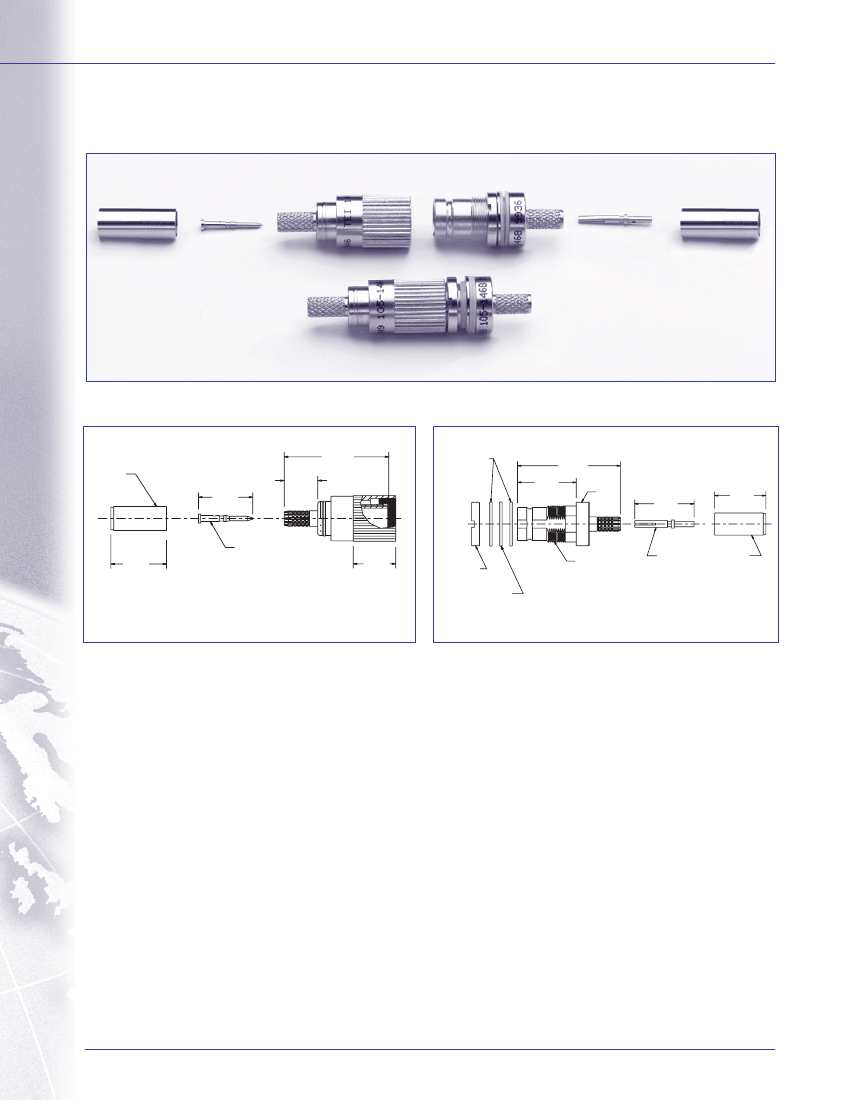

TRUE 75 OHM COAXIAL 1.6/5.6 DIN CONNECTORS

CENTRAL OFFICE product solutions - all true 75 ohm

.939

±.015

CRIMP

SLEEVE

.488

.300

INSULATOR

WASHERS

.573

1.003

±.010

BODY

ASSY

.579

.500

CONTACT

.380

LOCK NUT

SUPPORT

RING

M9 X 0.50

SOCKET

CONTACT

CRIMP

SLEEVE

RF COAXIAL 75 OHM DIN THREADED FULL CRIMP CABLE PLUG

RF COAXIAL CONNECTOR, 75 OHM, DIN JACK

THREADED CONNECTOR. MEETS REQUIREMENTS

OF IEC 169-13.

UPL110-XXX*

UBJ110-XXX*

Time is money and so is space when you’re talking about

working area in a central office, CLEC or Co-location

space. These applications are looking for more equipment

in a small compact working space. Being able to provide

more throughputs in a given panel or bay is becoming

more important to OEM designers of telco hardware.

Trompeter’s 110 series connectors are made to the DIN

1.6/5.6 interface specification. This connector style is used

in the European and South American Telecom Central

Offices for DSX cross connects and beginning to be used

and requested in the North American market.

Trompeter’s 110 series connectors are 30% smaller than

the standard BNC currently used for the Coax Central

Office termination. With this space savings 72 intercon-

nects can be placed in the same 1 rack unit panels as 52

BNCs.

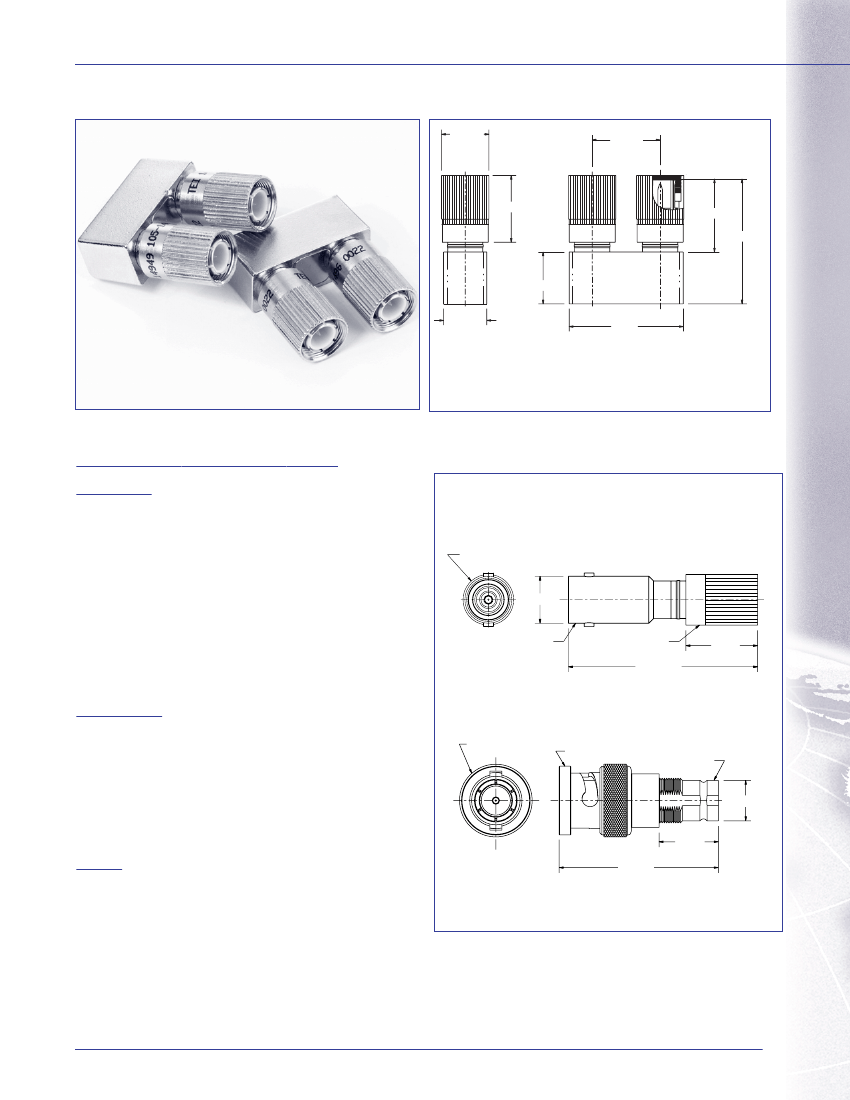

The 110 series of connectors is available as a cable plug,

cable jack, a U-Link for connecting two jacks, a right angle

circuit board jack, and BNC to DIN adapters.

Trompeter’s 110 series works with all the cables currently

in use in the central office environment and, just as all

Trompeter connectors, can be manufactured to accommo-

date any coax cable changes.

The 110 series 1.6/5.6 DIN connectors have the same supe-

rior quality performance are 220 series of telco standard

BNCs. Tooling for the Trompeter DIN series is the same as

used for the Trompeter 220 series - see installer tooling sec-

tion of this catalog.

Note: *

= For specific cable manufacturer and model number

cable group information please see the cable group table in this

catalog.

XXX - Refer to pages 6-7 for Cable Groups.

TROMPETER ELECTRONICS

(800) 982-2629 • (818) 707-2020 • FAX (818) 706-1040
