306DCN2R7M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 306DCN2R7M

306DCN2R7M: DescriptionVery fast charge/discharge High power density IEC 62391 compliant; CategoryPassive components capacitor; File Size359KB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance

Download Datasheet Parametric View All

306DCN2R7M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	306DCN2R7M	-	-	View	Buy Now

306DCN2R7M Overview

Very fast charge/discharge High power density IEC 62391 compliant

306DCN2R7M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	30000000 µF
Capacitor type	ELECTRIC DOUBLE LAYER CAPACITOR
JESD-609 code	e3
Manufacturer's serial number	DCN
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Maximum operating temperature	65 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
positive tolerance	20%
Rated (DC) voltage (URdc)	2.7 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

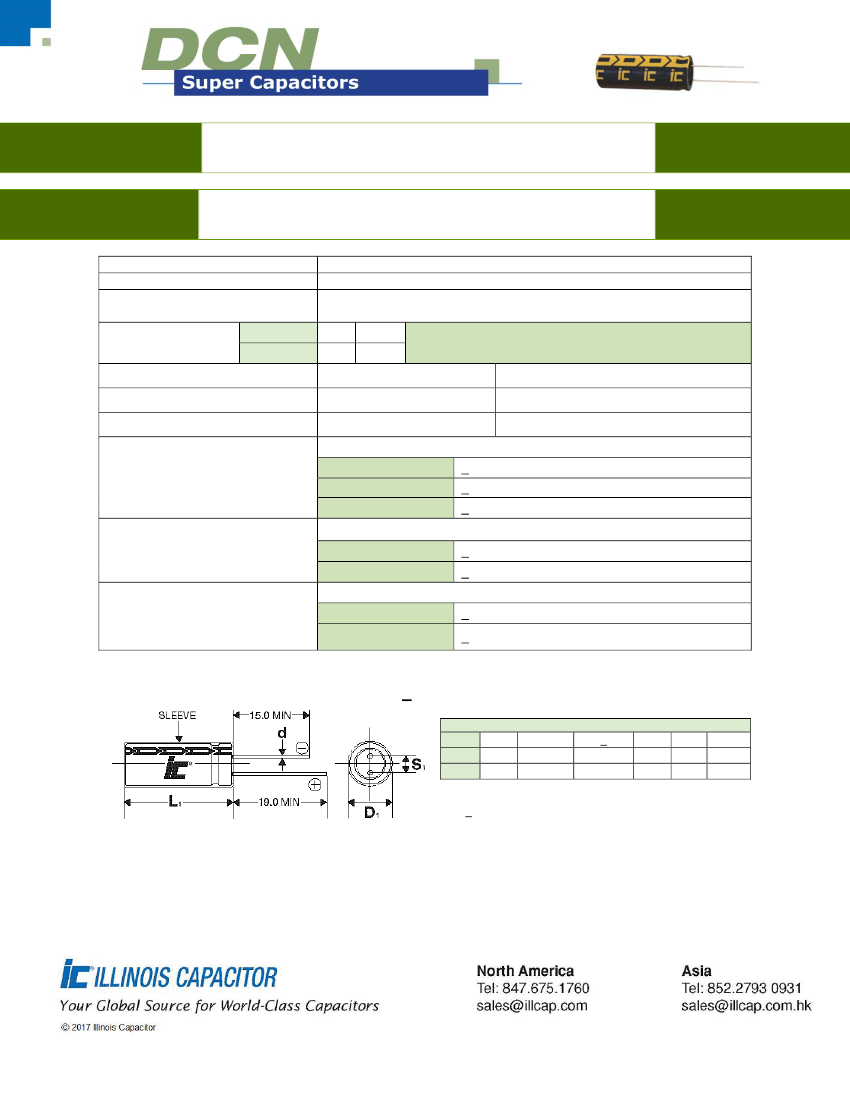

FEATURES

APPLICATIONS

Very fast charge/discharge

–

High power density

–

IEC 62391

compliant

–

Circuit board mountable

Battery backup/ alternative

–

Pulse power

–

Energy harvesting

–

LED

Displays

–

Mechanical actuators

–

Audio systems

-40°C to +60°C

-40°C to +70°C

+30%/-10% (Q tolerance), +20%/-20% (M tolerance)

+10%/-10% (K tolerance), +50%/-20% (S tolerance)

5.5

5.7

1 second discharge to ½ WVDC

5 second discharge to ½ WVDC

72 hours,25°C

Operating Temperature Range

Storage Temperature

Capacitance Tolerance

@ 20°C

WVDC

Surge Voltage

SVDC

Maximum Current

Operating Current

Leakage Current

Life Time

2.7

2.8

See standard part listing

Capacitance change

ESR

Leakage current

1000 hours with rated voltage applied at 60°C

+30% of initially measured values

<200% of initially specified values

< specified maximum value

+30% of initially measured values

<200% of initially specified values

1000 hours with no voltage applied at 60°C

Shelf Life

Life Cycles

( 25°C) 1 cycle= Charge to WVDC for

20s, constant voltage charging for

10s, discharge to ½ WVDC for 20s,

rest for 10 s

Capacitance change

ESR

Capacitance change

ESR change

500,000 cycles

+30% of initially measured values

<200% of initially specified values

D < 18mm

1.5

0.45

=L+1.5mm

=D+05mm

=S+0.5mm

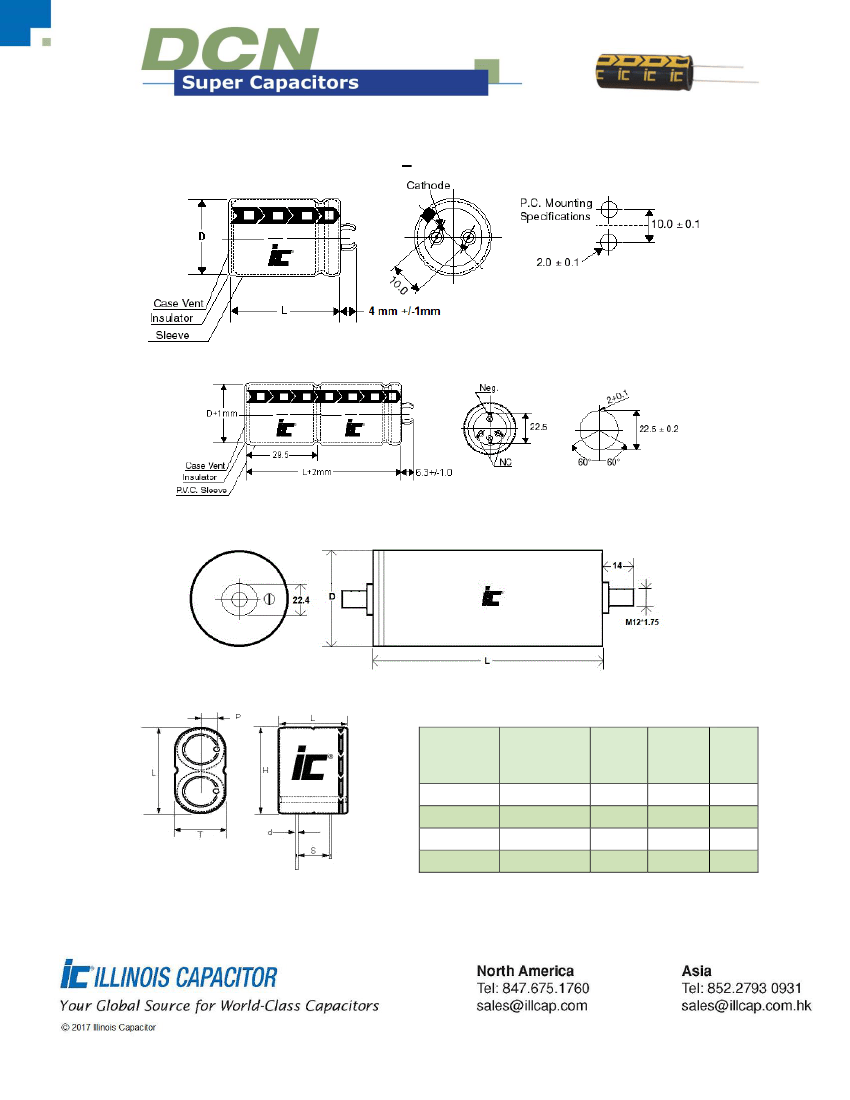

Lead spacing VS. Case diameter

8(L<20)

8(L>20)

3.5

5.0

7.5

0.5

0.6

0.8

7.5

0.8

Aug-17
